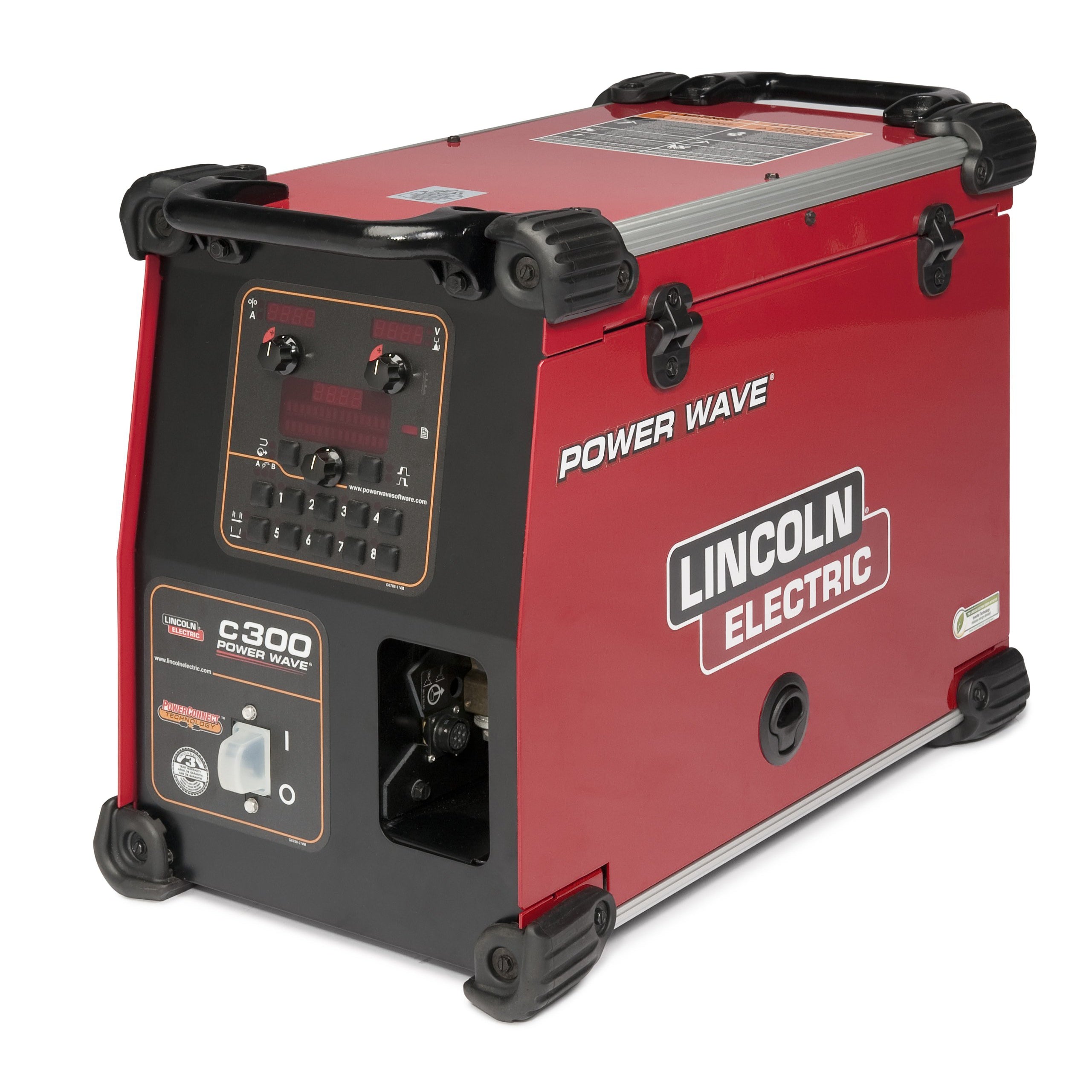

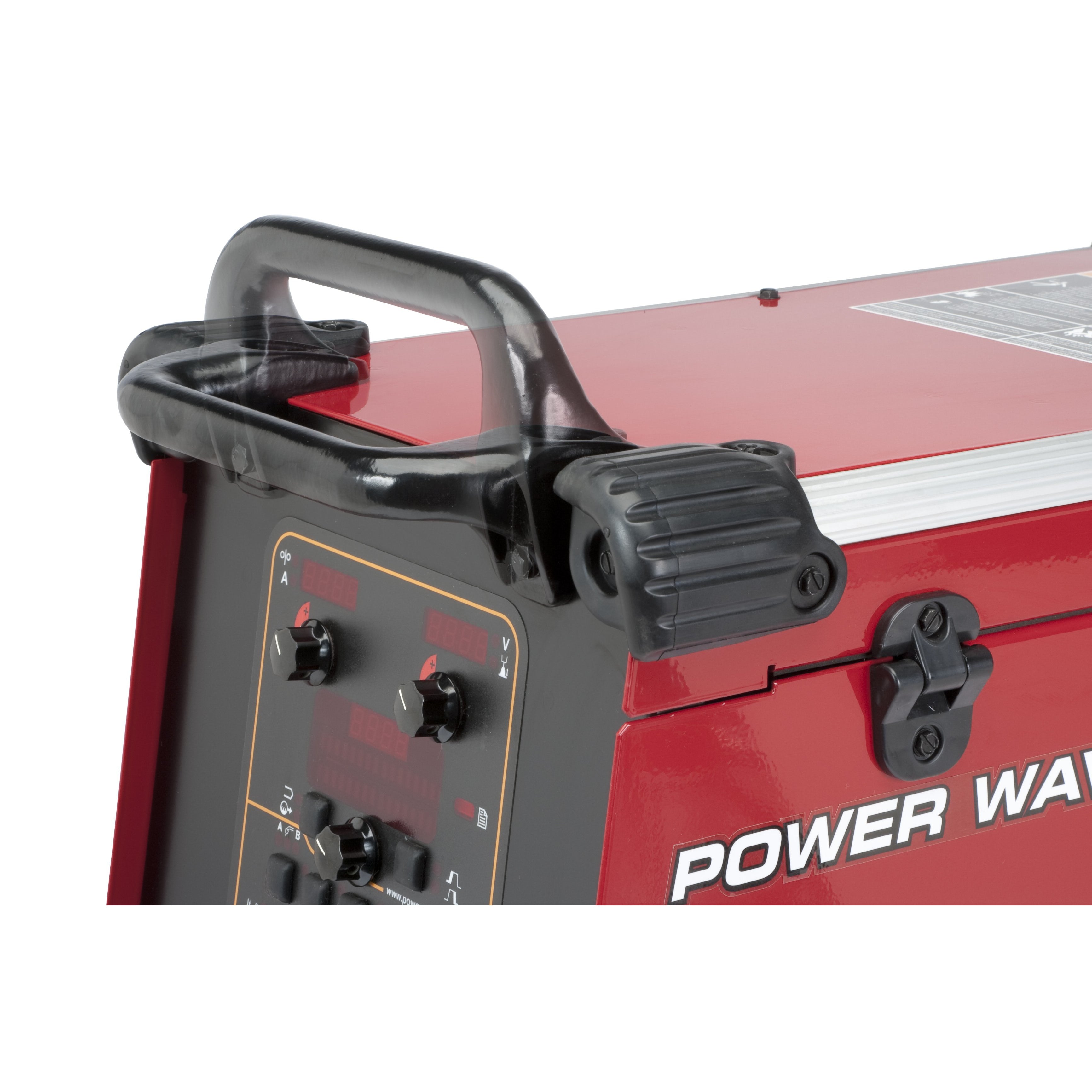

The Lincoln Power Wave 300C is an amazing portable multi-process wire feeder welder. It offers high - end features and can handle Stick, DC TIG, MIG, Pulsed MIG, and Flux - Cored welding. Ideal for various materials like aluminum, stainless, and nickel where arc performance matters a lot. It's perfect for production welding, general fabrication, construction, and educational training. Its compact design allows it to fit into almost any environment, giving you a flexible welding system to take anywhere. Key features include Lincoln Electric's Universal 12 - pin remote connector for using multiple remote devices. New reversible handles protect controls and make two - person handling easier. A second solenoid is included for TIG or spool gun operation. The new K2734 - 2 Understorage Cart is modified for additional gas fitting. Advantage Lincoln features include PowerConnect Technology that automatically adjusts to input power from 200 - 600V, 50 or 60 Hz, single or three - phase. The Tribrid Power Module offers great welding performance with high power factor and efficiency. Production Monitoring 2 helps track usage and analyze welding efficiency. iARC Digital Controls ensure arc stability and come with a standard Ethernet connection. The compact and durable case is IP23 rated. Welding processes supported are Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, and Flux - Cored. The package includes the K2675 - 2 base unit, K2734 - 2 understorage cart, and many other useful items.
Using the Lincoln Power Wave 300C is quite straightforward. First, connect it to the appropriate power source. Thanks to the PowerConnect Technology, it can automatically adjust to different power inputs. For different welding processes like Stick, DC TIG, MIG, etc., select the right settings according to the material you're welding, such as aluminum, stainless, or nickel. When handling the machine, use the new reversible handles to move it easily, especially with a second person. If you want to use remote control devices, connect them via the Universal 12 - pin remote connector. When using the TIG or spool gun, make sure the second solenoid is functioning properly. As for the understorage cart, use the K2734 - 2 model as the previous one won't work with the new base unit. Regarding maintenance, keep the machine in a dry place as it's IP23 rated but still avoid extreme moisture. Regularly check the connections of all included items like the torch, gun, and cables. Also, use the Production Monitoring 2 feature to track the machine's usage and identify if there are any issues early on.
