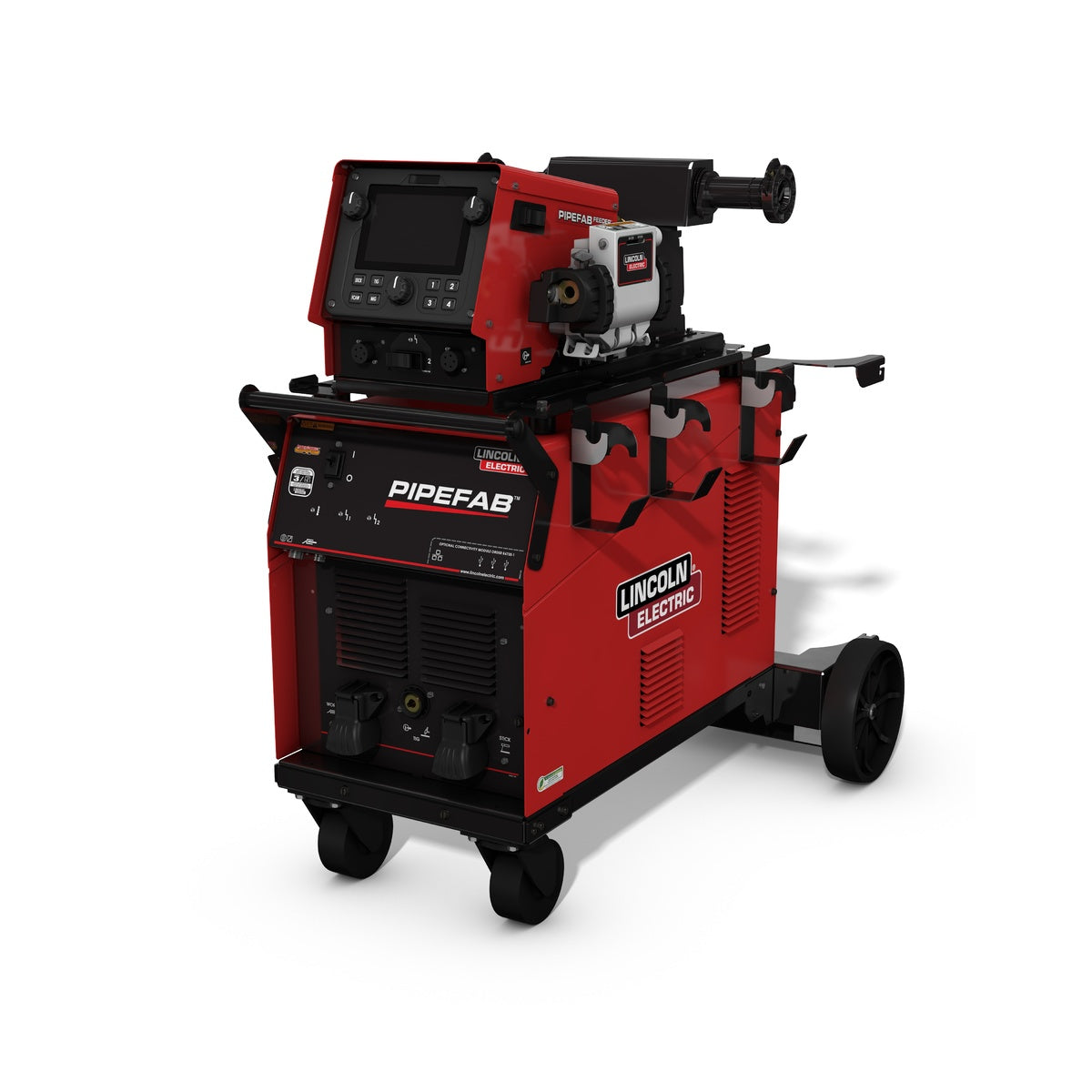

Lincoln PIPEFAB Power Source - K3731-1

Description

Revolutionary Arc Performance

• Enhanced STT® root pass solution offers faster travel speeds and better stability.
• Smart Pulse™ Technology ensures improved stability and precise puddle control.
• Optimized processes for pipes and vessels include Stick, DC TIG (HF & Touch Start), MIG, Pulsed MIG, STT®, and Flux-Cored.

Exceptional Simplicity

• One-button process changes make operation a breeze.
• Straightforward navigation is easy to understand.
• Memory buttons allow quick recall of preferred settings.
• ArcFX™ Technology provides visual feedback on arc settings.

Industry-Driven Design

• No need to swap cables with dedicated, electrically isolated process outputs.
• PowerConnect® Technology offers 200v - 600v input power flexibility.

Top Features:

• Outstanding arc performance from start to finish.
• Digital navigation for ultimate simplicity.
• Customer-driven design tailored for Pipe & Vessel Fabrication.

Input Power

• 200/208/220/230/380/400/415/460/575 / 3 / 50 / 60

Processes

• MIG, TIG, Stick, Pulsed, Flux-Cored, & STT.

Included with Product

• PIPEFAB™ Power Source
• PIPEFAB™ Feeder
• PIPEFAB™ Cart & Dual Bottle Rack
• Magnum® PRO Curve™ 200 15FT Ready-Pak
• Magnum® PRO Curve™ 300 15FT Ready-Pak
• Magnum® PRO .035” & .045” Tapered Contact Tip (Qty 1 ea)
• Magnum® PRO 3/8” Tapered-Flush & 1/2” Flush Nozzles (Qty 1 ea)
• .035”/.045” V Groove Drive Roll Kits (4 Roll Kit - Qty 2)
• .045' Knurled Drive Roll Kit (4 Roll Kit)
• Harris® Flowmeter & Hoses
• Brass Inlet Gas Y Fitting
• 15FT 2/0 Work Lead & GC500 Clamp
• PIPEFAB™ Feeder Screen Protector (optional use)

Specifications

Click to view the Spec Sheet.

Info Video

Using this Lincoln PIPEFAB power source is quite straightforward. First, connect it to a suitable power supply within the specified input power range (200 - 600v). Then, choose the appropriate process like MIG, TIG, or Stick based on your needs. You can change processes with just one button. For setting up, use the easy - to - understand navigation to adjust settings or use the memory buttons to quickly recall your preferred ones. When it comes to the included accessories, make sure to install them correctly. For example, attach the feeder and the proper contact tips and nozzles for the welding wire. As for maintenance, keep the power source clean and free from dust. Check the cables regularly for any signs of wear or damage. If you're not using the feeder screen protector, store it safely. Always follow the safety instructions in the spec sheet to ensure safe operation.
