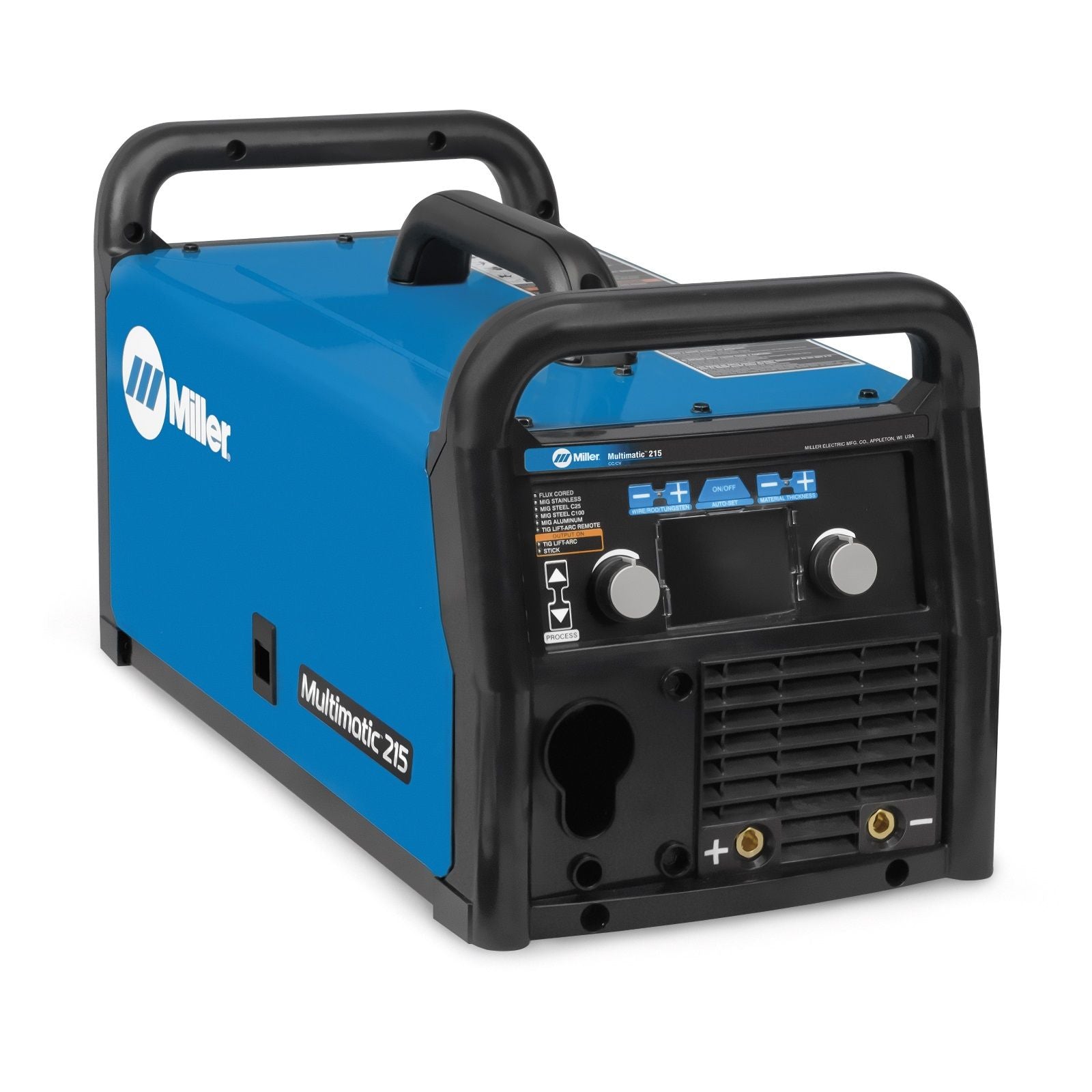

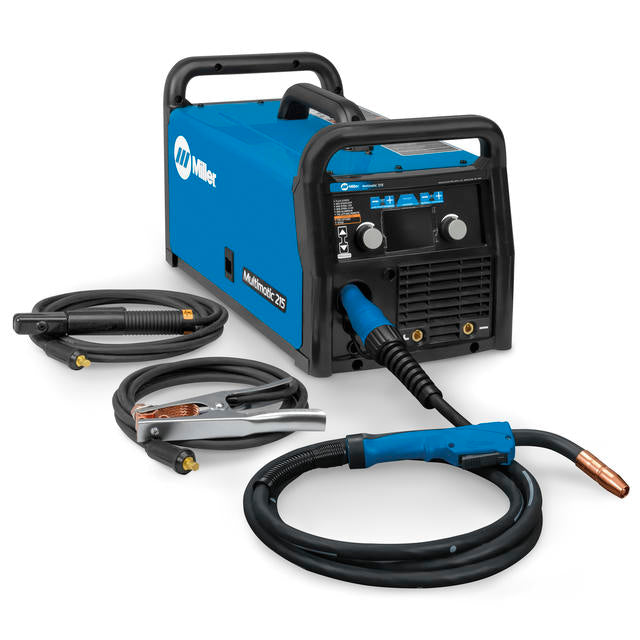

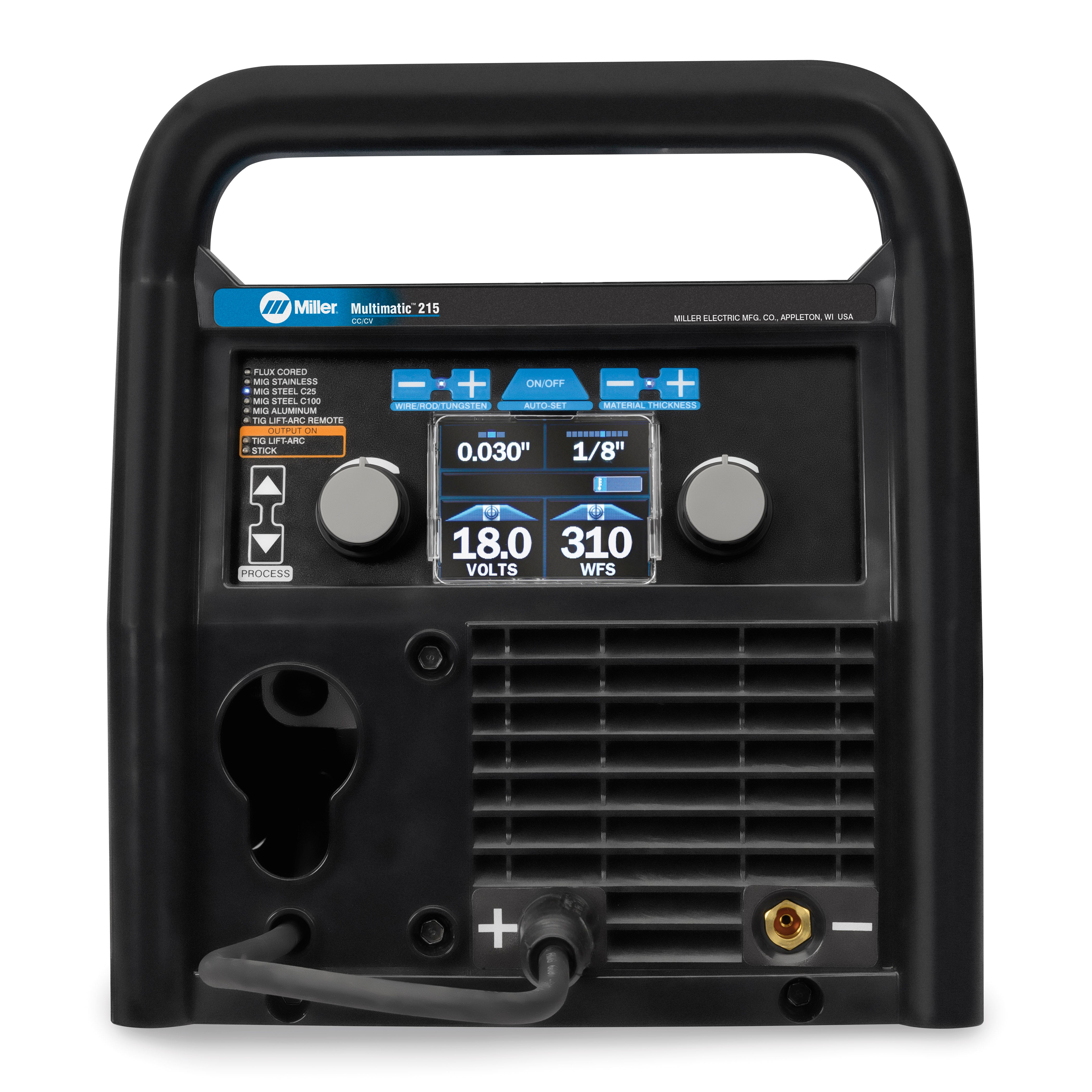

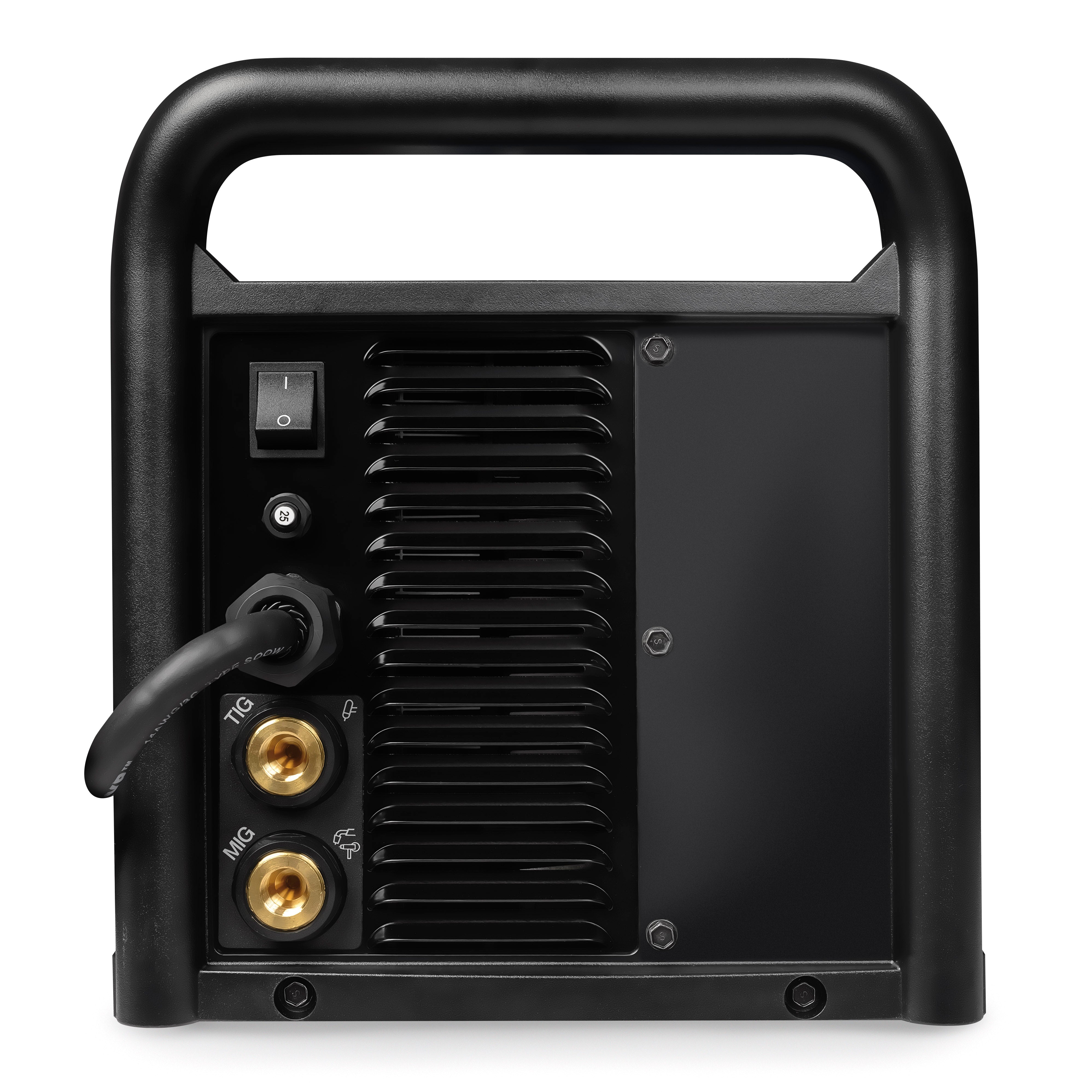

The Miller Multimatic 215 is a top - notch all - in - one welder. It's super easy to use and extremely versatile, perfect for MIG, Stick, and DC TIG welding. This welder helps you build your welding skills. It features an LCD color screen with Auto - Set Elite, letting you fine - tune settings on multiple materials and processes. You can connect it to 120 or 240 volt input power, which makes it highly mobile as it can plug into a common 120 receptacle. It can weld up to 3/8' mild steel. With multiprocess capabilities including MIG, flux - cored, DC stick, and DC TIG, it expands your welding skills. There are two gas connections on the back, one for MIG and one for TIG, making setup a breeze. The inverter technology combines great arc characteristics with the portability of a 38 - pound machine. The arc is forgiving to variations in length and travel speed. Smooth - Start provides spatter - free MIG starts. The Fan - On - Demand cooling system runs only when needed, reducing noise, energy use, and contaminants. It shuts down when airflow is blocked or duty cycle is exceeded, keeping you safe and protecting the machine. It's generator compatible with 10000 Watt or higher generators. Auto Spool Gun Detect automatically detects the connected gun. The angled drive system with Quick Select drive roll offers multiple grooves for different wires. The Multi - Voltage Plug allows easy connection to 120 or 240 V power without tools. Thermal overload protection automatically shuts down the power source if needed. The TIG Kit, shielding gas, safety equipment, and spool gun for aluminum welding are sold separately. The product comes with a power source, power cord, MIG gun, electrode holder, work cable, flow gauge regulator, wire spool, contact tips, drive roll, material thickness gauge, and cord wraps. Baker's Bundle includes machine cover, consumable kit, welpers, welding wire, and wire brush. Optional bundles and accessories can be added from the drop - down menu.
Using the Miller Multimatic 215 is easy. First, decide on the welding process you want to use - MIG, Stick, or DC TIG. Then, connect the welder to a 120 or 240 volt power source using the Multi - Voltage Plug. If you're using MIG or TIG, connect the appropriate gas to the gas connections on the back. For MIG welding, select the right wire using the Quick Select drive roll. The Auto - Set Elite on the LCD color screen can help you set up the right parameters. When starting MIG welding, the Smooth - Start feature will give you a spatter - free start. Remember, the Fan - On - Demand cooling system will run when the machine needs it. If the airflow is blocked or you exceed the duty cycle, the machine will shut down to protect itself. This is a safety feature, so don't try to override it. When using with a generator, make sure it has an output of 10000 Watt or higher for full output. After each use, clean the machine to remove any welding debris. Check the cables and connections regularly for any signs of wear or damage. If you're not using the TIG kit, don't forget that it's sold separately. Also, always wear proper safety equipment like gloves and goggles. And don't forget to add optional bundles and accessories from the drop - down menu to enhance your welding experience.
