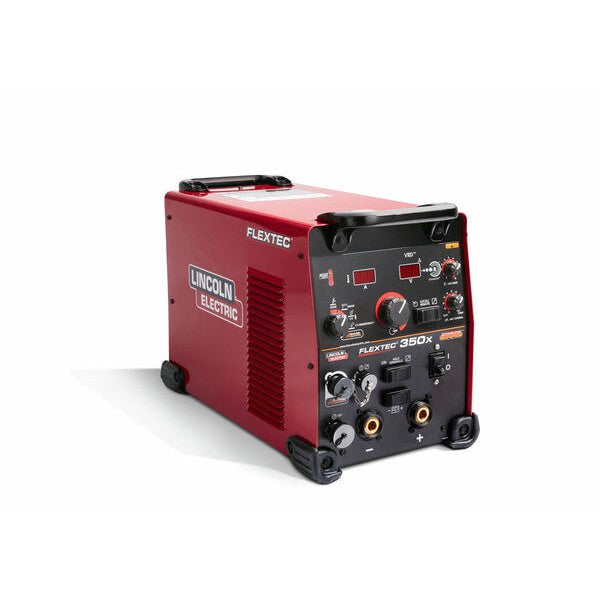

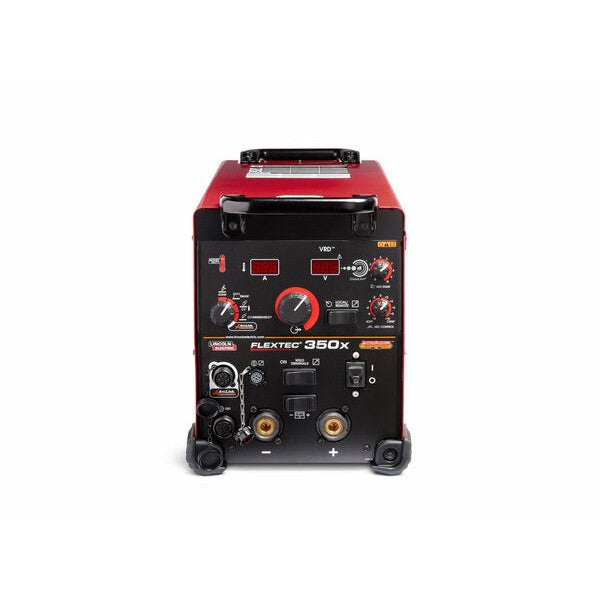

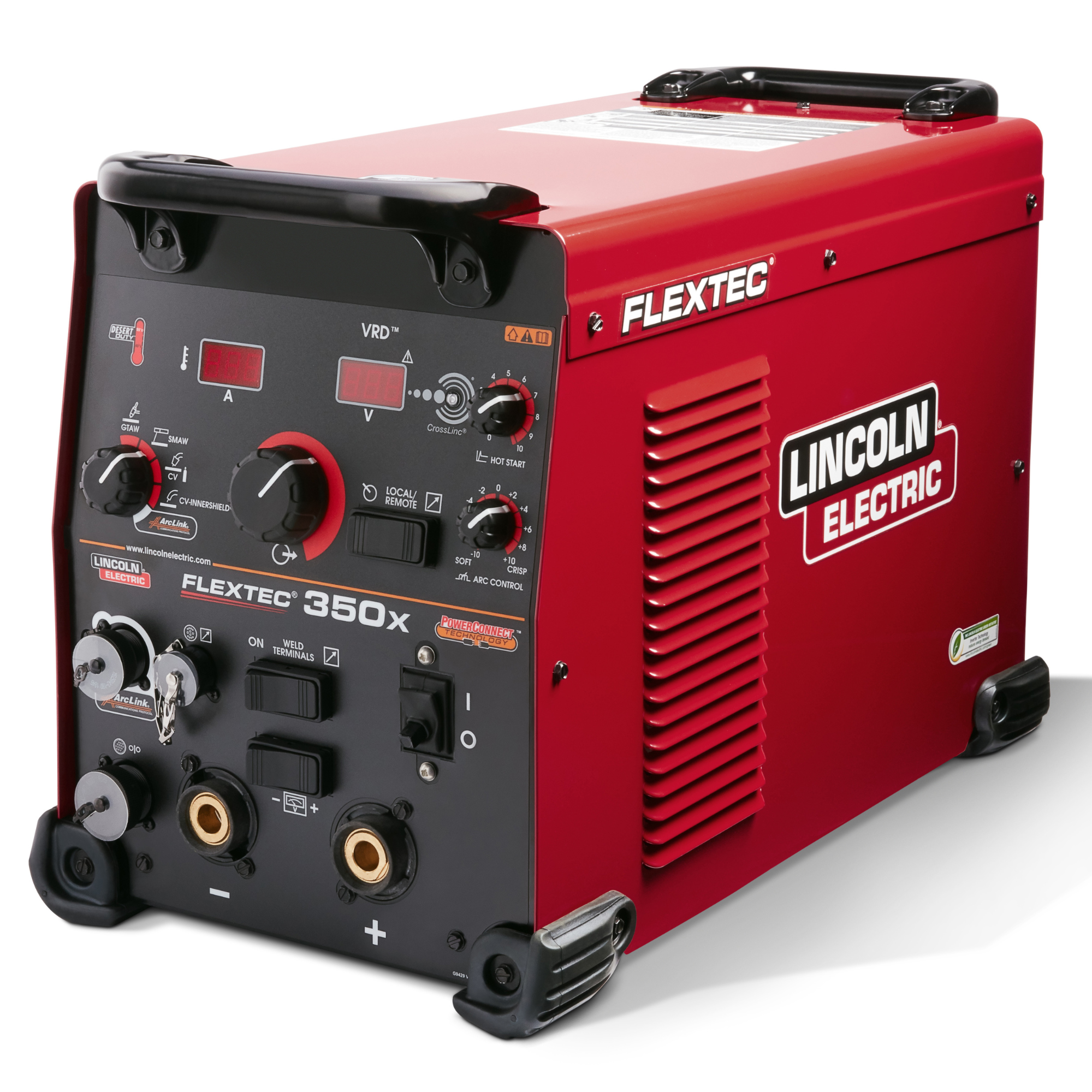

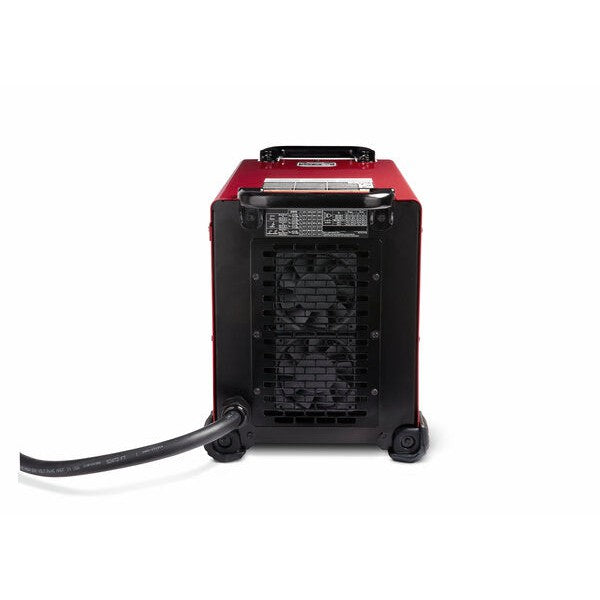

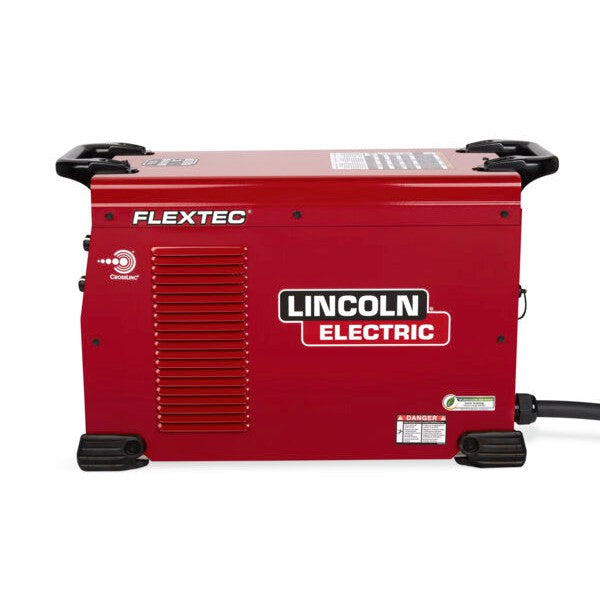

The Lincoln Flextec 350X PowerConnect welding machine is a simple, reliable, and flexible solution. Like other 350X models, it supports multiple welding processes including Stick, TIG, pulsed, and CV MIG, as well as arc gouging. This machine can handle input voltages from 200V to 600V, single or 3 - phase. It automatically detects the incoming voltage and adjusts itself, eliminating the need for manual reconnection. CrossLinc Technology comes standard, working with all Lincoln CrossLinc accessories. The processes it supports are MIG (GMAW), Flux - Cored (FCAW), DC TIG (GTAW), Stick (SMAW), Air - Carbon Arc Gouging (CAC - A). Pulse is available on Flextec 350XP and PowerConnect models when paired with an Arclink - capable feeder, and STT Field is available on the Flextec 350X PowerConnect only when paired with the Activ8X Pipe wire feeder. The power source includes an 8.5ft 4 - conductor/8 AWG input power cable. Its features include automatic connection to 200 - 575VAC incoming voltage, built - in pulse programs for various materials, ultimate process and feeder flexibility, and proven reliability tested in extreme environments.
Using the Flextec 350X PowerConnect is straightforward. First, connect the power cable to a suitable power source. The machine will automatically detect the incoming voltage, so you don't need to worry about manually adjusting it. For different welding processes, select the appropriate setting according to the type of metal and the process you want to use, like MIG, TIG, etc. When using pulse or STT Field, make sure to pair the machine with the right feeder as specified. As for maintenance, keep the machine clean and free from dust and debris. Check the power cable regularly for any signs of damage. Store it in a dry place when not in use. If you're operating in extreme environments, be aware that although the machine is tested for such conditions, extra care might be needed. Avoid overloading the machine and follow the recommended usage guidelines for best performance.
