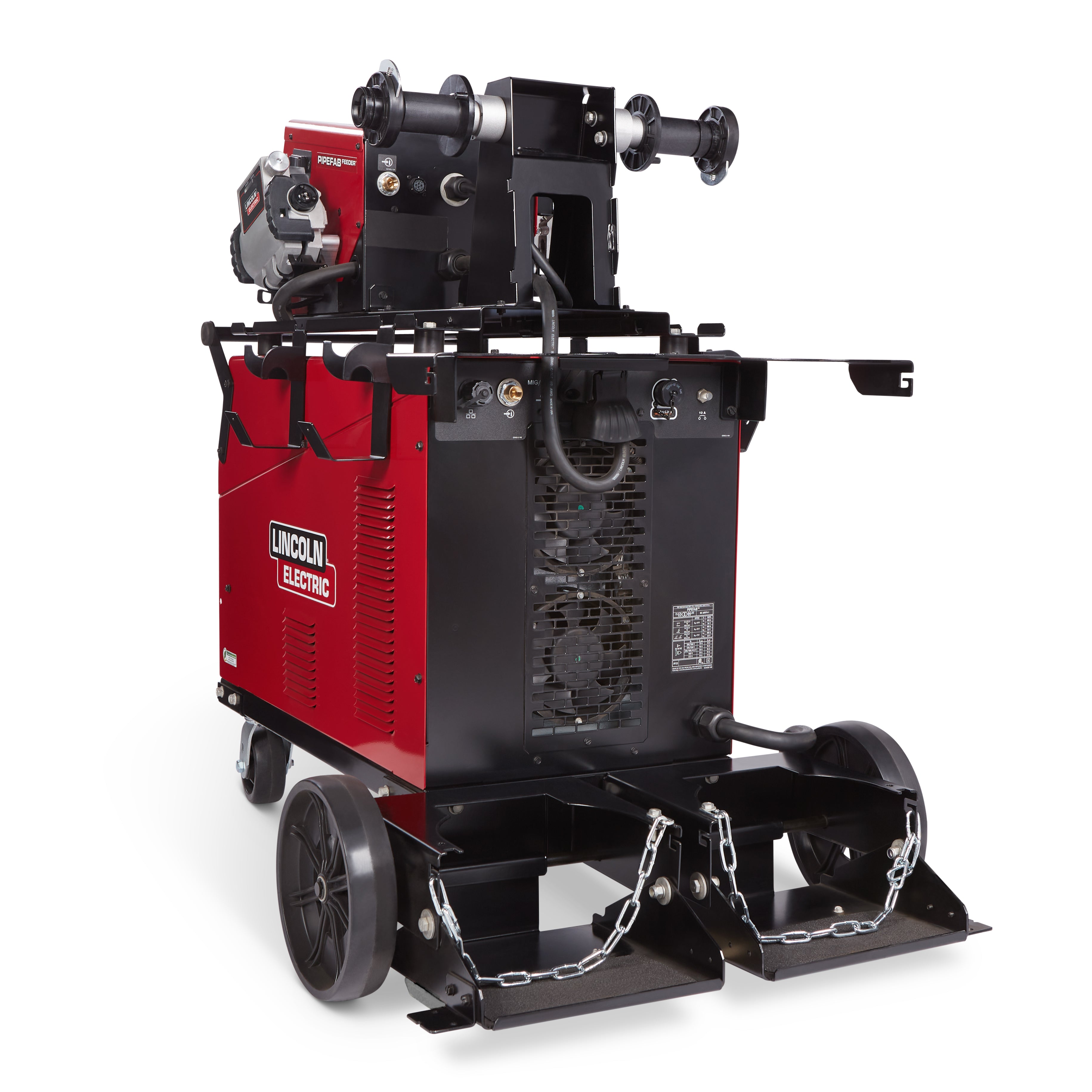

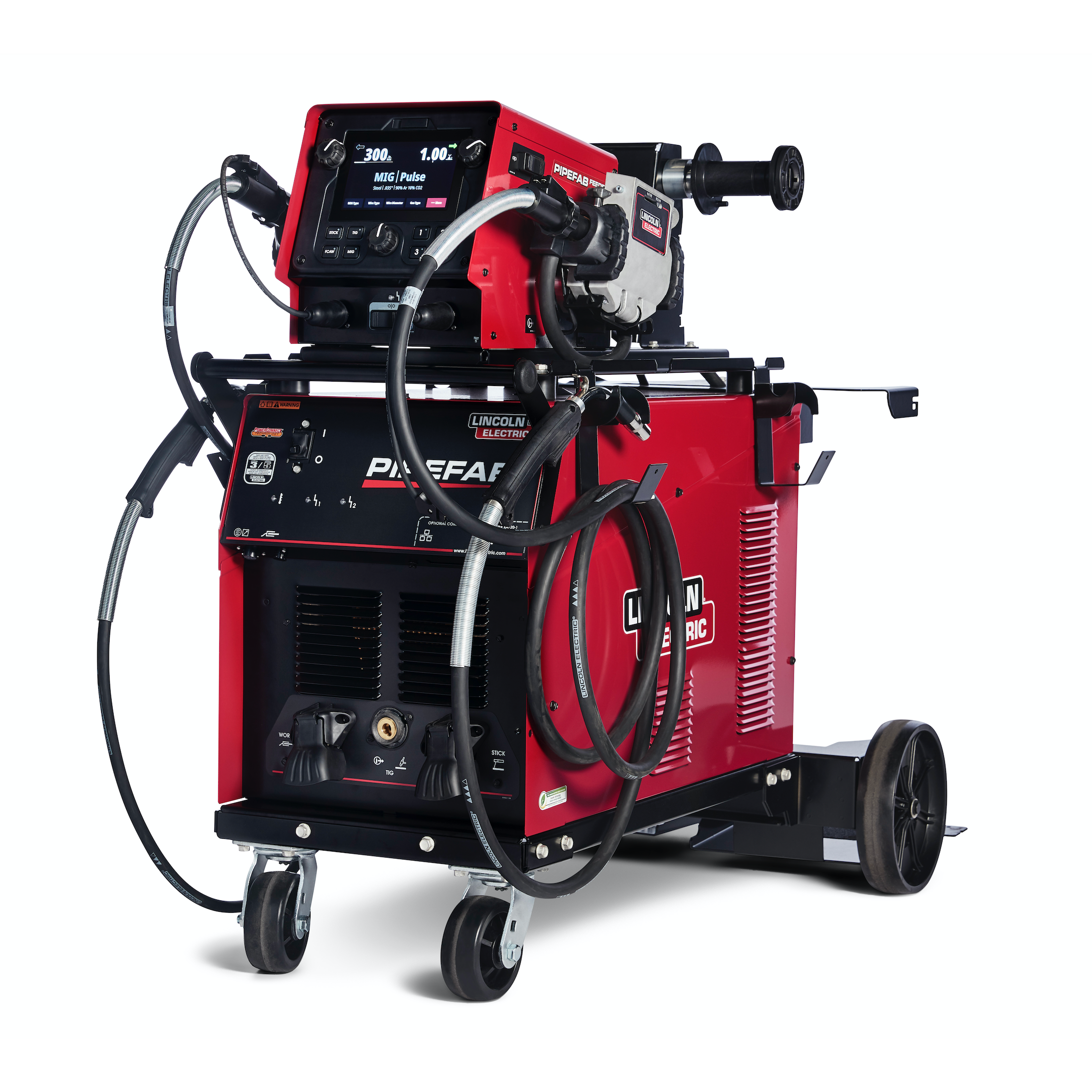

Lincoln PIPEFAB Ready-Pak Welding System - K3734-1

Description

Revolutionary Arc Performance

• Enhanced STT® root pass solution with quicker travel speeds and better stability
• Smart Pulse™ Technology for improved stability and puddle control
• Optimized processes for pipes and vessels - Stick, DC TIG (HF & Touch Start), MIG, Pulsed MIG, STT®, Flux-Cored

Unbeatable Simplicity

• One-button process changes for easy operation
• Simple and easy-to-understand navigation
• Memory buttons to quickly recall preferred settings
• ArcFX™ Technology for visual arc settings feedback

Industry-Driven Design

• No need to swap cables - dedicated, electrically isolated process outputs
• PowerConnect® Technology – 200v – 600v input power flexibility

Top Features:

• Exceptional arc performance from root to cap to final fit
• Digital navigation for ultimate simplicity
• Customer-driven design for Pipe & Vessel Fabrication

Input Power

• 200/208/220/230/380/400/415/460/575 / 3 / 50 / 60

Processes

• MIG, TIG, Stick, Pulsed, Flux-Cored, & STT.

Included with Product

• PIPEFAB™ Power Source
• PIPEFAB™ Feeder
• PIPEFAB™ Cart & Dual Bottle Rack
• Magnum® PRO Curve™ 200 15FT Ready-Pak
• Magnum® PRO Curve™ 300 15FT Ready-Pak
• Magnum® PRO .035” & .045” Tapered Contact Tip (Qty 1 ea)
• Magnum® PRO 3/8” Tapered-Flush & 1/2” Flush Nozzles (Qty 1 ea)
• .035”/.045” V Groove Drive Roll Kits (4 Roll Kit - Qty 2)
• .045' Knurled Drive Roll Kit (4 Roll Kit)
• Harris® Flowmeter & Hoses
• Brass Inlet Gas Y Fitting
• 15FT 2/0 Work Lead & GC500 Clamp
• PIPEFAB™ Feeder Screen Protector (optional use)

Specifications

Click to view the Spec Sheet.

Info Video

Accessories

Using the Lincoln PIPEFAB Ready - Pak Welding System is a breeze. First, connect the power source to a suitable input power within the 200 - 600v range specified. You can easily switch between different welding processes like MIG, TIG, Stick, etc., with just one button. The digital navigation makes it simple to adjust settings. For those who have favorite settings, use the memory buttons to quickly recall them. When using, keep an eye on the ArcFX™ visual feedback for arc settings. Regarding maintenance, regularly check the cables and connections to ensure they are in good condition. The drive roll kits may need to be replaced after a certain amount of use, especially if you notice a decline in wire feeding. Store the system in a dry and clean place to prevent damage. Also, don't forget to use the PIPEFAB™ Feeder Screen Protector if needed to protect the feeder screen. Always follow the safety instructions provided in the spec sheet when operating the welding system.
