Description
The Multi-Process Workhorse

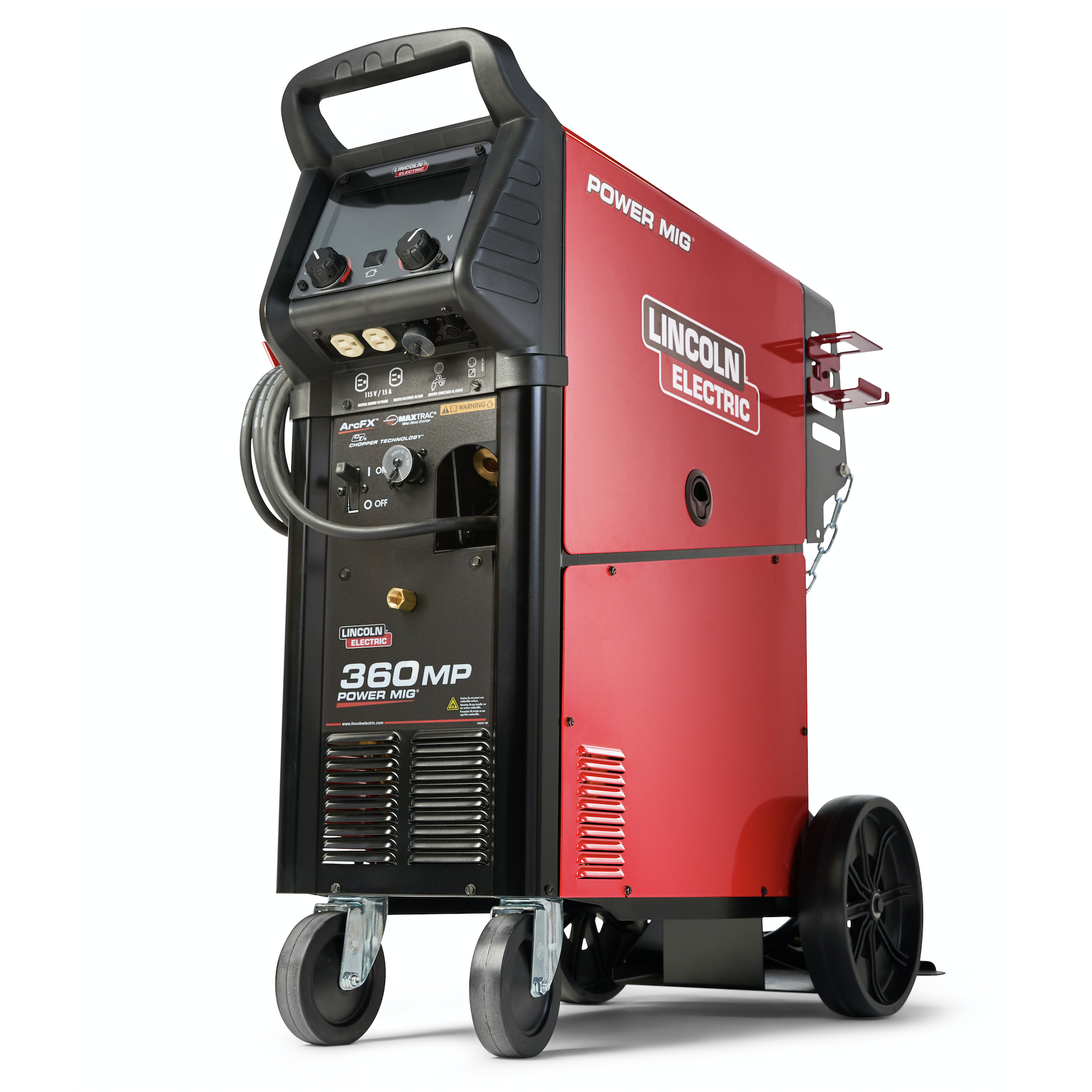

The POWER MIG 360MP is a top - notch professional multi - process welding system. It can handle Stick, TIG, MIG, and Flux - Cored welding. Advanced features like MIG and TIG Pulse Welding, the easy 'Ready. Set. Weld.' setup, ArcFX technology, and Memory Capability are at your fingertips, all easily accessible via the color display.
Ready. Set. Weld. Quick Set - UP
Setting up this machine is a breeze. The 7 - inch LED screen is interactive and easy to follow during setup. With push - and - turn digital controls, you can adjust settings for all three processes easily. It can weld 4XXX and 5XXX series aluminum using Pulse Processes and offers three ways to feed aluminum: Push Gun, Spool Gun, or Push - Pull Gun.
Pulse - on - Pulse Mode
When MIG welding aluminum, this mode uses varying pulse wave shapes to create a TIG - like bead appearance and great weld properties. It controls arc length and heat input together, making good penetration easier to achieve.
Pulse MIG
By varying the weld current between peak and background levels, it gives better control of heat input. This minimizes warping and burn - through on thin materials. You can weld in different positions without a slag system. Optimized GMAW - P waveforms are available for various metals like aluminum, carbon steel, and more.
TIG Pulse
TIG Pulse helps prevent burn - through on thin materials, increases travel speed, and results in a smaller bead width. It can reduce warpage, especially in stainless steel. You can turn it on or off in the advanced options menu. A single knob sets the pulse frequency, and the output current is automatically regulated.
Power Mode
It uses high - speed output power regulation for fast responses to arc changes. This improves MIG welding performance, with low spatter, uniform bead wetting, and controlled penetration. It's especially useful for low - voltage applications on thin steel and stainless steel.
ArcFX Technology
This patented technology gives instant graphical feedback on how Wire Feed Speed and Voltage affect the weld result.

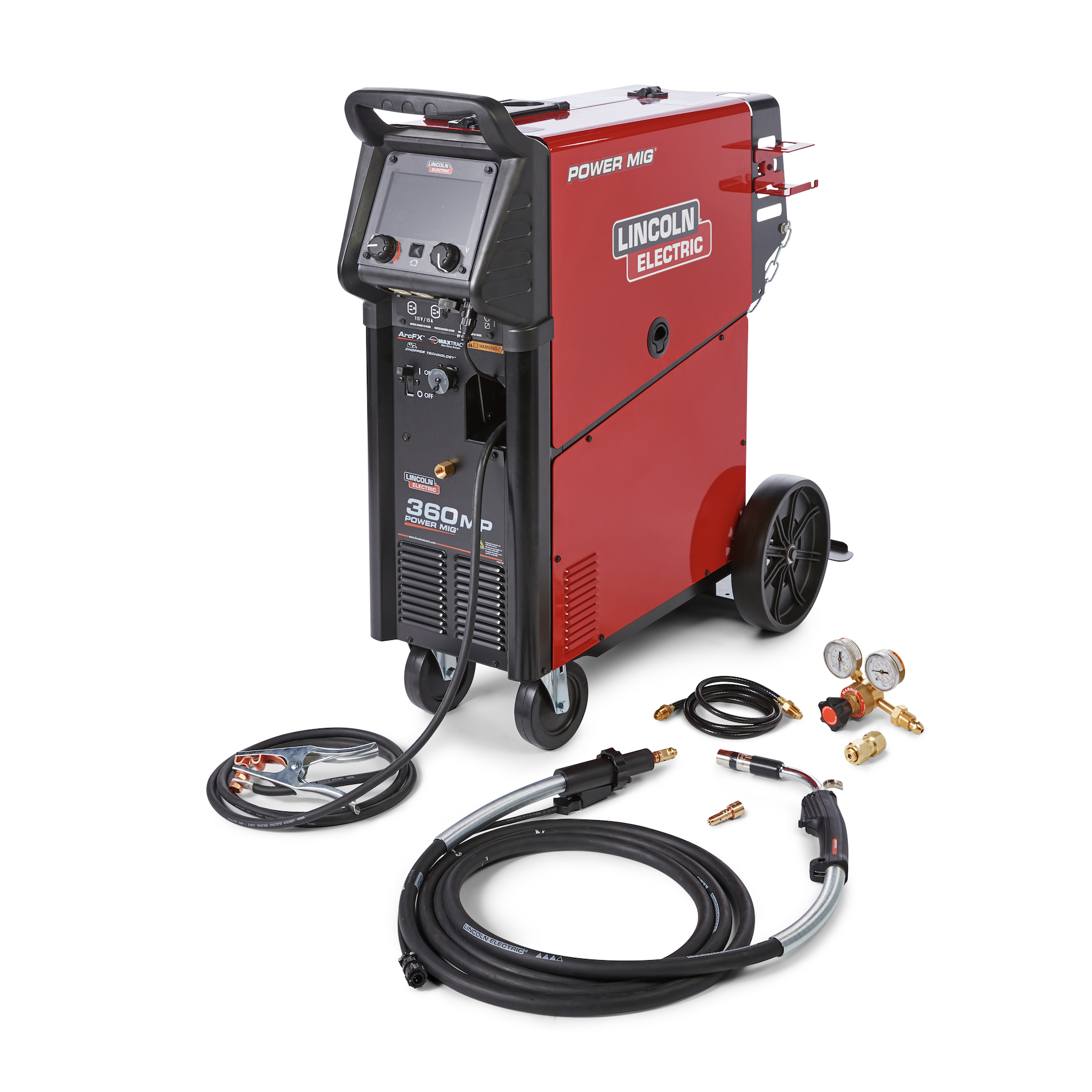

Included with Product
Magnum® PRO 300 gun with 15 ft. (4.5 m) cable assembly
.035/.045 in. Drive Rolls and Guide for Steel
Gas Regulator and Hose
Work clamp and 10 ft. (3.0 m) cable.
230V Input Cord and Plug
115V AC Auxiliary Power Receptacle
Storage Compartment
Specifications
Click to view full Spec Sheet
Demo Video
Accessories
Using the Lincoln Power MIG 360MP Multiprocess Welder is quite straightforward. First, for setup, use the 7 - inch LED screen. It's interactive and will guide you through the process. You can adjust settings for different welding processes like Stick, TIG, and MIG with the push - and - turn digital controls. When welding aluminum, you can choose from three ways to feed the aluminum: Push Gun, Spool Gun, or Push - Pull Gun. Remember, the Pulse - on - Pulse mode is great for MIG welding aluminum as it gives a TIG - like bead. For thin materials, use the Pulse MIG or TIG Pulse to prevent burn - through and warping. In the advanced options menu, you can turn the TIG Pulse on or off and set the frequency with a single knob. The Power Mode is very useful for low - voltage applications on thin steel and stainless steel. When it comes to maintenance, make sure to keep the machine clean. Check the cables regularly for any signs of wear. Store the machine in a dry place. If you're using the included Magnum® PRO 300 gun, clean it after each use. Also, don't forget to check the gas regulator and hose for proper functioning. And always refer to the spec sheet for detailed information about the machine.
