Description

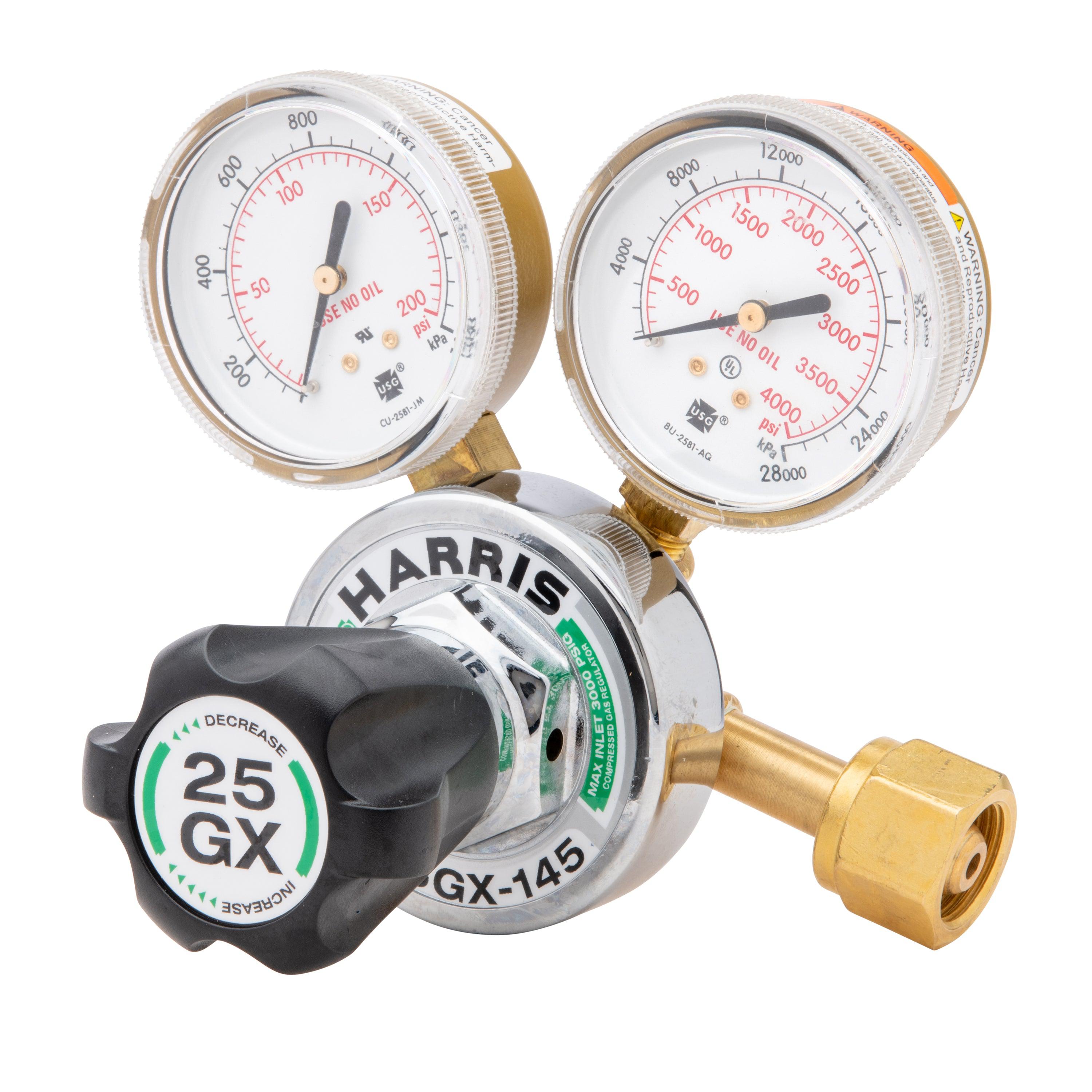

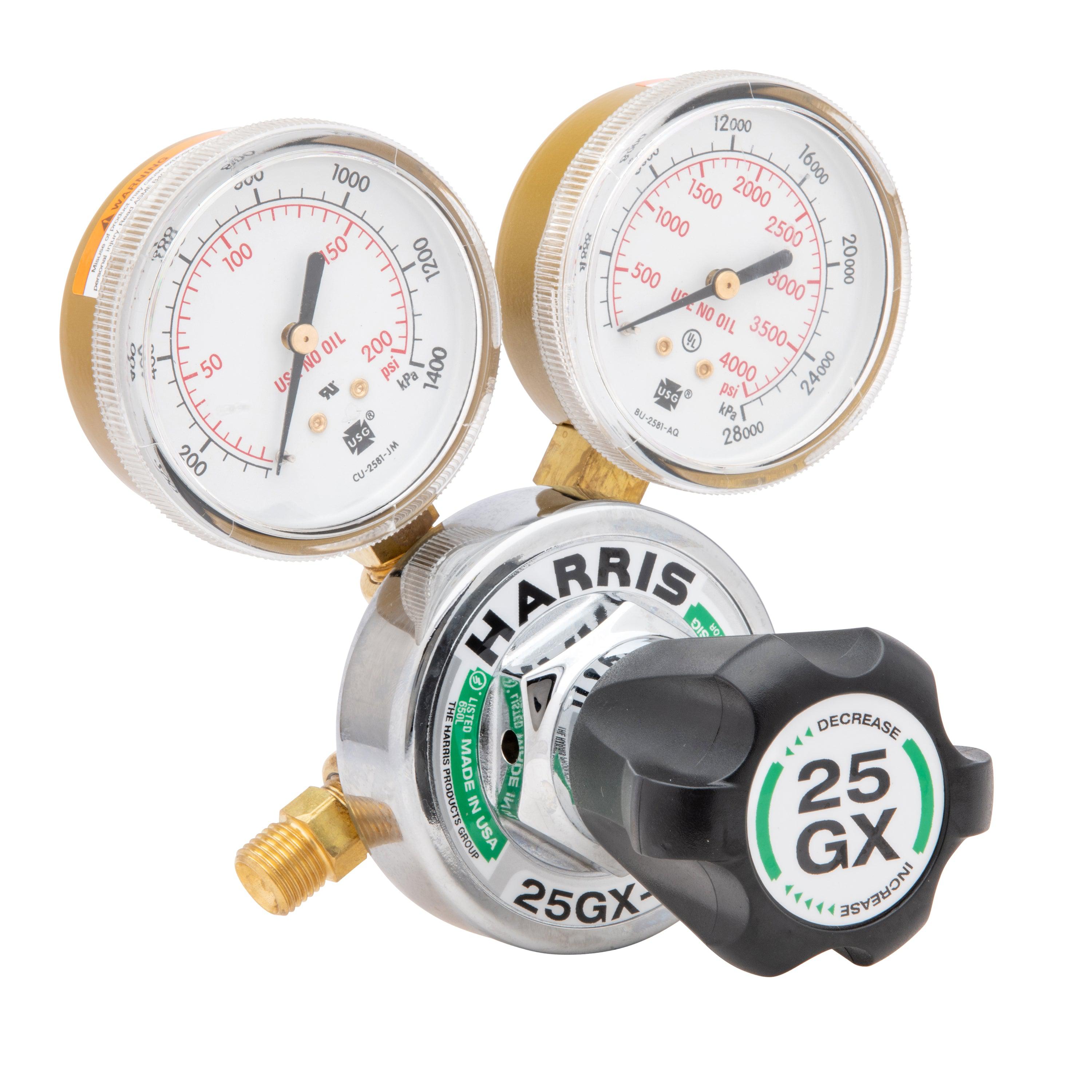

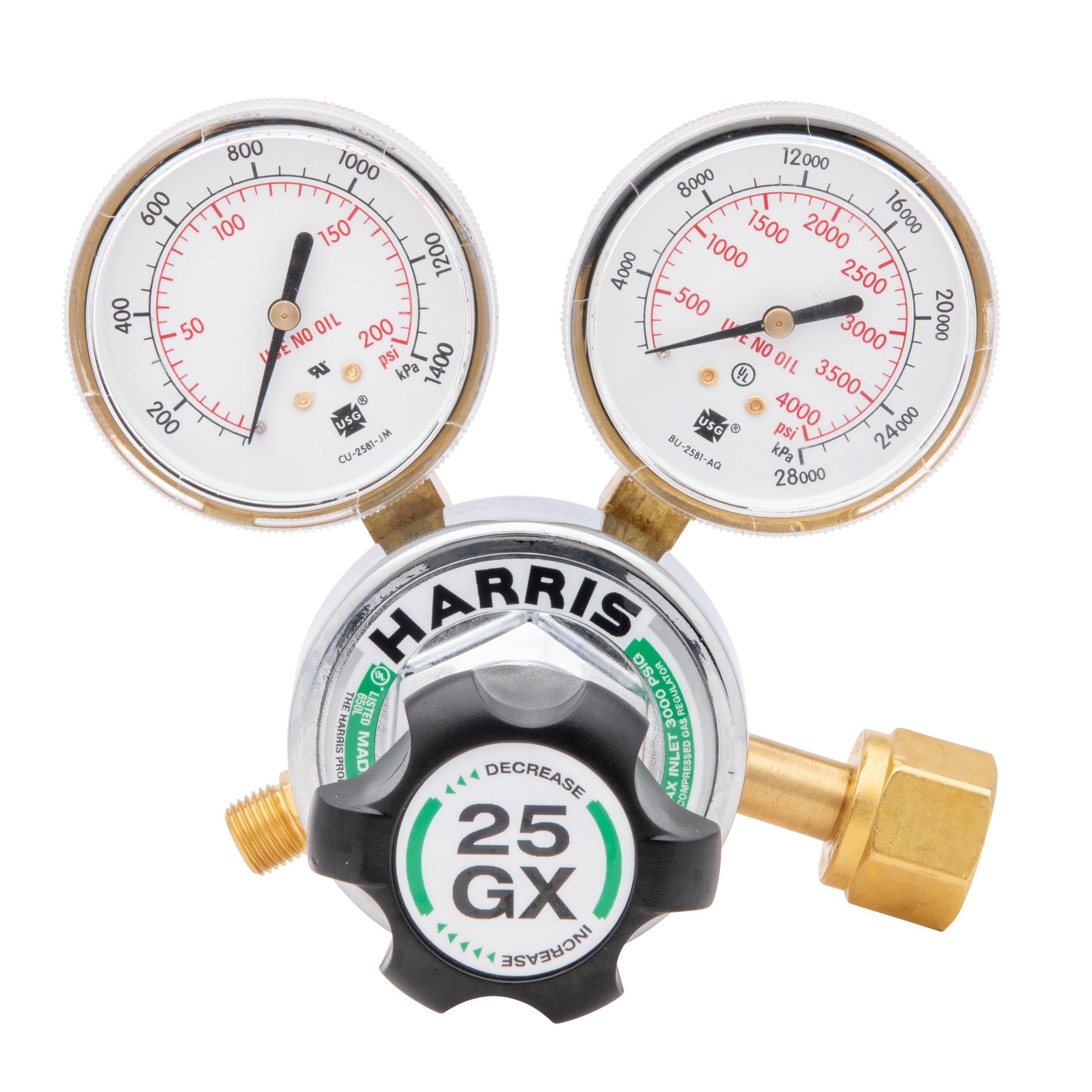

The 25GX is the future of Harris industrial regulators. It comes with larger, easy - to - read gauges and an ergonomic adjusting knob that protects the mechanism from dirt. This regulator offers high - end features at an affordable price, making it the go - to workhorse in the Harris industrial line.
Features
- Get top - notch features for a great price
- The workhorse of Harris industrial regulators
- Ergonomic ABS plastic knob for a firm grip and accurate adjustment
- Brass body and chrome - plated zinc bonnet for long - lasting use
- Neoprene diaphragm for excellent pressure control
- 2.5' Steel dual - scale gauges that are a breeze to read
- One - piece encapsulated seat with an internal filter to keep the PTFE Teflon® seat clean
- UL listed for safety
Warranty
7 Years
Specifications
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Chrome plated zinc |
| Certification | CGA E - 4
UL® listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 200 |
| Delivery Pressure Range (PSIG) | 0 - 145 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Gas / Gas Service | Oxygen |
| Gauges | 2.5' Steel dual scale |
| Inlet Connection | CGA 540 |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 9/16' - 18 RH |
| Pressure Regulation PSIG/100 PSIG | 0.20 psig |
| Recommended Items/Accessories | Steel Gauge Guard - Red (Fuel) - PN 4300238
Steel Gauge Guard - Green (Oxygen) - PN 4300239 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Using the HARRIS 25GX Oxygen Regulator is easy. First, connect it to your oxygen source using the CGA 540 inlet connection. Then, adjust the pressure using the ergonomic ABS plastic knob until you reach the desired delivery pressure within the 0 - 145 PSIG range. You can check the pressure on the easy - to - read 2.5' steel dual - scale gauges. When it comes to safety, make sure the regulator is UL listed and installed properly. Keep the area around the regulator clean to prevent contaminants from entering. For maintenance, inspect the brass body and chrome - plated zinc bonnet regularly for any signs of wear. The neoprene diaphragm and PTFE Teflon® seat are designed for long - term use, but if you notice any issues with pressure control, it might be time to check them. Also, consider using the recommended steel gauge guards for added protection. With a 7 - year warranty, you can use this regulator with confidence for your medium - to - heavy - duty oxygen needs.
