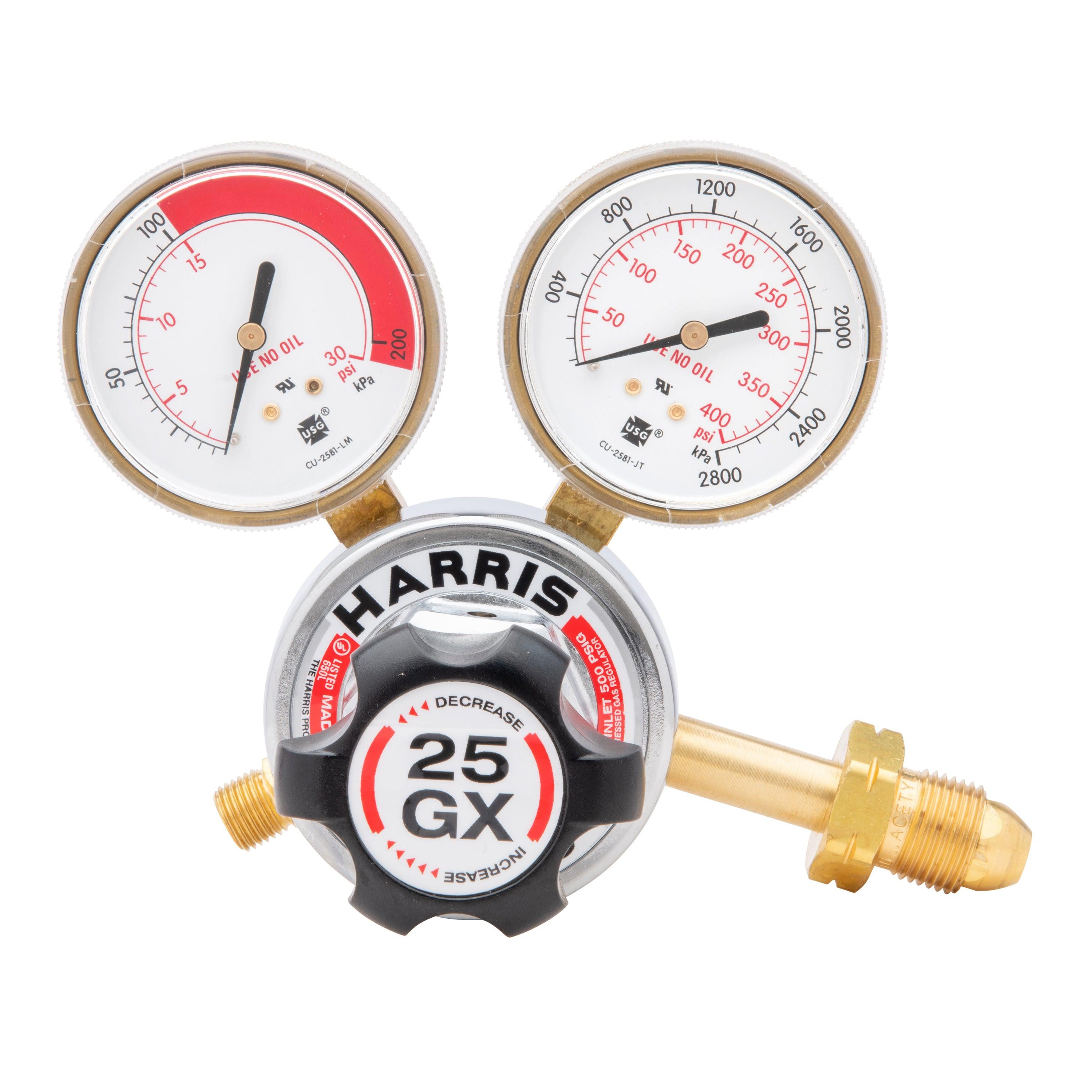

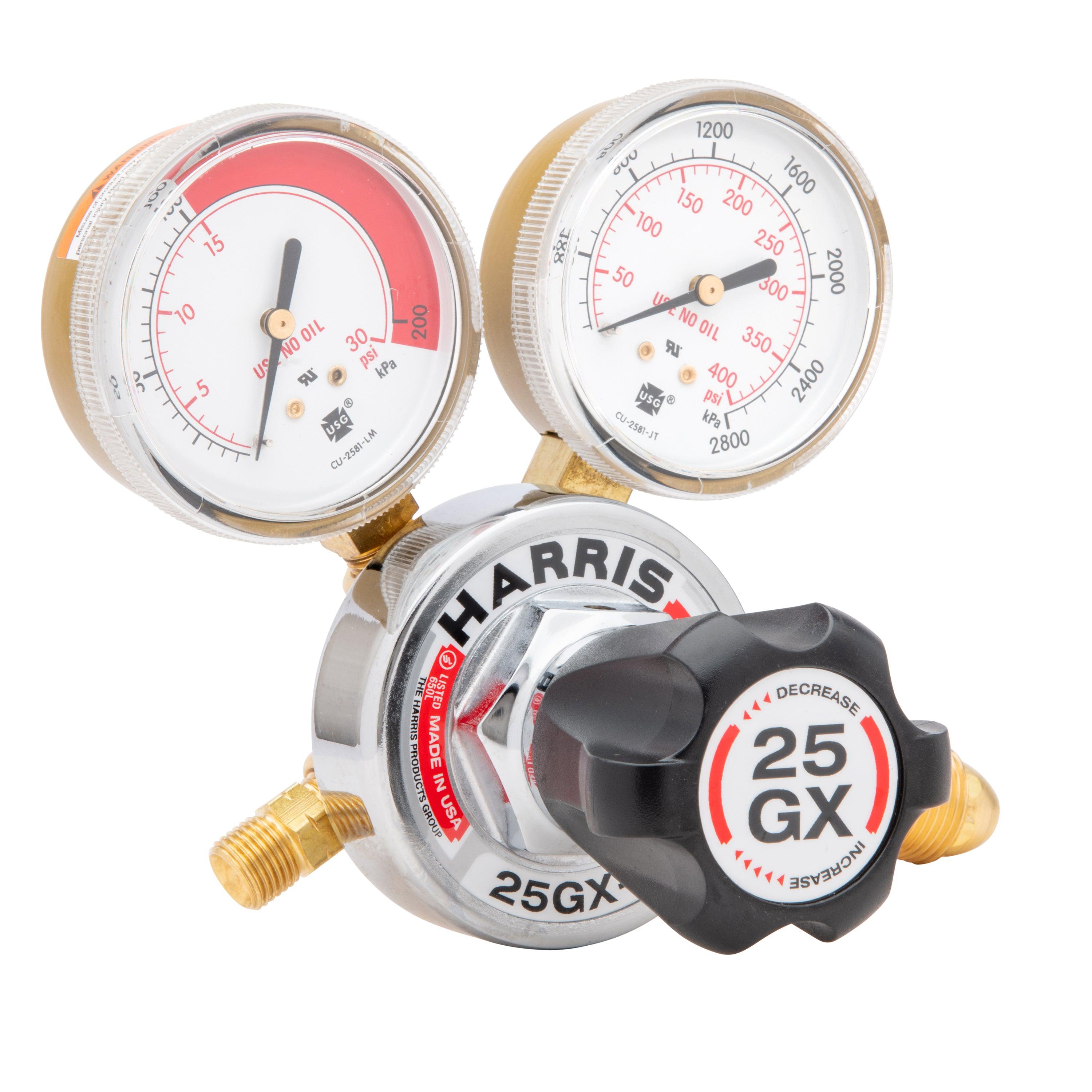

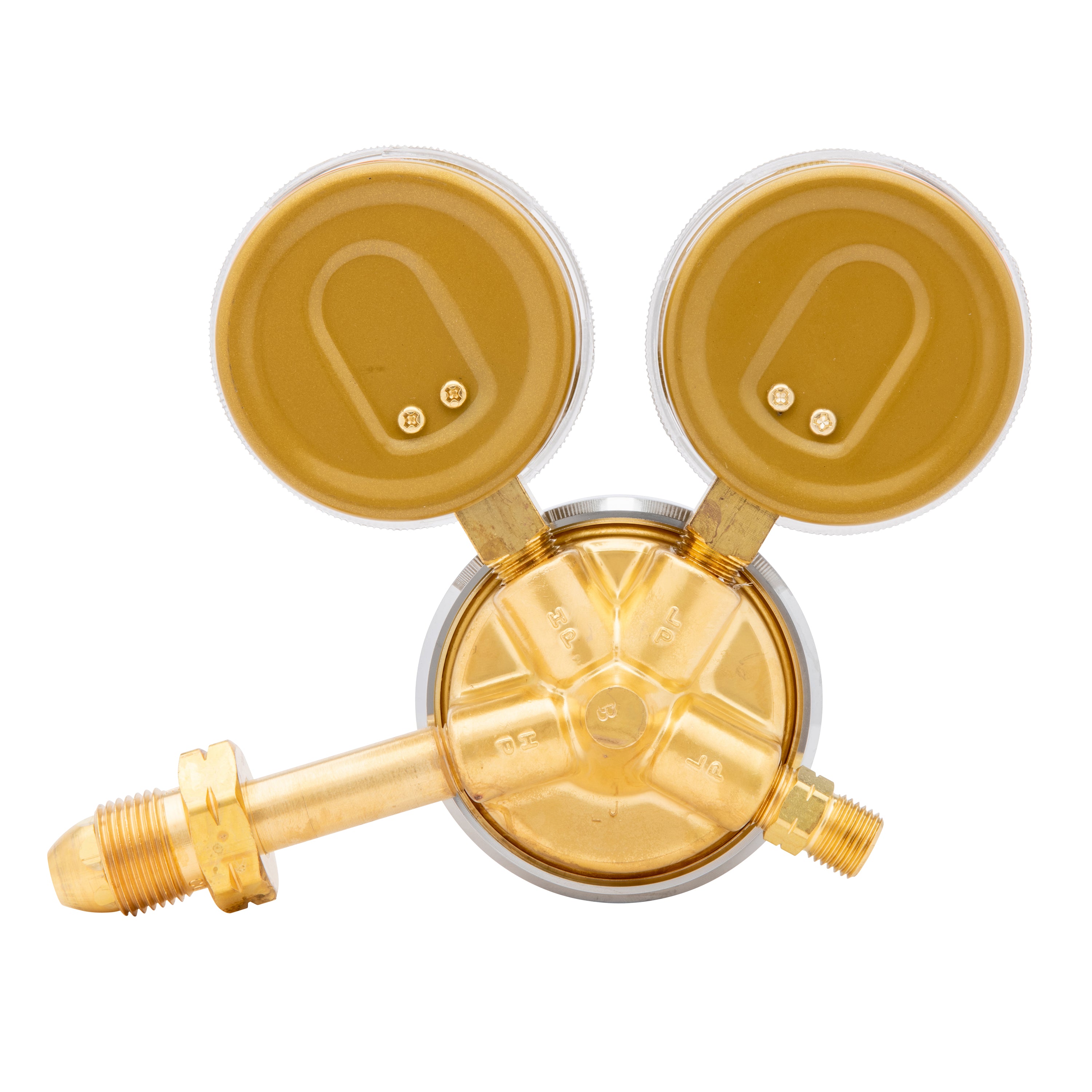

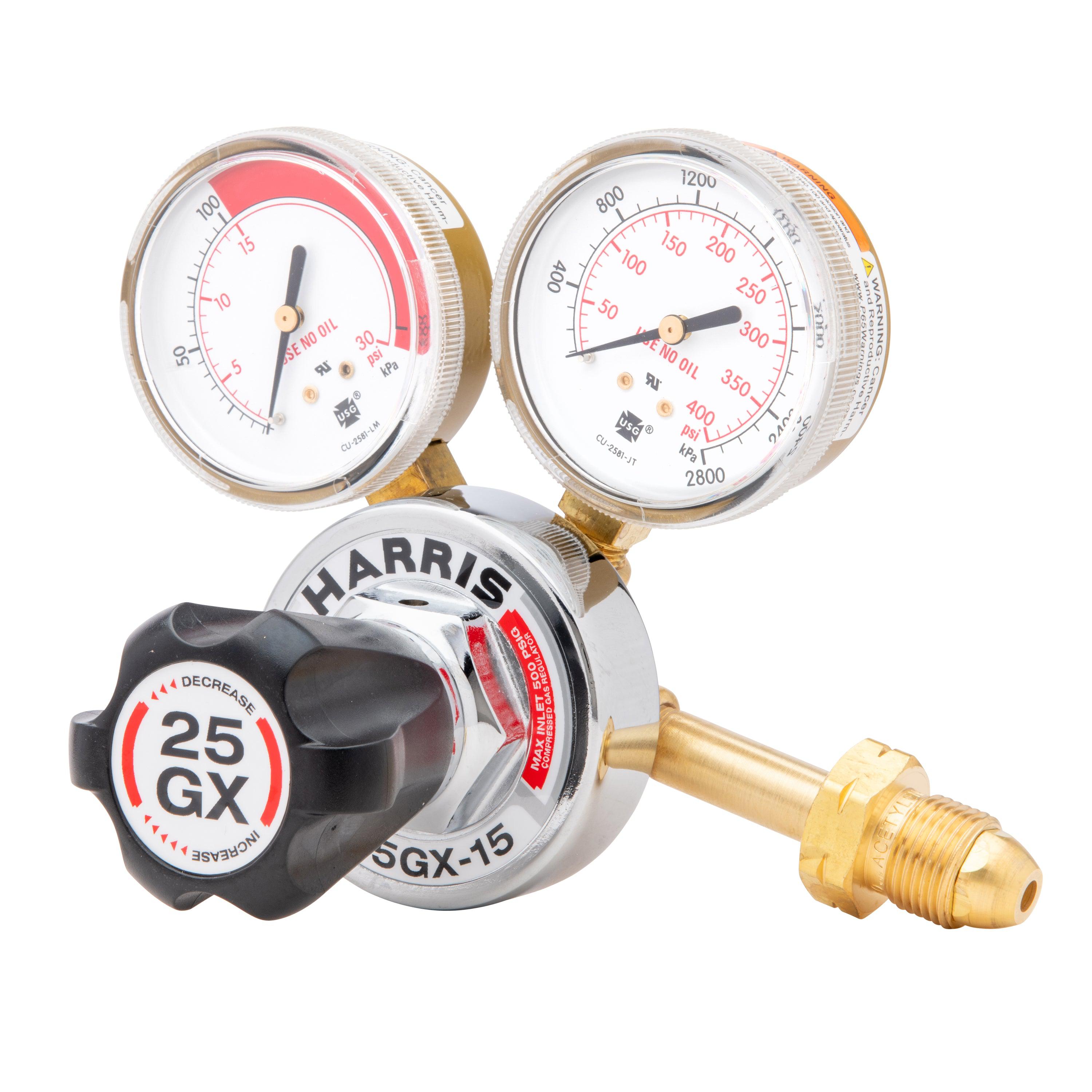

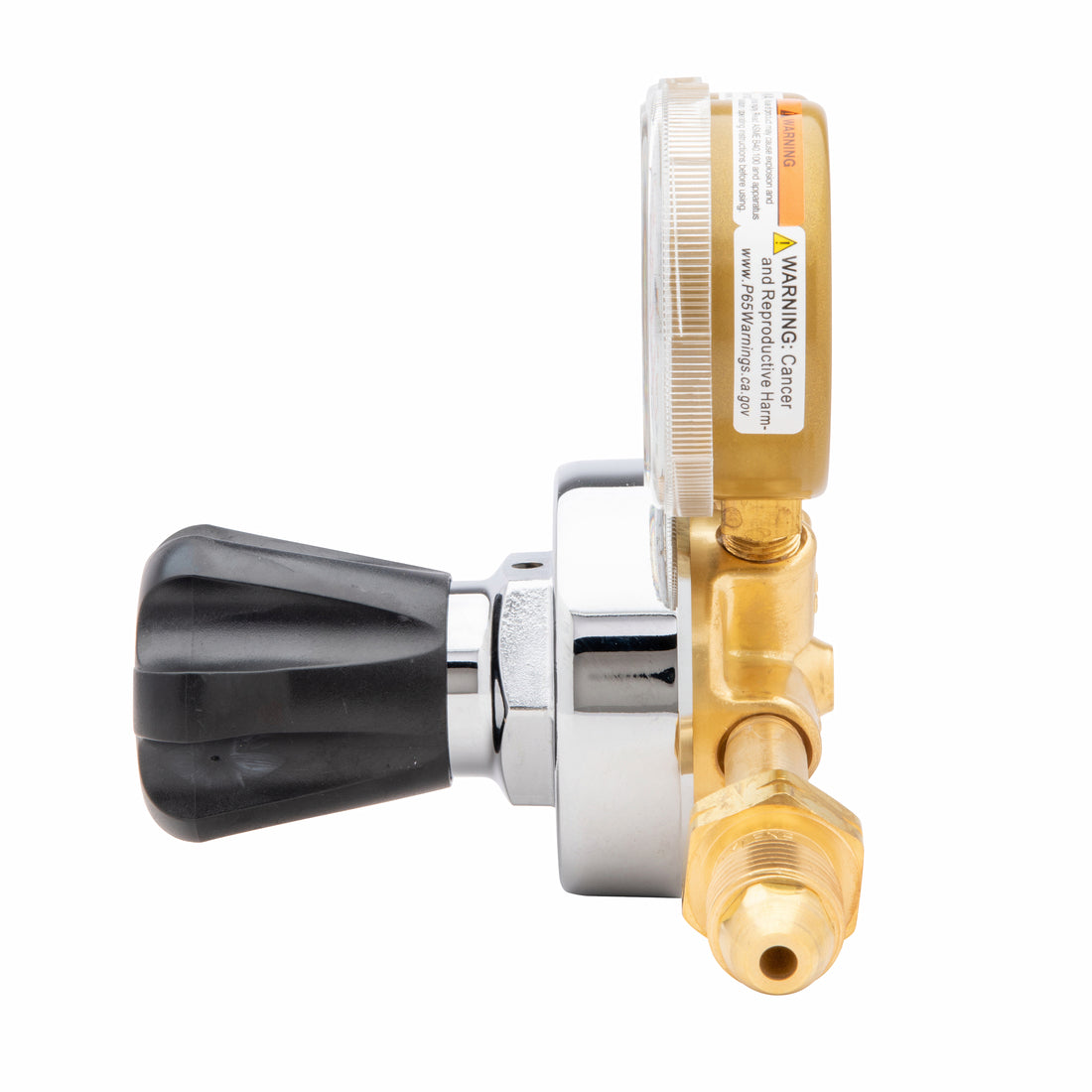

Harris 25GX Med/Heavy Duty Acetylene Regulator - 3000380

Description

The Model 25GX single - stage regulator is the future workhorse of the Harris industrial line. It comes with large, easy - to - read gauges and an ergonomic adjusting knob that keeps contaminants away from the adjusting mechanism. You get high - end features at an economical price.

Features

• Great features at a low cost
• Key product in Harris industrial regulator series
• Comfortable ABS plastic knob for easy and precise adjustment
• Brass body and chrome - plated zinc bonnet for long - lasting use
• Neoprene diaphragm for excellent pressure control
• 2.5' Steel dual - scale gauges that are easy to read
• One - piece seat design with internal filter to protect the Teflon seat from particles
• UL listed for safety

Warranty

7 Years

Specifications

Adjusting Knob	ABS plastic
Body	Brass
Bonnet	Chrome plated zinc
Certification	CGA E - 4 UL listed
Cv	0.17
Delivery Pressure Gauge (PSIG)	30RZ
Delivery Pressure Range (PSIG)	0 - 15
Diaphragm	Neoprene
Duty	Medium to heavy
Gas / Gas Service	Acetylene
Gauges	2.5' Steel dual scale
Inlet Connection	CGA 510
Maximum Inlet Pressure (PSIG)	500
Nozzle	Brass
Outlet Connection	9/16' - 18 LH
Pressure Regulation PSIG/100 PSIG	0.20 psig
Recommended Items/Accessories	Steel Gauge Guard - Red (Fuel) - PN 4300238 Steel Gauge Guard - Green (Oxygen) - PN 4300239
Seat	PTFE Teflon®
Supply Pressure Gauge (PSIG)	400

Using this Harris 25GX acetylene regulator is easy. First, connect the inlet to your acetylene source using the CGA 510 connection. Then, connect the outlet to your equipment with the 9/16' - 18 LH connection. You can adjust the pressure with the ABS plastic knob for precise control. Remember, the maximum inlet pressure should not exceed 500 PSIG. When not in use, keep it in a dry place. For maintenance, check the gauges regularly to make sure they're working well. Clean the regulator occasionally to prevent any dirt or debris from getting in. Also, consider using the recommended gauge guards for extra protection. And since it has a 7 - year warranty, if you run into any issues, you're covered.
