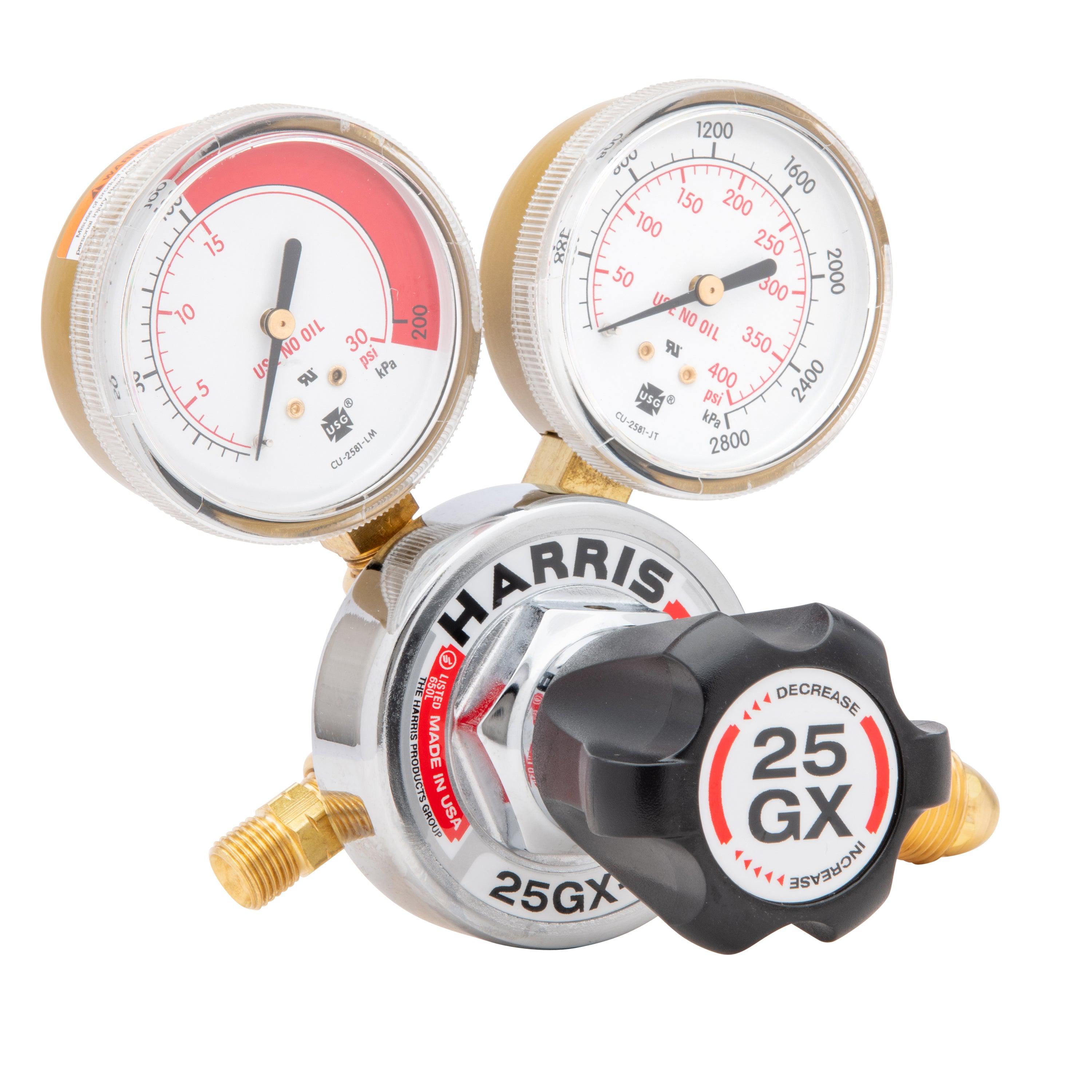

Harris 25GX Med/Heavy Duty Acetylene Regulator - 3000350

The Model 25GX single - stage regulator is the future workhorse of the Harris industrial line. It has large, easy - to - read gauges and an ergonomic adjusting knob that keeps contaminants away from the adjusting mechanism. This regulator offers high - end features at an economical price. It's the go - to in the Harris industrial regulator range. The ergonomic ABS plastic knob provides a good grip and precise adjustment. Its brass body and chrome - plated zinc bonnet ensure a long service life. The neoprene diaphragm helps with better pressure control. The 2.5' steel dual - scale gauges are very easy to read. It has a one - piece encapsulated seat design with an internal filter to protect the PTFE Teflon® seat from particles. And it's UL® listed. It comes with a 7 - year warranty.

Using your Harris 25GX Acetylene Regulator is easy. First, make sure to connect it properly to your acetylene source using the CGA 300 inlet connection. Then, adjust the pressure using the ABS plastic knob. You can see the pressure on the 2.5' steel dual - scale gauges. When using, keep in mind that the maximum inlet pressure should not exceed 500 PSIG, and the delivery pressure range is from 0 to 15 PSIG. For maintenance, regularly check the brass body and chrome - plated zinc bonnet for any signs of wear. If you notice any issues with pressure control, it might be the neoprene diaphragm that needs attention. Also, clean the internal filter periodically to protect the PTFE Teflon® seat. We recommend using the Steel Gauge Guard - Red (Fuel) - PN 4300238 to protect the gauges. Remember, this regulator is for medium to heavy - duty use with acetylene only.
