Description

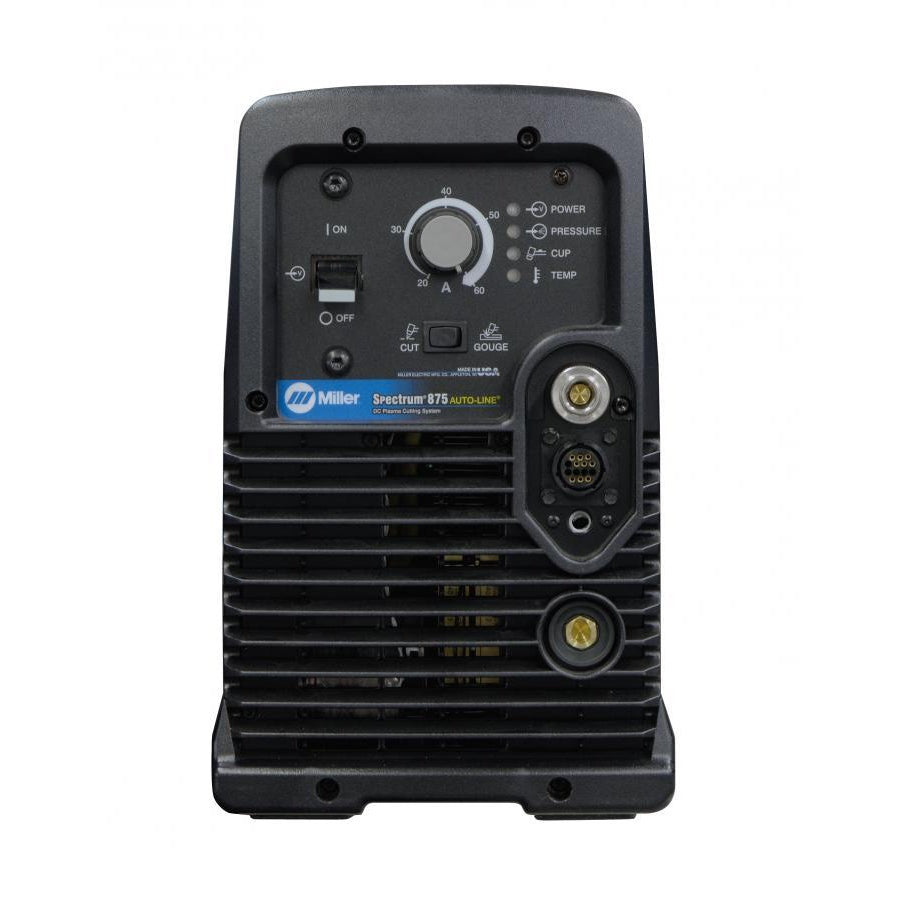

This compact, 54 - lb plasma cutter with multi - voltage support (208 - 575V 1/3PH) can cut up to 7/8” mild steel. Its rated cutting capacity ensures a steady and precise cut at about 15 inches per minute, meeting your typical cutting needs.
Automatic Air Regulation
For your convenience, it has no pressure gauge or manual regulator. It automatically adjusts air pressure for the best cutting and gouging results, no manual adjustments needed.
Ultra - Quick Connect™ Torch
Get the fastest plasma torch and work cable connection and removal in the industry with this torch and work cable.
Auto - Line™
It can automatically connect to any primary input voltage from 208 - 575 volts, single - or three - phase, 50 or 60 Hz.
Wind Tunnel Technology™ and Fan - On - Demand™
Wind Tunnel Technology protects internal components from abrasive dust and particles. The Fan - On - Demand cooling system runs only when required, reducing dust intake in dirty environments.
CNC/Automation Cutting Capable
Factory - ready CNC/Automation models with long or short body torches are available, along with retrofit kits to convert handheld machines for CNC/Automation cutting.
Auto - Refire™ Technology
Automatically control the pilot arc when cutting expanded metal or multiple metal pieces. It switches the pilot arc as needed, provides more power for thick metal, and reduces user hand fatigue.
Included with Product
- Plasma cutter
- ICE - 60T handheld torch with 20 ft (6 m) cable
- Heavy - duty work clamp with 20 ft (6 m) cable
- 10 ft (3 m) power cord
- Extra consumables (2 electrodes, 2 tips, 1 extended tip, and 1 deflector)
Specifications
Click the image below to view the full spec sheet
Accessories
Using the Miller Spectrum 875 Auto Plasma Cutter is quite straightforward. First, connect the power cord to a suitable power source within the 208 - 575 volts range, either single - or three - phase, 50 or 60 Hz. The Auto - Line™ feature will handle the voltage connection automatically. Then, attach the ICE - 60T handheld torch and the heavy - duty work clamp using the provided cables. The Ultra - Quick Connect™ makes this process fast. For cutting, simply set the workpiece and start the cutting process. The unit will automatically adjust the air pressure for optimal cutting thanks to the Automatic Air Regulation. When cutting expanded metal or multiple pieces of metal, the Auto - Refire™ technology will control the pilot arc for you.
Some important things to note: Keep the cutter in a clean environment as much as possible. The Wind Tunnel Technology™ helps protect it from dust, but it's still best to avoid extremely dirty or dusty places. Also, don't forget to check the consumables regularly. The product comes with extra consumables, including electrodes, tips, an extended tip, and a deflector. Replace them when they show signs of wear.
For maintenance, make sure to turn off the cutter and unplug it before any inspection. Check the cables for any damage and clean the exterior of the unit with a dry cloth. The Fan - On - Demand™ cooling system only runs when needed, which helps reduce dust intake, but you can still clean the air intake vents periodically to ensure good ventilation.
