Description

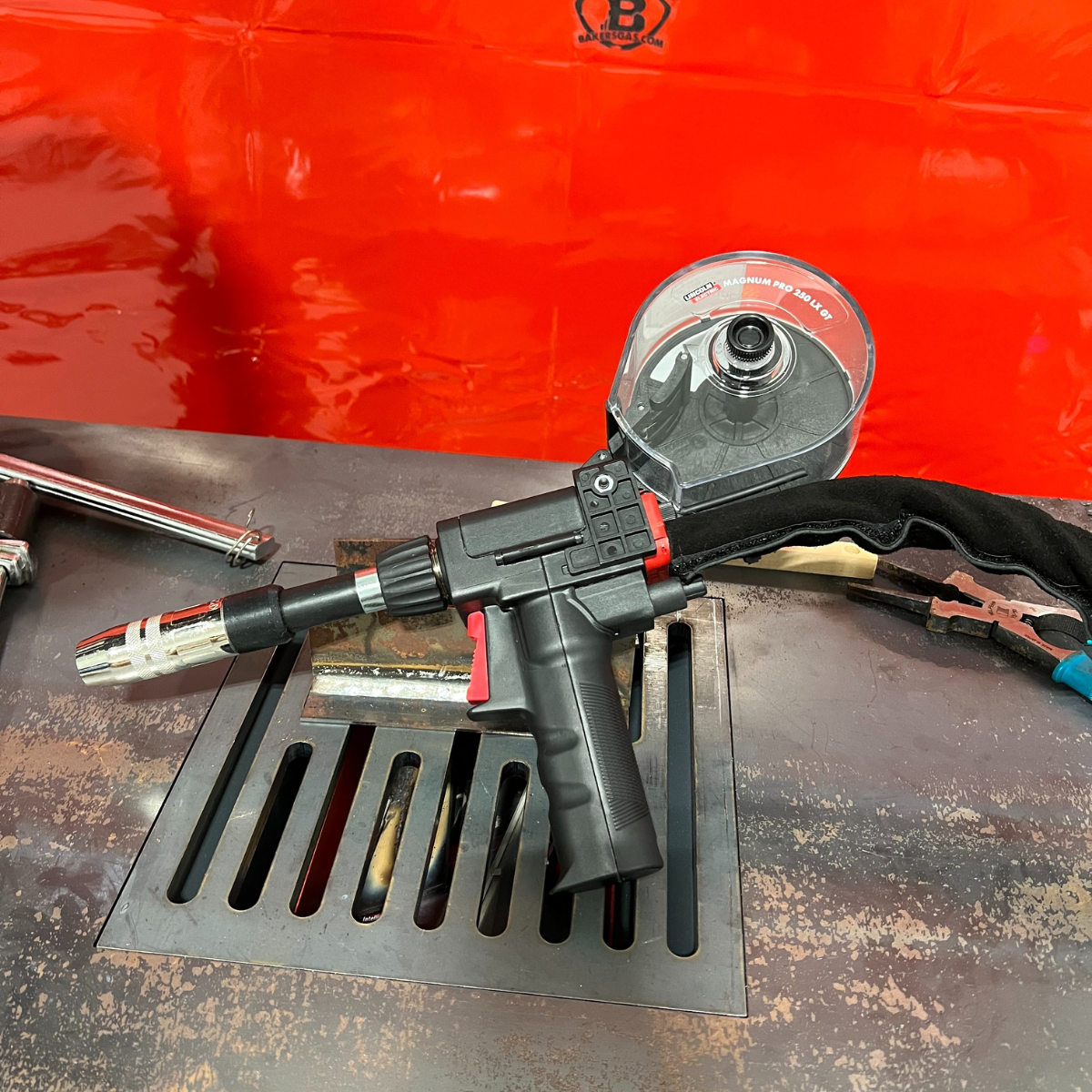

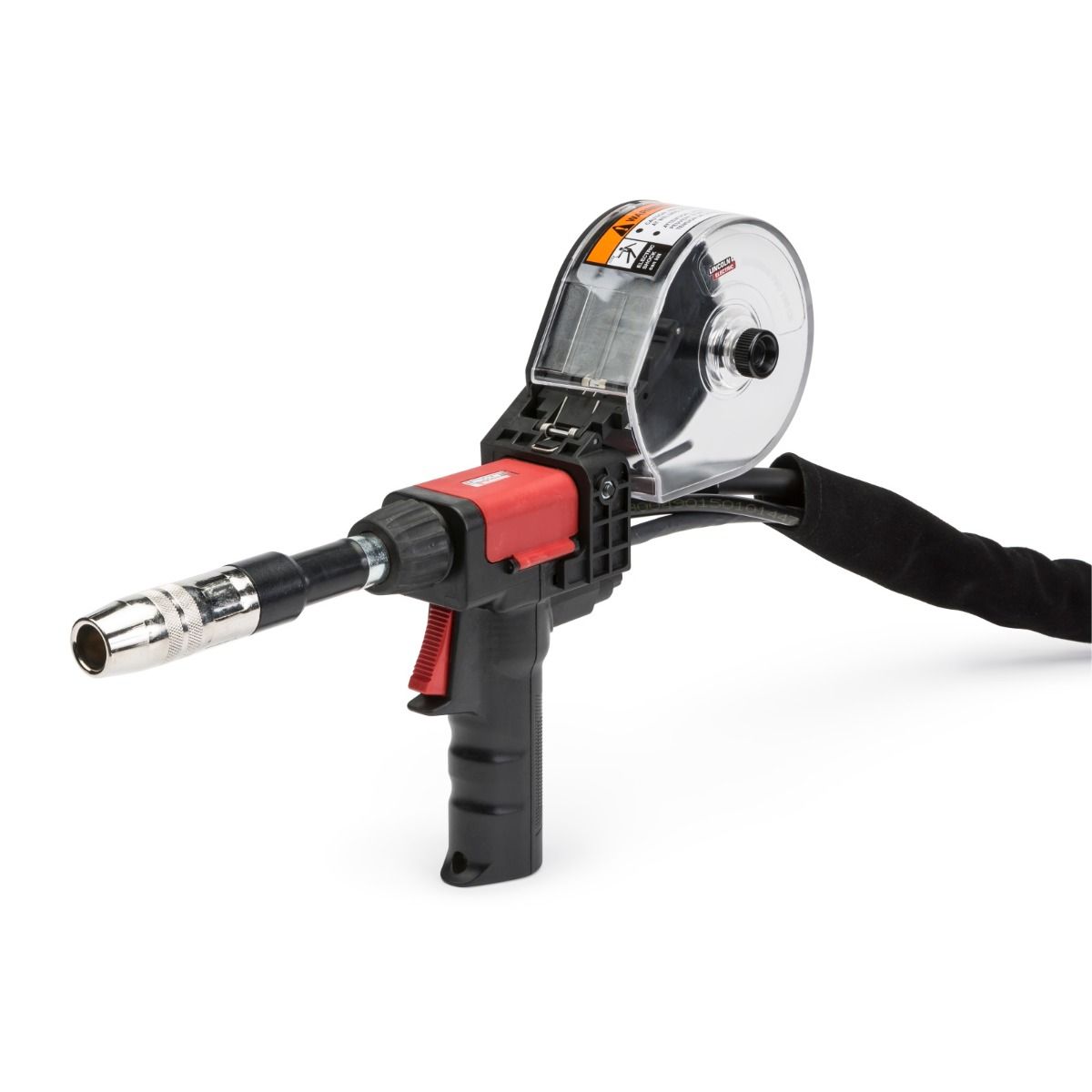

The Lincoln Magnum Pro 250LX Spool Gun is a must - have for your larger PowerMig machines like the 256, 260, or 350. It offers outstanding versatility with no hassle.
Versatility Without Hassle
Pairing long - lasting Magnum PRO contact tips with a durable design, this spool gun is the most versatile accessory for the POWER MIG family.
- Magnum PRO Expendables – Use premium Magnum PRO expendables to extend contact tip life and increase arc - on time.
- Easy Connection – Plug it directly into the POWER MIG 256, 260, and 350 without an extra adapter.
- Remote Wire Speed Adjustment – Adjust wire speed at the gun with fine precision, no need to go back to the power source.

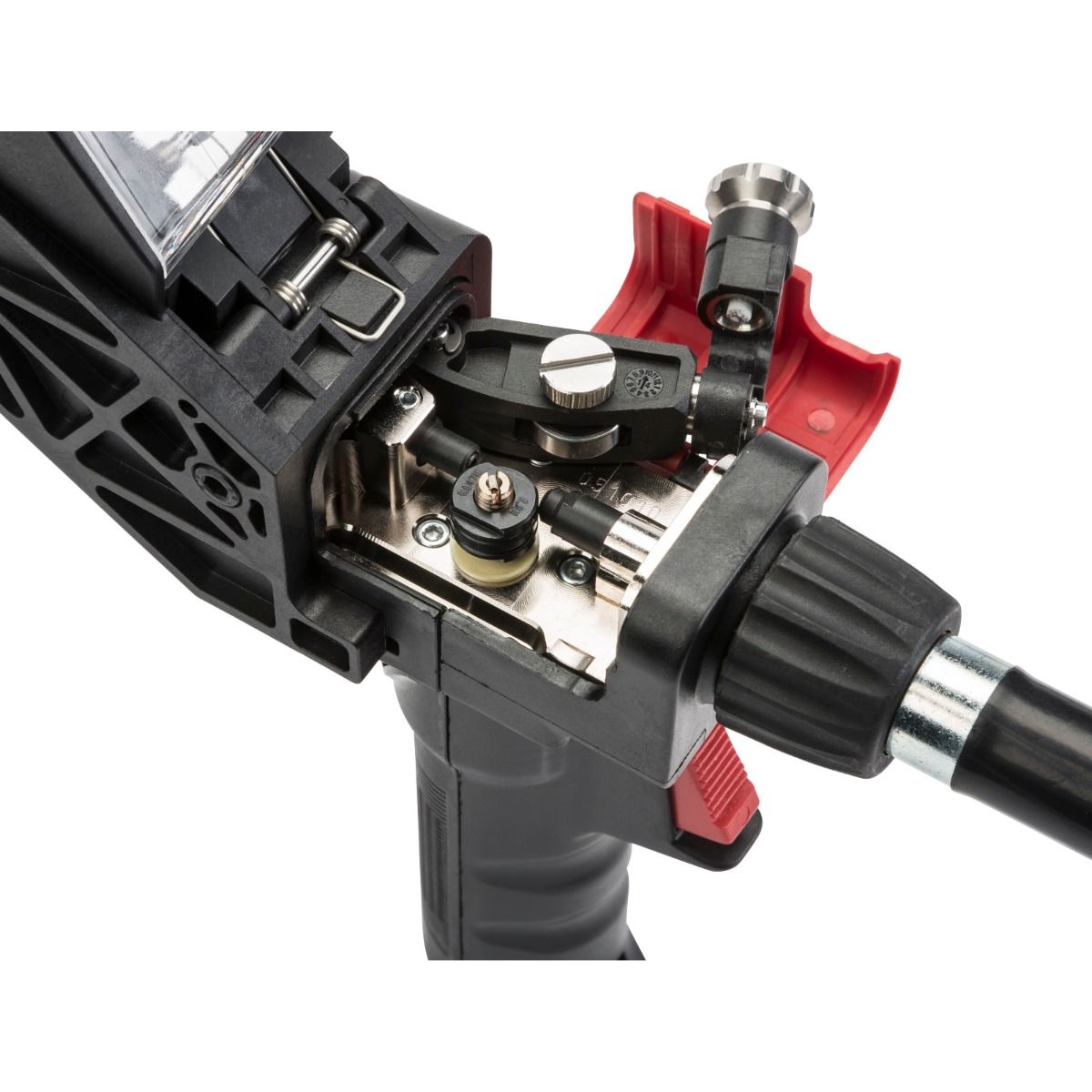

- Tool - less Drive Roll Tension – A large thumbscrew allows for easy fine - tuning of drive roll pressure. A set screw provides coarser adjustment for steel.
Features
- Premium Magnum PRO expendables for longer contact tip life and more arc - on time.
- Direct plug - in to select POWER MIG machines without an adapter.
- Remote and precise wire speed adjustment at the gun.
- Effortless drive roll pressure adjustment with a thumbscrew and set screw.
Processes
Wire Diameter Range
- .030 - 3/64 in. (0.8 - 1.2) Aluminum
- .025 - .035 in. (0.6 - 0.9) Steel

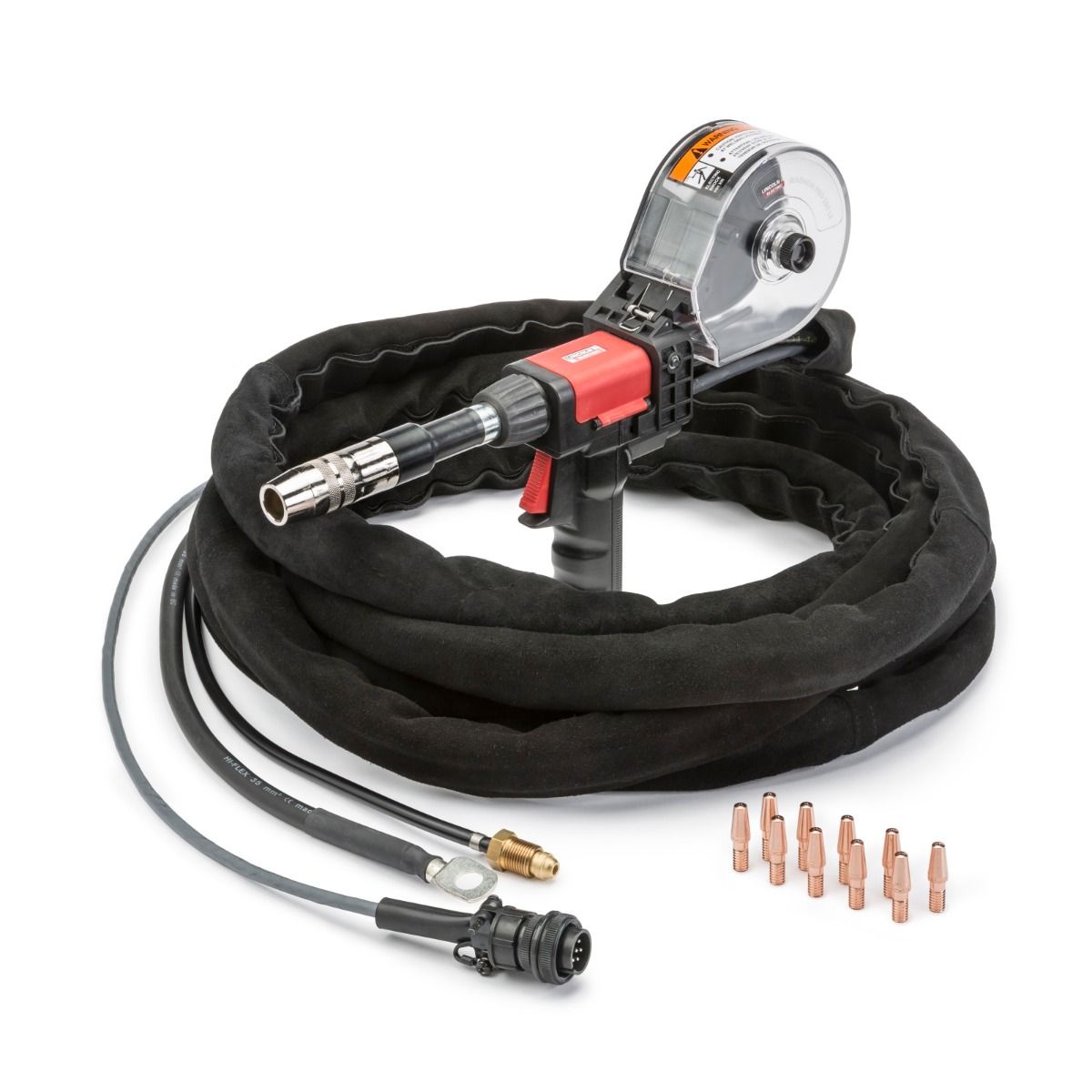

Included with Product
- KP2747 - 1A - Diffuser, Thread - on, Aluminum 550A
- KP2743 - 1 - 62RA - Gas Nozzle Assembly, Aluminum, 5/8 in., Recessed
- KP2745 - 364AT - Tapered Contact Tip, Aluminum, 3/64 in.
- KP2518 - 2 - Drive Roll, Aluminum, .030/.035 – 3/64 in.
- KP2879 - 5 - Barrel Liner, 180°
- KP2773 - 1 - Insulator, 550A
Specifications
Click the image below to view the full specification sheet
Compatible with
Lincoln Power MIG 256
Lincoln Power MIG 260
Lincoln Power MIG 350
Accessories
Using the Lincoln Magnum Pro 250LX Spool Gun is a breeze. First, connect it directly to your compatible Lincoln Power MIG machine, like the 256, 260, or 350. You don't need an extra adapter. When it comes to wire speed adjustment, you can do it right at the gun. Just turn the controls for fine - tuned settings, so you don't have to keep going back to the power source. For drive roll tension, use the large thumbscrew for small adjustments. If you're working with steel, you can use the set screw for a coarser adjustment.
As for the wire, it can handle different diameters. For aluminum, use wire with a diameter of .030 - 3/64 in. (0.8 - 1.2), and for steel, go for .025 - .035 in. (0.6 - 0.9).
When you're done using the spool gun, make sure to store it in a dry place. Regularly check the Magnum PRO expendables, like the contact tips. If they start to wear out, replace them to keep the arc - on time up. And always follow the safety instructions in the full specification sheet.
