Description

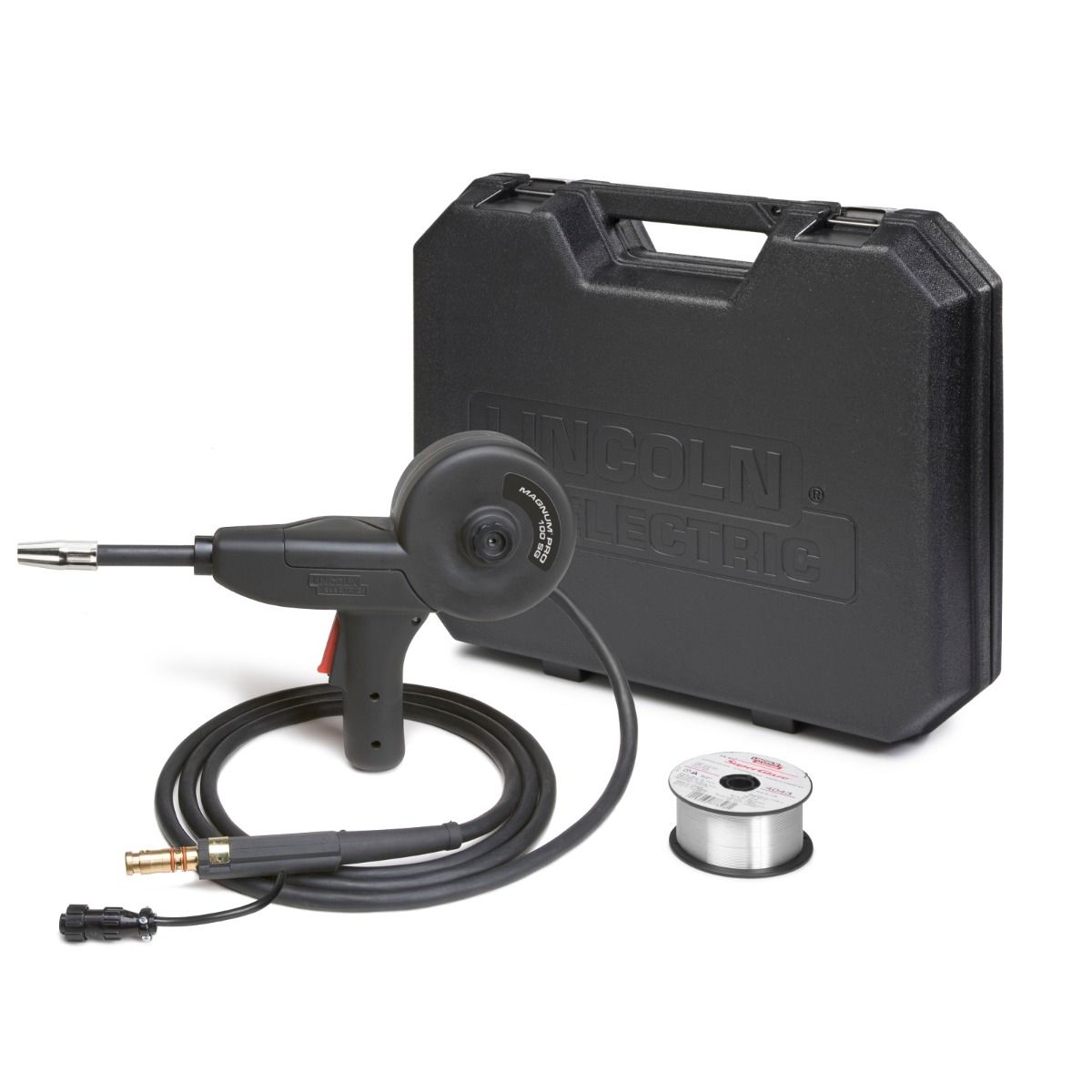

The Magnum Pro 100SG spool gun offers a budget - friendly way to achieve reliable and precise wire feeding when working with soft aluminum wire. It's a breeze to set up, whether you're an occasional welder or a seasoned pro.
- Premium Magnum PRO Expendables: Copper Plus contact tips and long - lift diffusers with Anti - Seize threads for better performance.
- Comes with a sturdy carrying case to safeguard the gun during transport and storage.
- Light as a feather at just 3.5 lbs, easy to handle.
- Works great with all aluminum alloys.
- Ergonomic grip for comfortable use.
- Full - travel mechanical trigger for smooth operation.
- No need for a bulky adapter.
- 10 ft gun cable for added flexibility.
It has an 8 - pin connection and is ONLY compatible with the Lincoln Power MIG 140 MP.
Included with Product
- Spool gun with 10ft cable
- Spool of .035 in. (0.9 mm) 4043 aluminum alloy wire
- .030 - .035 in. (0.8 - 0.9 mm) drive roll
- Contact tips (Qty. 3) KP2744 - 035T
- Adapter Kit
- Sturdy carrying case
Compatible With
PowerMIG 140
Specifications
Click to view full Spec Sheet
Accessories
Using the Lincoln Magnum Pro 100SG Spool Gun is quite straightforward. First, make sure it's properly connected to your Lincoln Power MIG 140 MP as it has an 8 - pin connection and is only compatible with this model. When setting up, load the .035 in. (0.9 mm) 4043 aluminum alloy wire onto the spool. Adjust the drive roll to the right setting, which can be between .030 - .035 in. (0.8 - 0.9 mm). Hold the gun with the ergonomic grip and use the full - travel mechanical trigger to start and stop the wire feeding. Since it's lightweight at 3.5 lbs, you can move it around easily while welding. Remember to use the sturdy carrying case when transporting or storing the gun to protect it. For maintenance, check the Copper Plus contact tips regularly. If they're worn out, replace them with the included ones. Also, make sure the Anti - Seize threads on the long - lift diffusers are clean and in good condition. This will keep your spool gun working well for a long time.
