Description

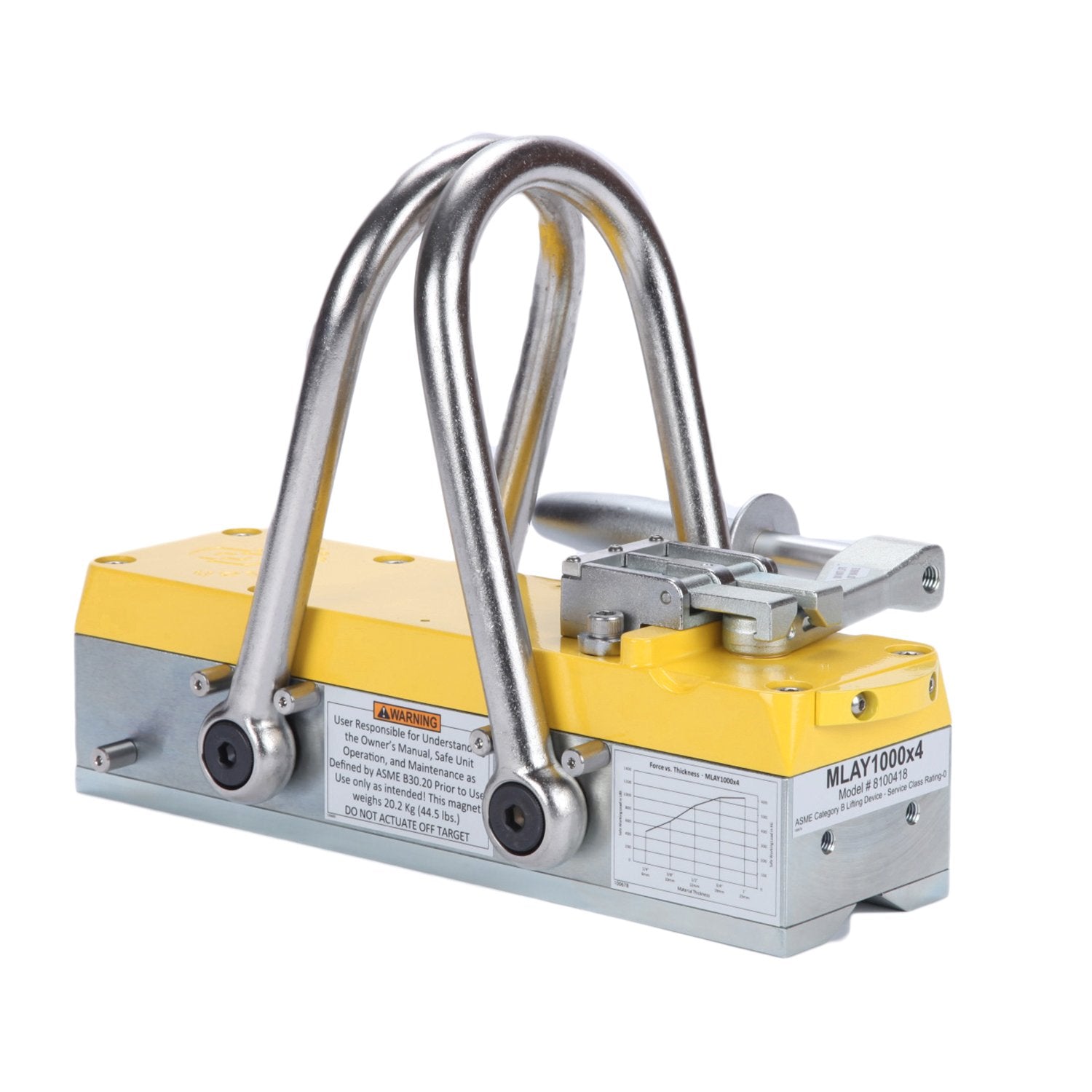

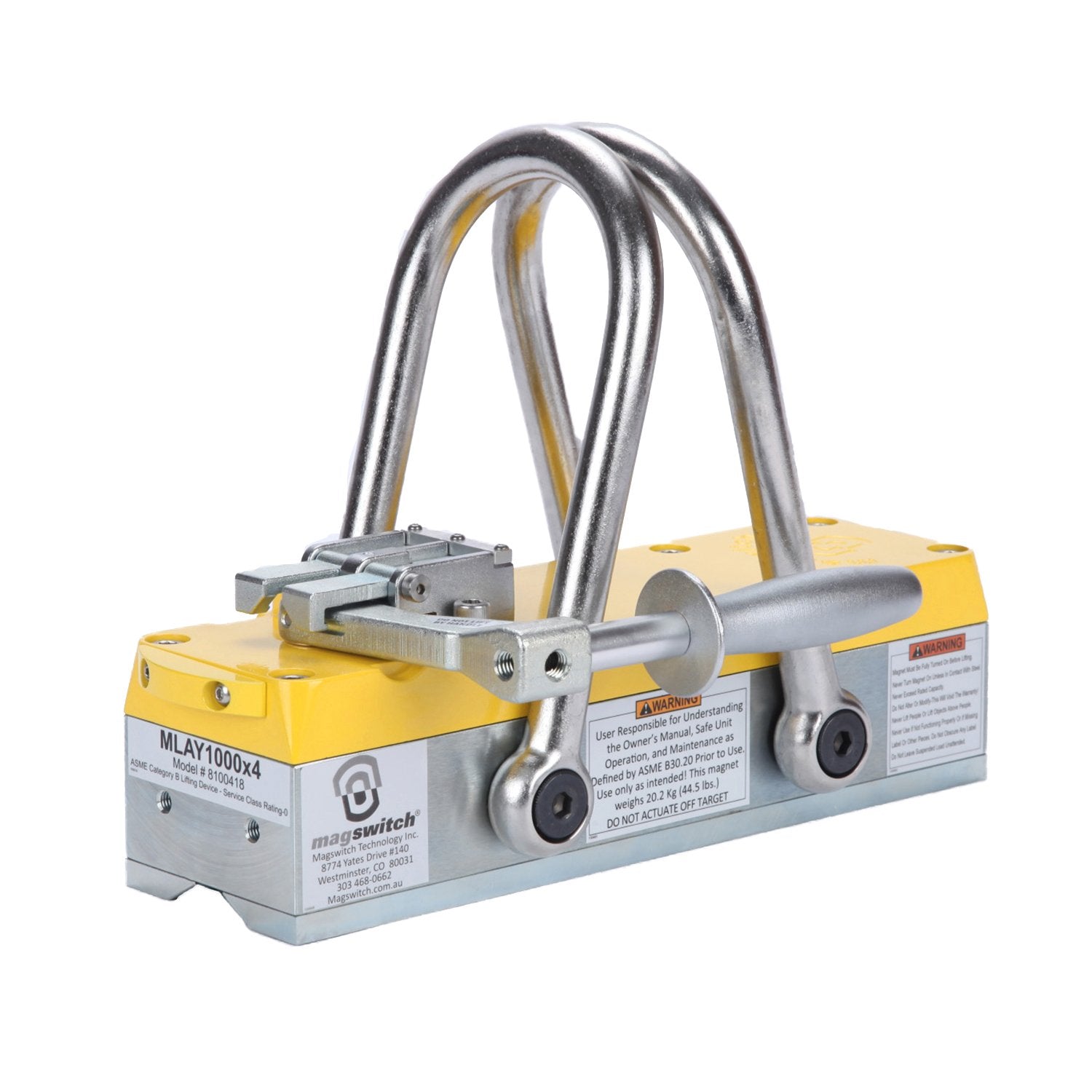

The Magswitch MLAY1000x4 lifting magnet is designed for heavy-duty tasks. It uses powerful magnet technology that doesn't need a power source. You can safely lock it in both On and Off positions, with a magnetic holding force of 3640 pounds. It has a dual lift hook for stable horizontal lifting and a single hook for vertical lifting. It has a strong hold on thin steel, with a 70mm deep field.
- It's compact, lightweight, and easy to operate.
- The pivoting hook lets you lift from horizontal to vertical.

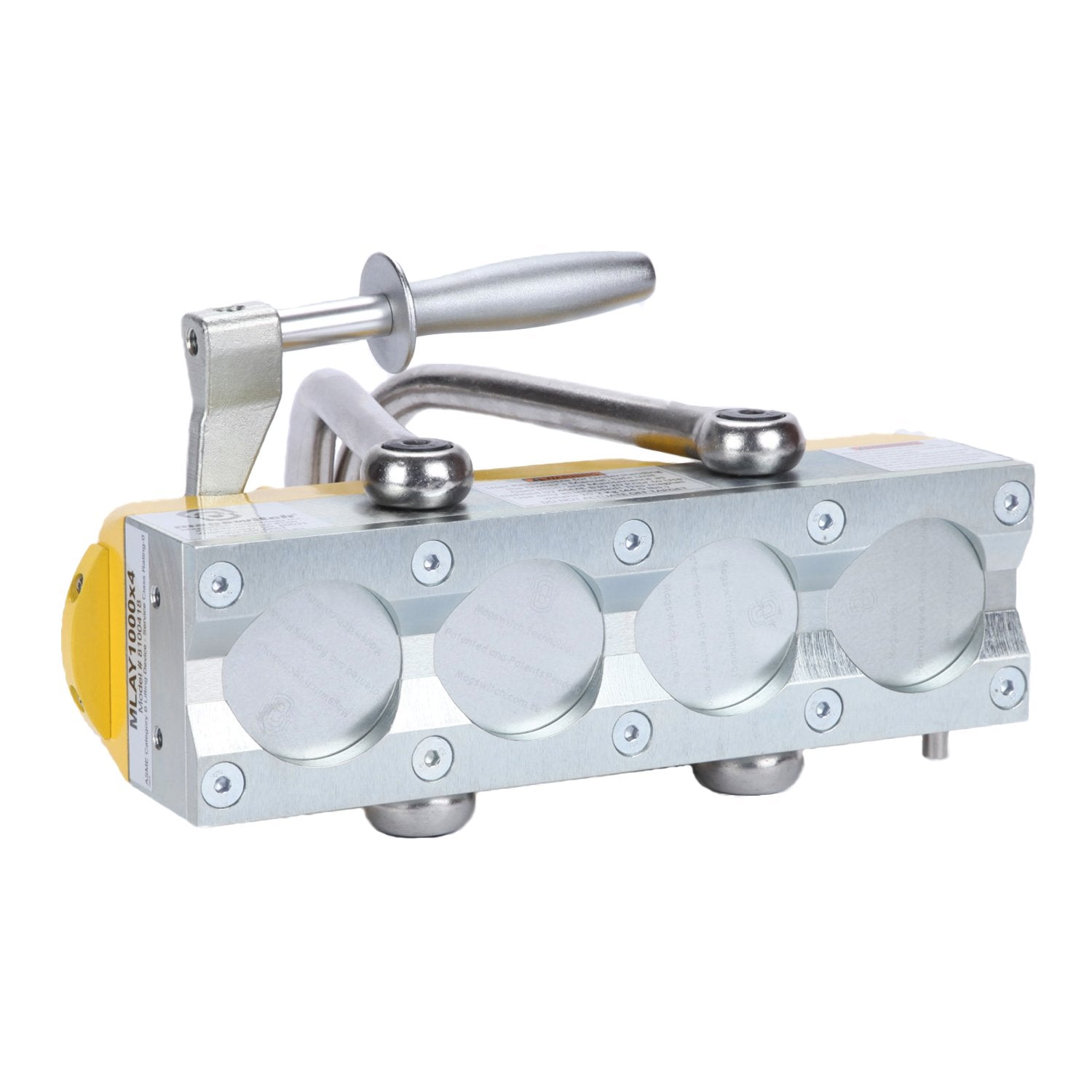

- The replaceable pole shoes ensure a long lifespan and can be customized to fit your needs.
- There's a lock on/off handle for convenience.
- It can lift flat objects or pipes.
- It performs well even with air gaps like rust, paint, and uneven surfaces.
- It works better on thin steel, allowing you to use a lighter magnet at a better price.
*This is a special order item and cannot be cancelled or returned.
Specifications
- Max Breakaway: 3640 lbs/1654 kg
- Safe Working Load: 1213 lbs/551 kg
- Full Saturation Thickness: 3/4” / 19.05mm
- Max Safe Shear: 283 lbs/128.6 kg
- Minimum Thickness for De-Stack: 3/4” / 19.05mm
- Net Weight: 45.2 lbs/20.5 kg
- Mounting Thread: M8x1.25
- Overall Height: 250.79 mm
- Magnetic Pole Footprint: 336mm x 97.6mm
Using the Magswitch MLAY1000x4 lifting magnet is easy. First, make sure the magnet is in the Off position before approaching the object you want to lift. Then, place it on the object. You can use the dual lift hook for horizontal lifting or the single hook for vertical lifting. To turn it On, simply use the lock on/off handle to activate the powerful magnetic force. When you're done, switch it back to the Off position. Remember, this is a special order item and can't be cancelled or returned. For maintenance, regularly check the replaceable pole shoes. If they're worn out, replace them to keep the magnet working well. Also, clean the magnet to remove any rust, paint, or debris that could affect its performance. It's important to stay within the safe working load and other specified limits to ensure safe use.
