Description

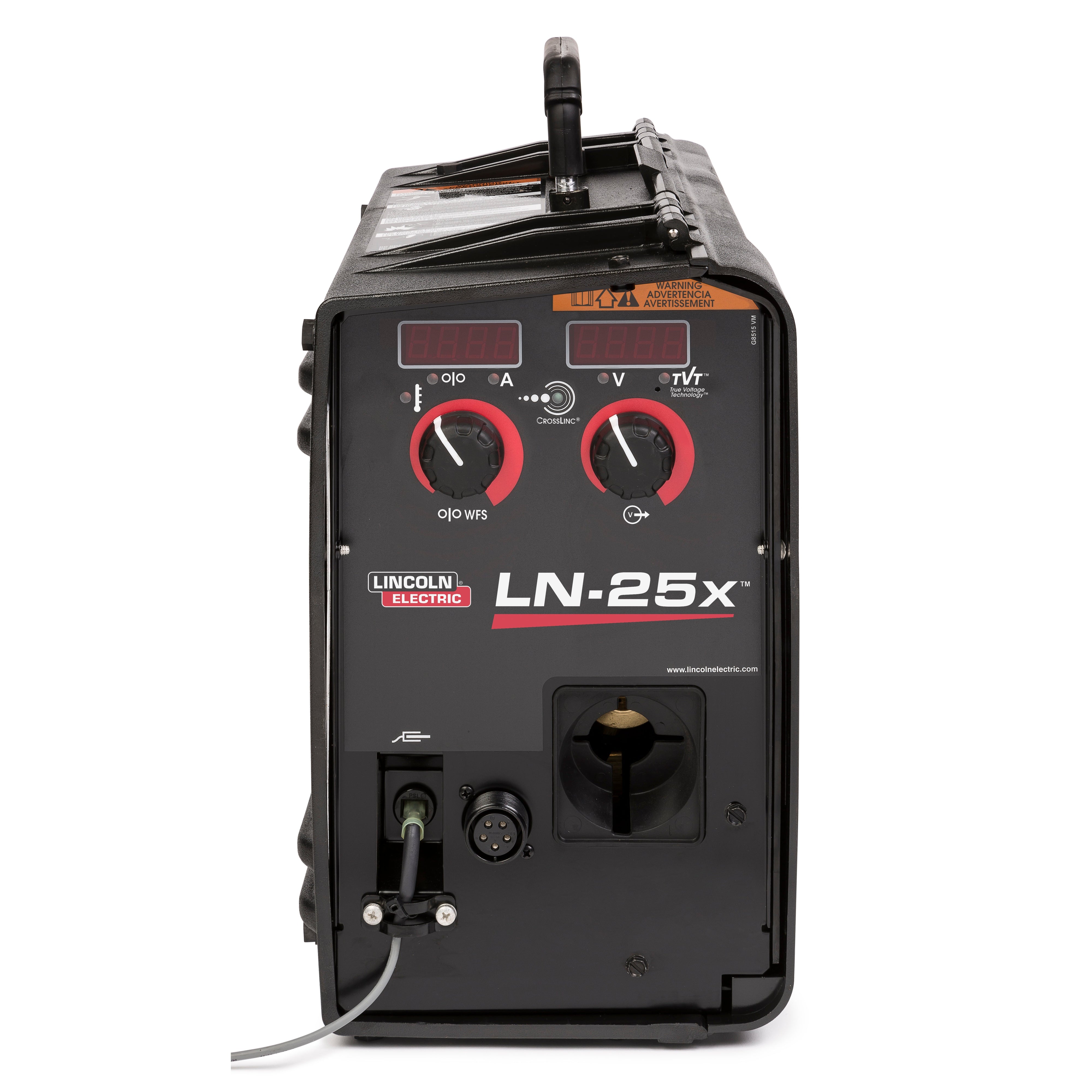

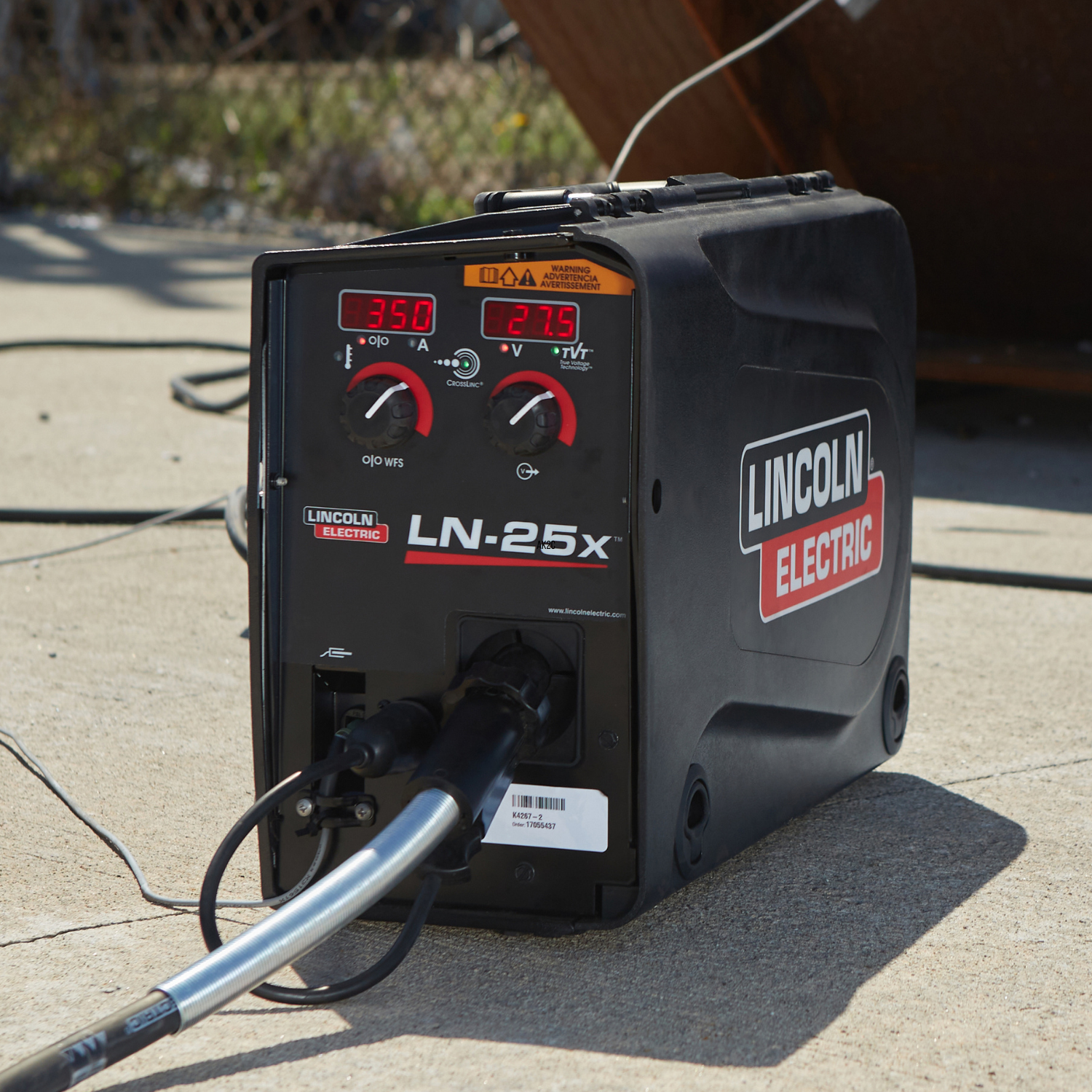

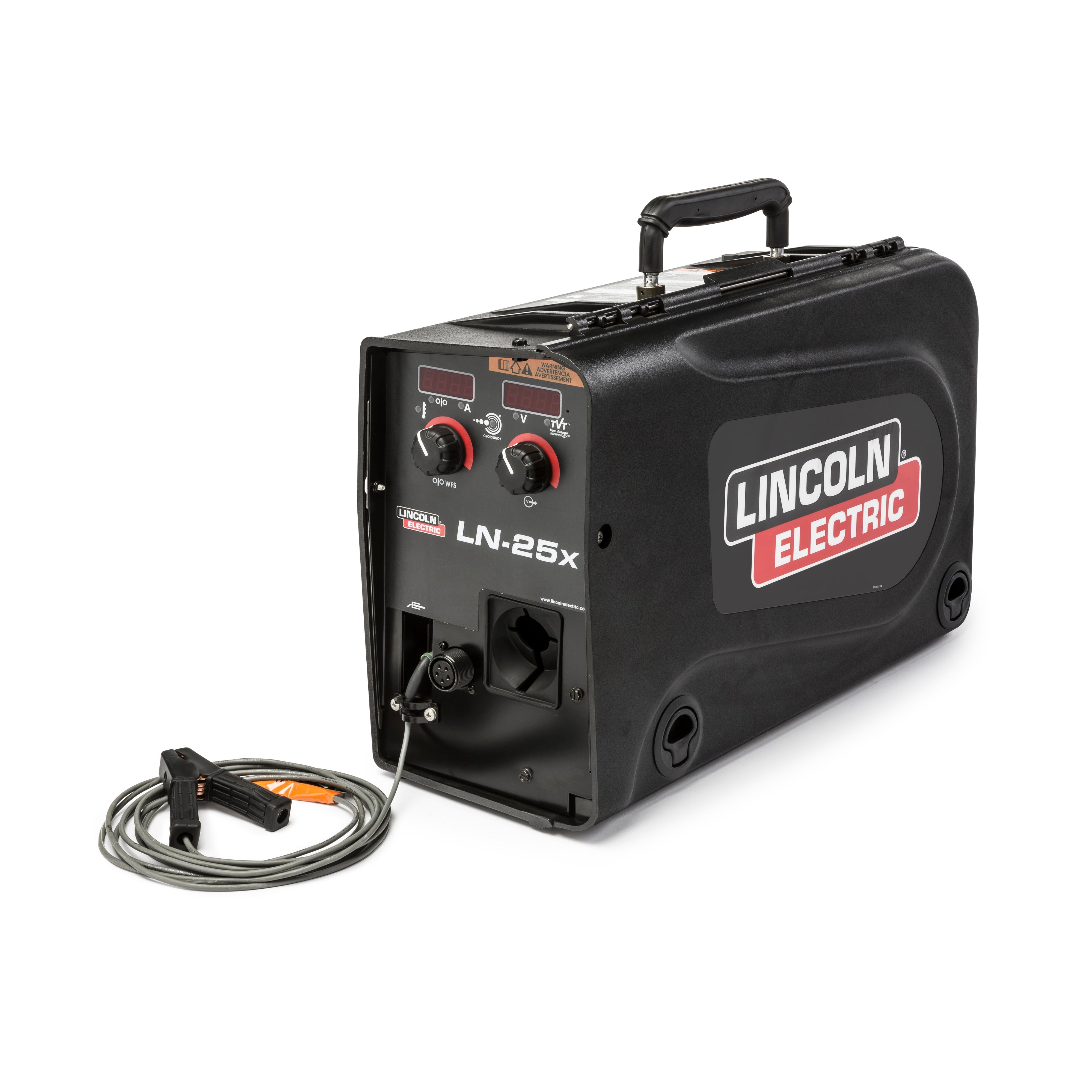

The Lincoln LN-25X Wire Feeder with CrossLinc is an amazing voltage-sensing feeder. It offers full remote control of voltage and amperage without any remote control cables. This makes it super convenient for welders on the job site.
Safety
By getting rid of cables, it reduces job site mess. It also stops unnecessary movement of people and cables around the site, keeping everyone safer.
Quality
With full control at the feeder, you can get the right settings for every single weld. It accurately compensates for voltage drop over long cable runs and prevents accidental machine adjustments, ensuring high - quality welds.
Productivity
It allows for faster setup with fewer cable connections. You don't have to keep going back to the power source for adjustments. With adjustments right at your fingertips, there's less rework, so you can get the job done quicker.
CrossLinc Technology
This exclusive Lincoln technology lets the operator adjust voltage at the point of use. It simplifies the work environment and cuts down on setup time. Fewer cables mean more control!
Features
- Maxtrac Wire Drive System: A heavy - duty cast aluminum system for reliable feeding and long - lasting durability.
- CrossLinc Technology: Control the output from a distance without extra cables.
- True Voltage Technology (TVT): Compensates for voltage drop, so you get the exact settings you set.
- Tachometer feedback: Ensures accurate wire feed speed.
- Trigger Interlock Switch: Offers operator comfort during long welds.
- Replaceable and Flame Resistant Case: Protects internal components and is easy to replace.
- Potted PC Boards: Protects against moisture and corrosion.
- Split Wire Guide: Reduces birdnesting and makes cleaning and alignment a breeze.
- Bright digital meters: Easy to view even in bright sunlight.
- Included Tweco style male connector on input power cable (Twistmate/Dinse connector on CE model).
- Optional Flowmeter: Allows for easy gas flow adjustment at the feeder.
- Weld Timers: Pre - Flow, Post - Flow, and Burn Back.
- Adjustable Wire Run - In Speed: For a softer start.
Included With Product
LN - 25X with Internal Contactor
Gas Solenoid
Arc Sensing Lead and Clip
2 Gun Bushings (K1500 - 2 installed; K1500 - 1 loose)
Specifications
Click to view full spec sheet
Accessories
Using the Lincoln LN-25X CrossLinc Wire Feeder is a breeze. First, set up the feeder by connecting the power cable. Make sure to use the included Tweco style male connector on the input power cable (or Twistmate/Dinse connector on the CE model). Then, connect the gas solenoid and the arc sensing lead and clip. When it comes to adjusting settings, you can control the voltage and amperage right at the feeder, thanks to the CrossLinc Technology. You don't need to go back and forth to the power source. To use it, just start the welding process as you normally would. The adjustable wire run - in speed gives you a softer start. And with the tachometer feedback, you can be sure of an accurate wire feed speed. As for safety, always remember that removing the cables reduces job site clutter and keeps you and others safe from unnecessary cable movement. When it comes to maintenance, the replaceable and flame - resistant case protects the internal components. If it gets damaged, it's easy to replace. The potted PC boards are protected from moisture and corrosion, but still, try to keep the feeder in a dry environment. The split wire guide is great for reducing birdnesting. You can easily clean it and align it for smooth operation. Also, if you have the optional flowmeter, use it to adjust the gas flow at the feeder. That's all you need to know to get the most out of your Lincoln LN - 25X CrossLinc Wire Feeder.
