Description
All - in - one System

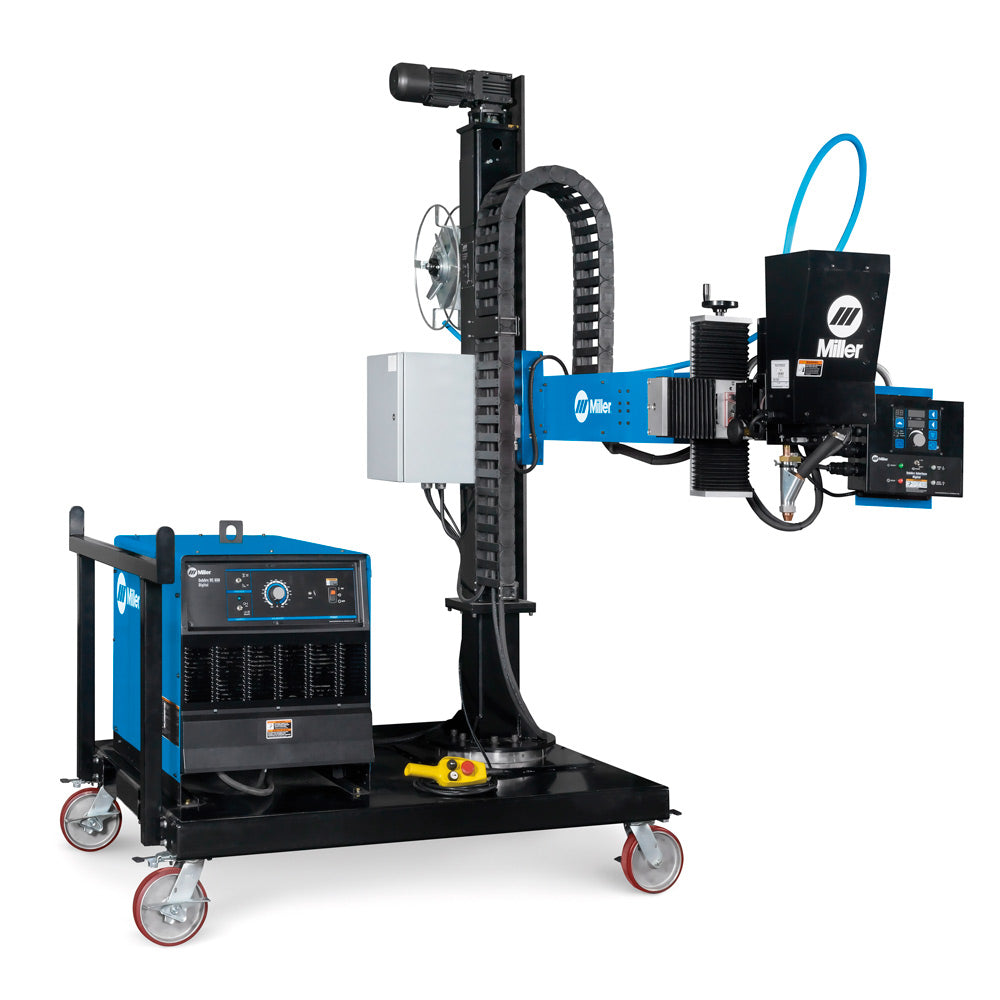

This self - contained system has the power source, column, and boom on a mobile platform. It offers a compact and ready - to - use submerged arc welding solution.
Easy Mobility
Equipped with built - in fork pockets and caster wheels, you can easily move the welding system to your workpiece.
Convenient Weld Head Positioning
Thanks to the integrated motorized column, manual telescoping boom, cross slides, and 360 - degree column rotation, it's a breeze to position the weld head.
Flexible Vertical Travel
The motorized column with pendant control provides 44 inches (1,117 mm) of vertical travel, suitable for workpieces of different heights.
Horizontal Travel
The manual telescoping boom offers 31 inches (787 mm) of horizontal travel.
Precise Torch Adjustment
Manual cross slides allow for 7.87 inches (200 mm) of fine vertical and horizontal torch adjustment.
Included With Product
- SubArc Portable Column & Boom
- SubArc Interface Digital
- SubArc Control Cable, 30 ft.
- SubArc Wire Drive 400 Digital Low Voltage
- Single Wire Straightener
- SubArc Flux Hopper Digital Low Voltage
- OBT 1200 SubArc Torch
- Wire Reel Assembly
- Spool Support Assembly
- SubArc Manual Slide
Specifications
Using this Miller SubArc DC 1000 welding system is easy. First, use the built - in fork pockets or caster wheels to move it to where your workpiece is. Then, use the pendant control to adjust the motorized column for the right vertical height. You can use the manual telescoping boom for horizontal positioning and the cross slides for fine - tuning the torch. When using, make sure the power source is stable and the cables are well - connected. For maintenance, regularly check the wire drive, flux hopper, and torch for any signs of wear or damage. Keep the system clean from dust and debris to ensure its long - term performance.
