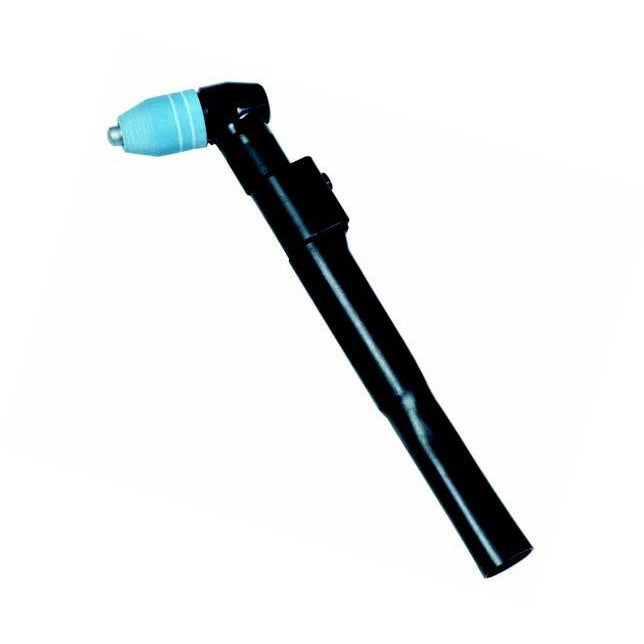

ESAB PT-27 Plasmarc 75deg Plasma Torch, 25ft - 21661

The ESAB PT - 27 Plasma Torch is the most compact 80 - amp torch available. It's engineered for top - notch cutting performance and easy handling, delivering clean, high - quality cuts. It has excellent cutting capacity, slicing up to 1 inch (25.4 mm) and severing up to 1 - 1/4 inches (31.75 mm). It offers great versatility as it can use shop air, cylinder air, or nitrogen. With pilot arc starting, it can even start through paint. You can choose between 25 - foot (7.6 m) or 50 - foot (15.2 m) line lengths. It has perfect electrode centering and intermittent cutting capability for grate or expanded metal work. It comes with three cutting nozzle sizes for more versatility. An improved spring - loaded seat prevents head burn - out, and it has a one - year warranty.

Using the ESAB PT - 27 Plasma Torch is easy. First, connect it to your power source and choose the right gas, like shop air, cylinder air, or nitrogen. Select the appropriate cutting nozzle size based on your project. Then, position the torch at the right distance from the material you want to cut. When starting, the pilot arc can even go through paint. For cutting, make slow and steady movements. Remember, it can cut up to 1 inch and sever up to 1 - 1/4 inches. For grate or expanded metal work, use the intermittent cutting feature. After use, turn off the power and gas. To keep it in good shape, regularly check the electrode centering. If you notice any issues with the spring - loaded seat, contact customer service. The torch comes with a one - year warranty, so if there are any major problems within this time, you're covered.
