Description

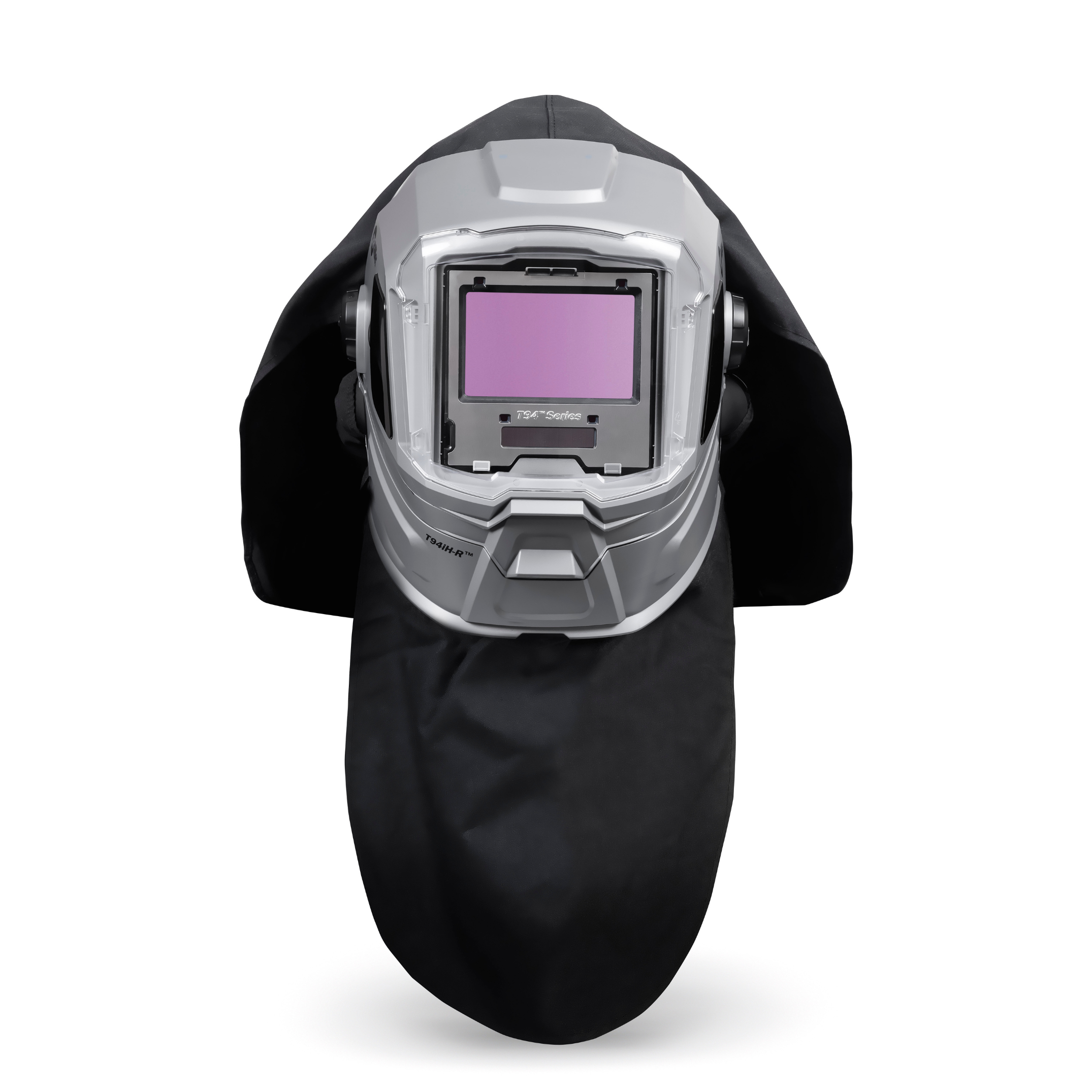

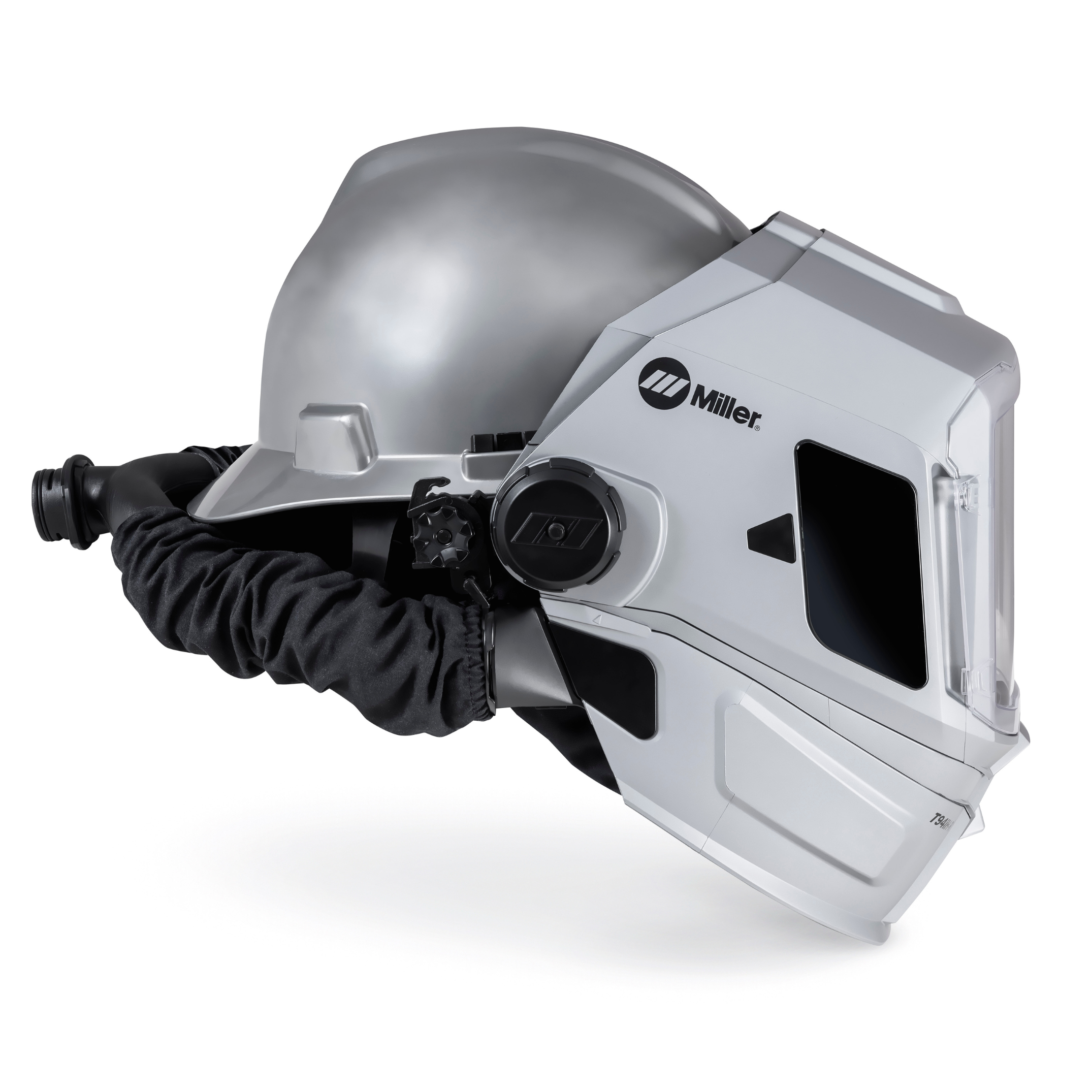

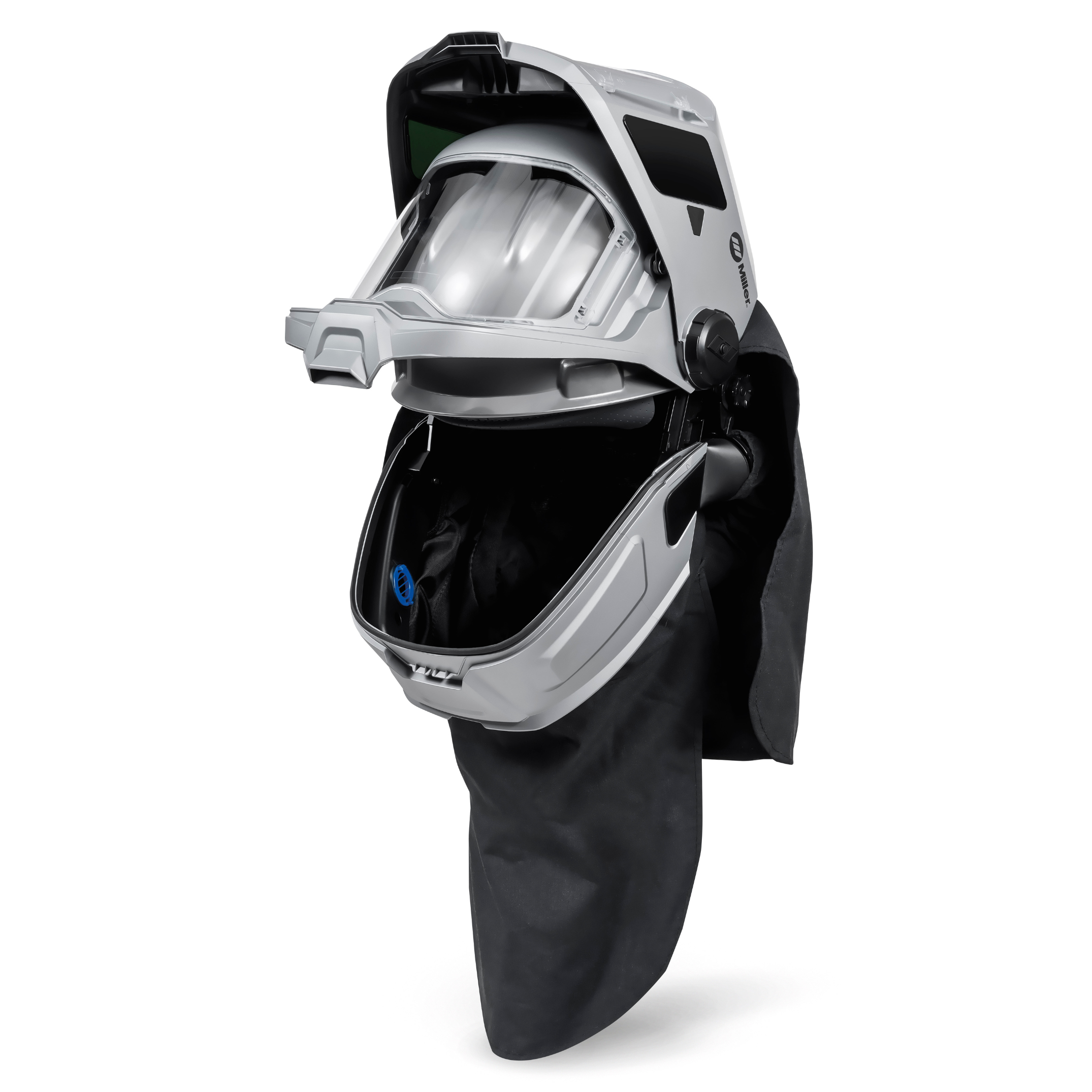

The new Miller Electric T94iH-R PAPR system comes with an integrated clear grind shield and a hard hat. It features the latest welding lens technology, weighs only 3 lbs, and has an optimized battery life that lasts over 8 hours on a single 3 - hour charge. Its comfortable design ensures all - day use in a safe work environment.
Assigned Protection Factor (APF)

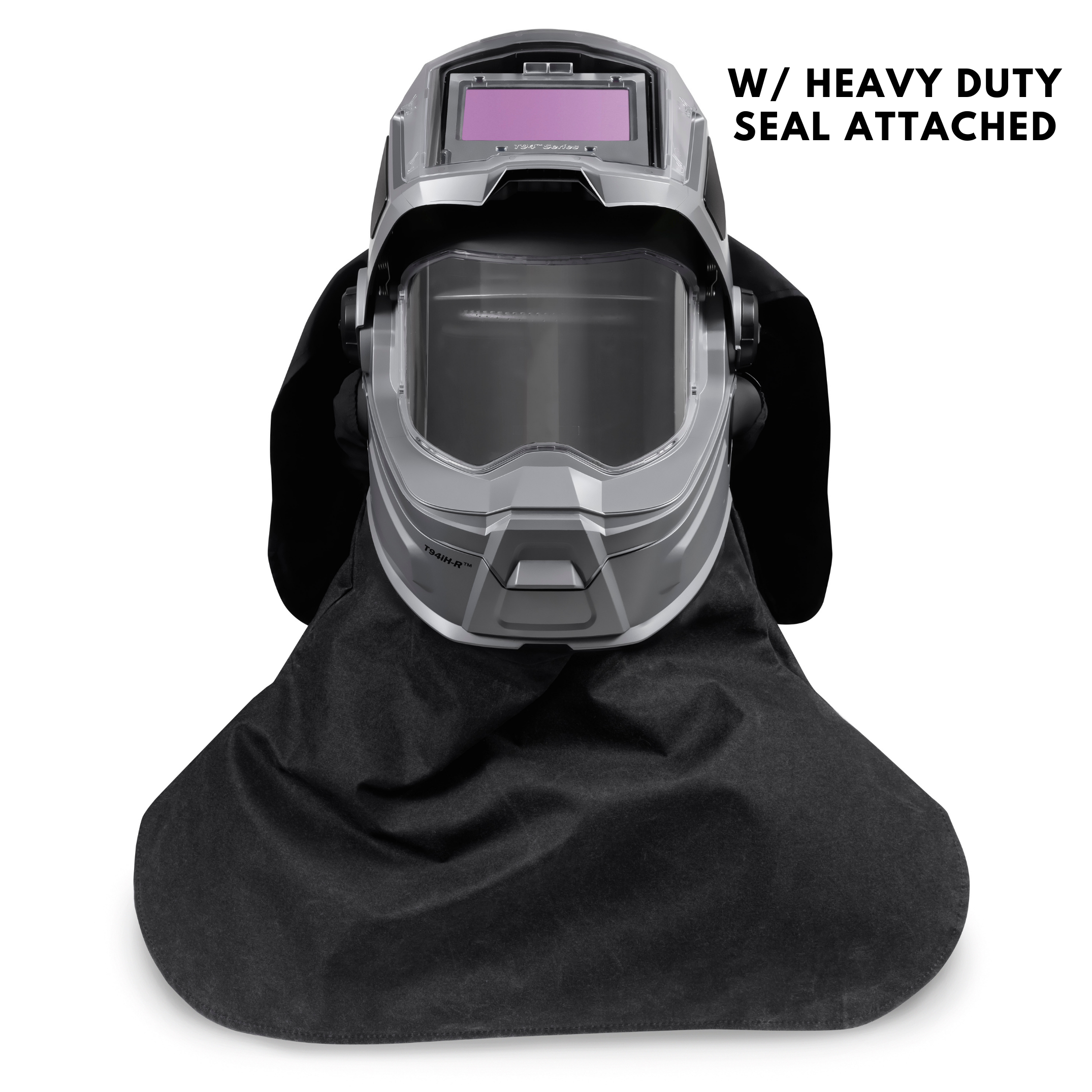

It has an APF rating of 25 with the standard head seal. Using the heavy - duty head seal (Part #287188) boosts the APF rating to 1000.

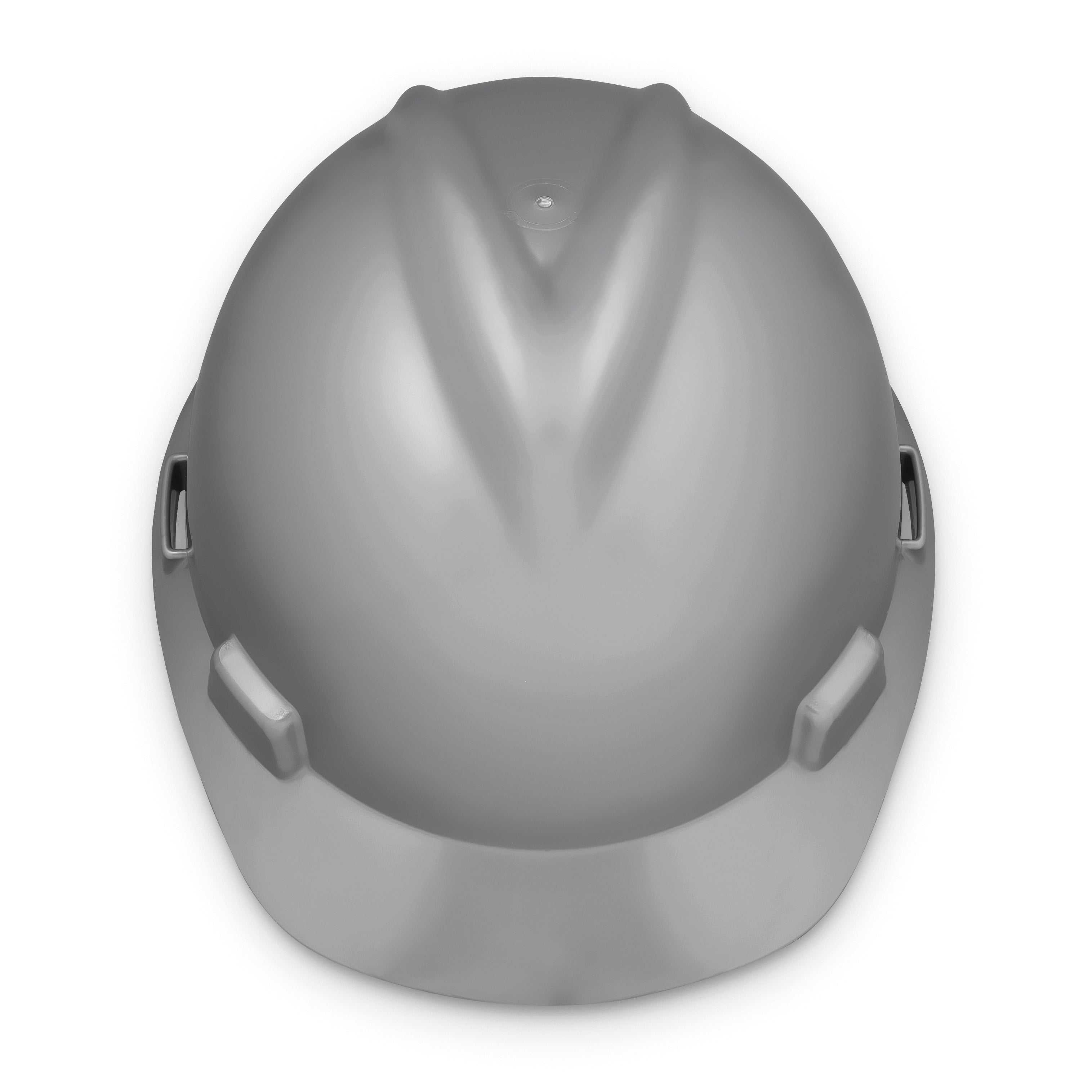

MSA V - Gard Hard Hat Cap
The V - design hard hat cap has a unique profile to deflect objects and offers extra protection during impacts, perfect for job sites that require hard hats.
Clear Light 2.0 Lens Technology
The latest lens technology offers high - definition optics for a clearer, brighter, and more realistic view before, during, and after each weld. The ADF can do half - shade adjustments, and the quick - release one - piece replacement lenses make it easy to change the outside cover lens.
Four arc sensors and four modes
It includes Weld, Cut, Grind, and X - Mode. The X - Mode senses the weld electromagnetically to reduce sunlight interference and continuously detects the arc even if sensors are blocked.

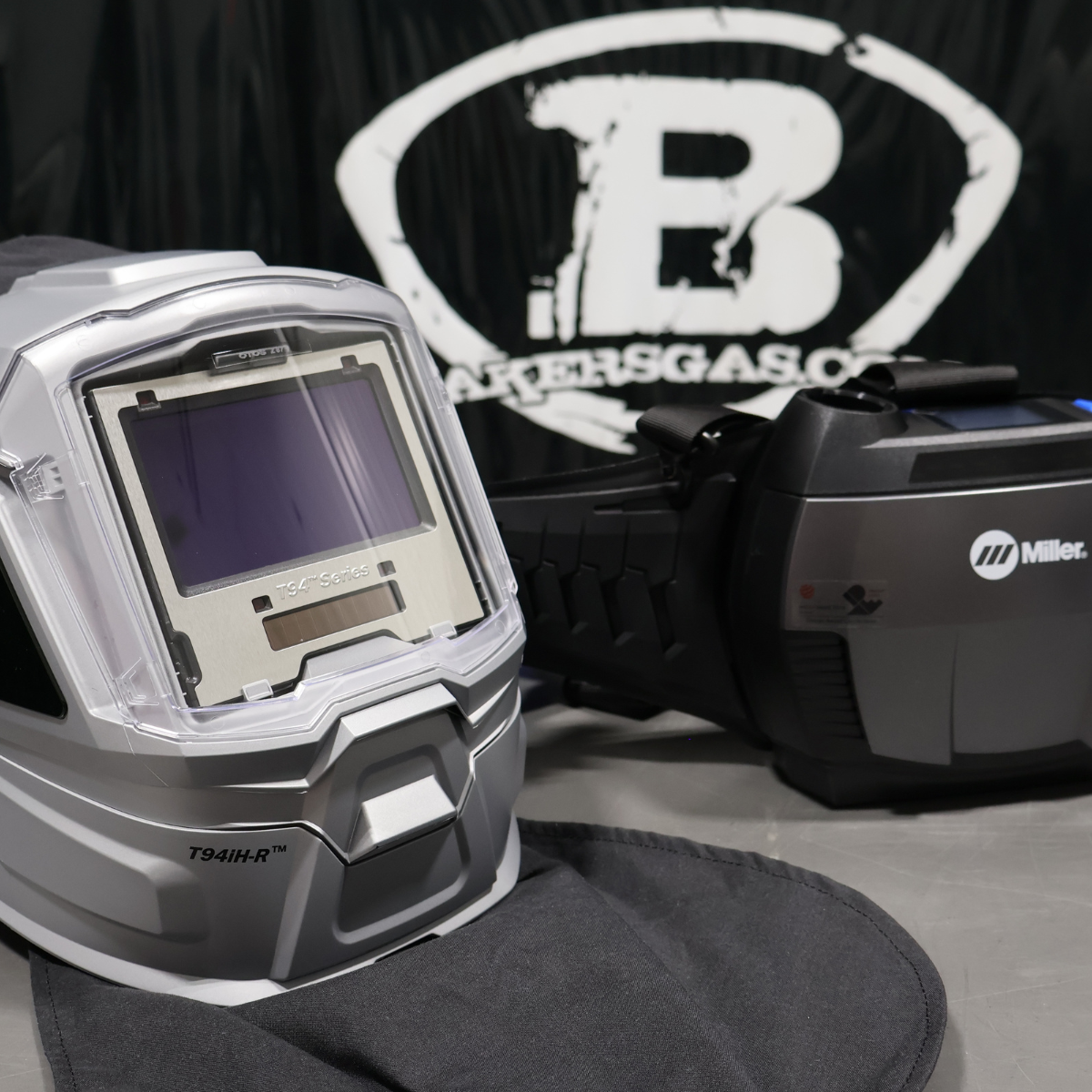

Premium Blower Assembly and Filtration
The blower assembly has three air speeds and an LCD display. You can see fan speed, filter timer, battery level, and current time. It also has audible and vibration alarms. The six adjustable air vents control airflow for user comfort, and the included shoulder straps evenly distribute the weight.
- Filter: HEPA
- APF: 25
- Low Flow Rate: > 175 lpm (10 - hour battery life)
- Medium Flow Rate: 195 lpm (9 - hour battery life)
- High Flow Rate: 215 lpm (8 - hour battery life)
- Weight: 3 lbs.

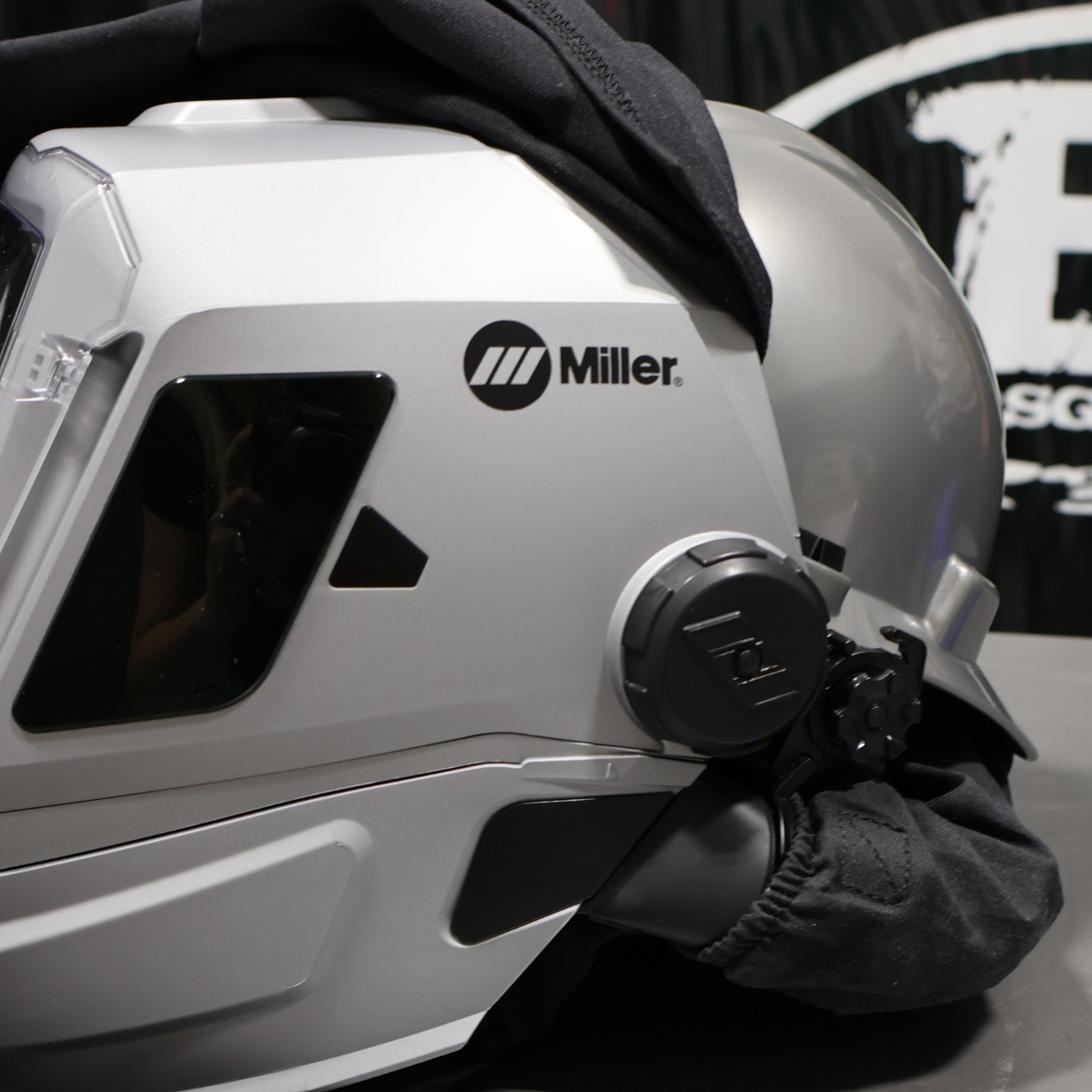

Shade 5.0 side windows and oversized clear HDV grind shield
The shade 5.0 side windows and the large clear HDV grind shield maximize downward and peripheral visibility. HDV technology provides a sharp, detailed view at any angle with minimal distortion.

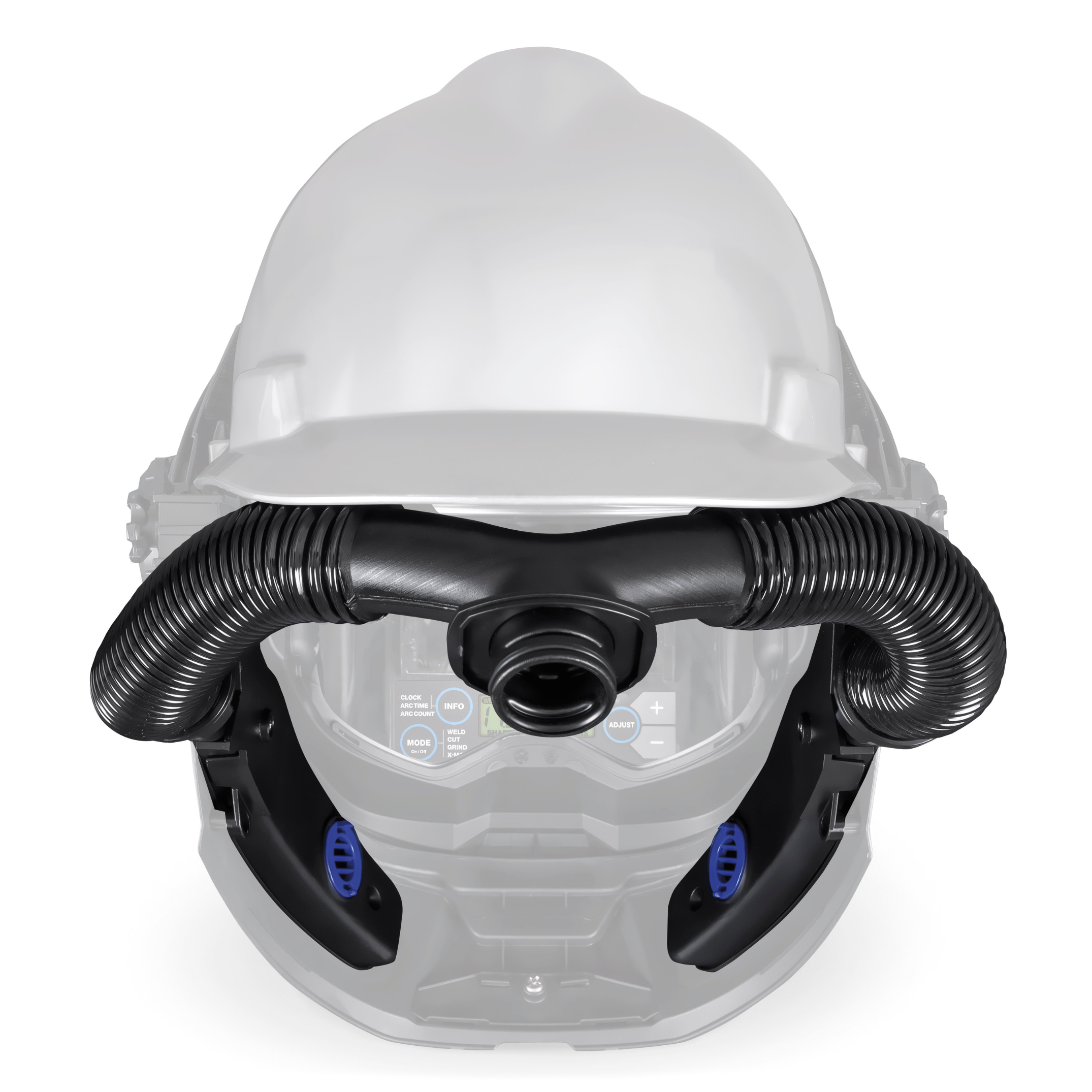

Lift to Talk Head Assembly
You can keep the PAPR on while communicating, which ensures continuous protection and productivity. You can access your face without removing the head assembly.

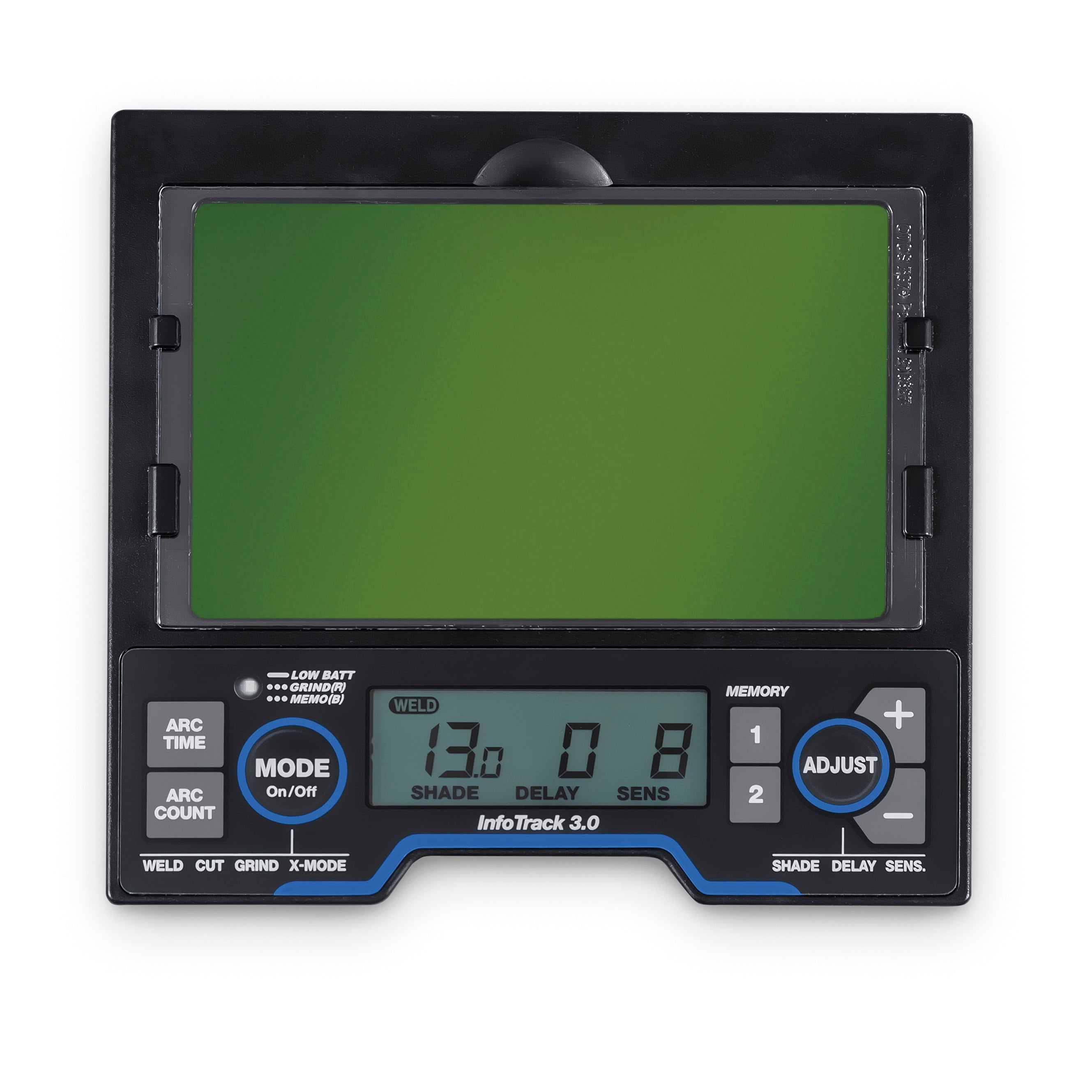

Digital controls
The digital controls let welders easily make precise adjustments to shade, delay, and sensitivity. InfoTrack 2.0 tracks and displays arc time and arc count, and there's a memory function to set two preset customized settings.
Compliance
- NIOSH 42 CFR 84 (PAPR system)
- ANSI Z87.1 2020 (helmet)
- ANSI/ISEA Z89.1, CSA Z94.1 (hard hat)
Included with Product
- Blower assembly
- HEPA filter
- (6) Prefilters
- Spark guard
- Breathing tube & tube cover
- Padded belt
- Comfortable shoulder straps
- (2) Lithium - ion batteries
- Battery charger
- Flowmeter
- Tool bag and helmet assembly
Specifications
Click the image below to view the full specification sheet
Video
Using your Miller PAPR 2 T94iH - R is straightforward. First, put on the hard hat and adjust the straps for a comfortable fit. Connect the breathing tube to the blower assembly and make sure the HEPA filter is properly installed. Power on the device using the digital controls, and you can select the appropriate air speed according to your needs. You can also use the digital controls to adjust the lens shade, delay, and sensitivity. When welding, choose the right mode among Weld, Cut, Grind, and X - Mode. Remember, charging the lithium - ion batteries takes about 3 hours, and you can use the device for over 8 hours on a single charge. For maintenance, regularly check the filter. Replace the pre - filters every so often to ensure good air quality. If you need to replace the outside cover lens, use the quick - release one - piece replacement lenses. Keep the device clean and dry when not in use. Also, follow the compliance regulations such as NIOSH 42 CFR 84 for the PAPR system, ANSI Z87.1 2020 for the helmet, and ANSI/ISEA Z89.1, CSA Z94.1 for the hard hat.
