Description
The Hypertherm Deluxe Cutting Guide for SYNC torches is a breeze to use and set up with your plasma cutter. It allows you to cut straight lines and perfect circles effortlessly. This all - in - one kit equips you with everything needed to cut on nearly any surface!
- Enables you to create consistent and accurately measured circles on workpieces
- Cuts circles with diameters ranging from 3' to 20'
- Can be used as a stand - off guide and in beveling applications
- Utilizes magnets or suction cups for stable cuts on almost any surface

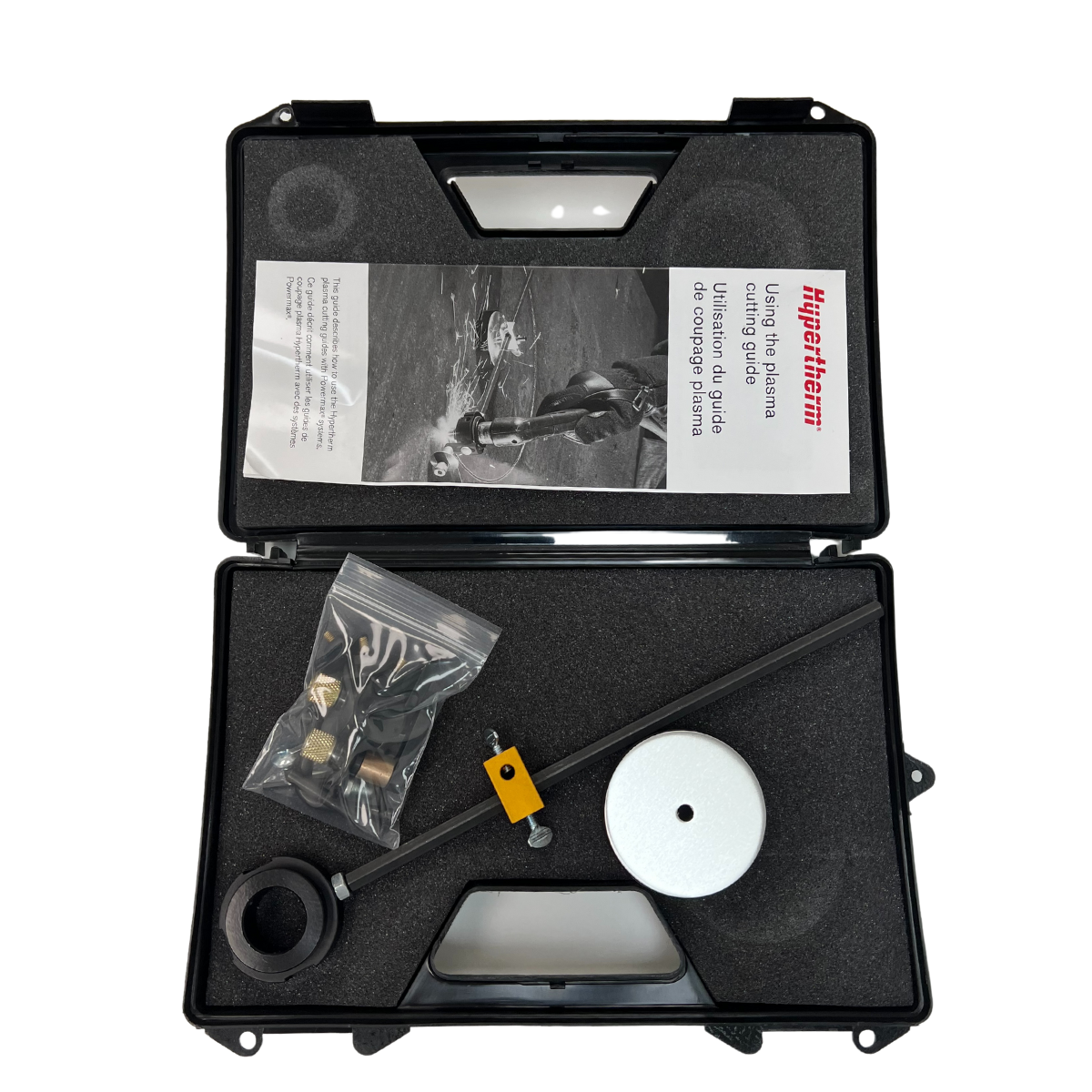

Included with Product
- Rotating torch cap holder
- 2 metal wheels
- Adjustable Axles
- 11' arm
- Center pin and holder
- Magnetic base
- 4 suction cups for non - metallic material
- Plastic carry case
Using this Hypertherm cutting guide is easy. First, set up the kit with your plasma cutter. Attach the rotating torch cap holder to the torch. If you're working on a metal surface, use the magnetic base for a stable cut. For non - metallic surfaces, the suction cups are there to do the job. To cut circles, adjust the 11' arm to your desired diameter (which can range from 3' to 20'), then place the center pin and holder at the center point. Start your plasma cutter and slowly rotate the guide to cut the circle. When using it as a stand - off guide or in beveling applications, follow similar attachment steps. Remember to keep the metal wheels clean and lubricate the adjustable axles regularly. Store the kit in the plastic carry case when not in use to protect it from damage.
