Product Description

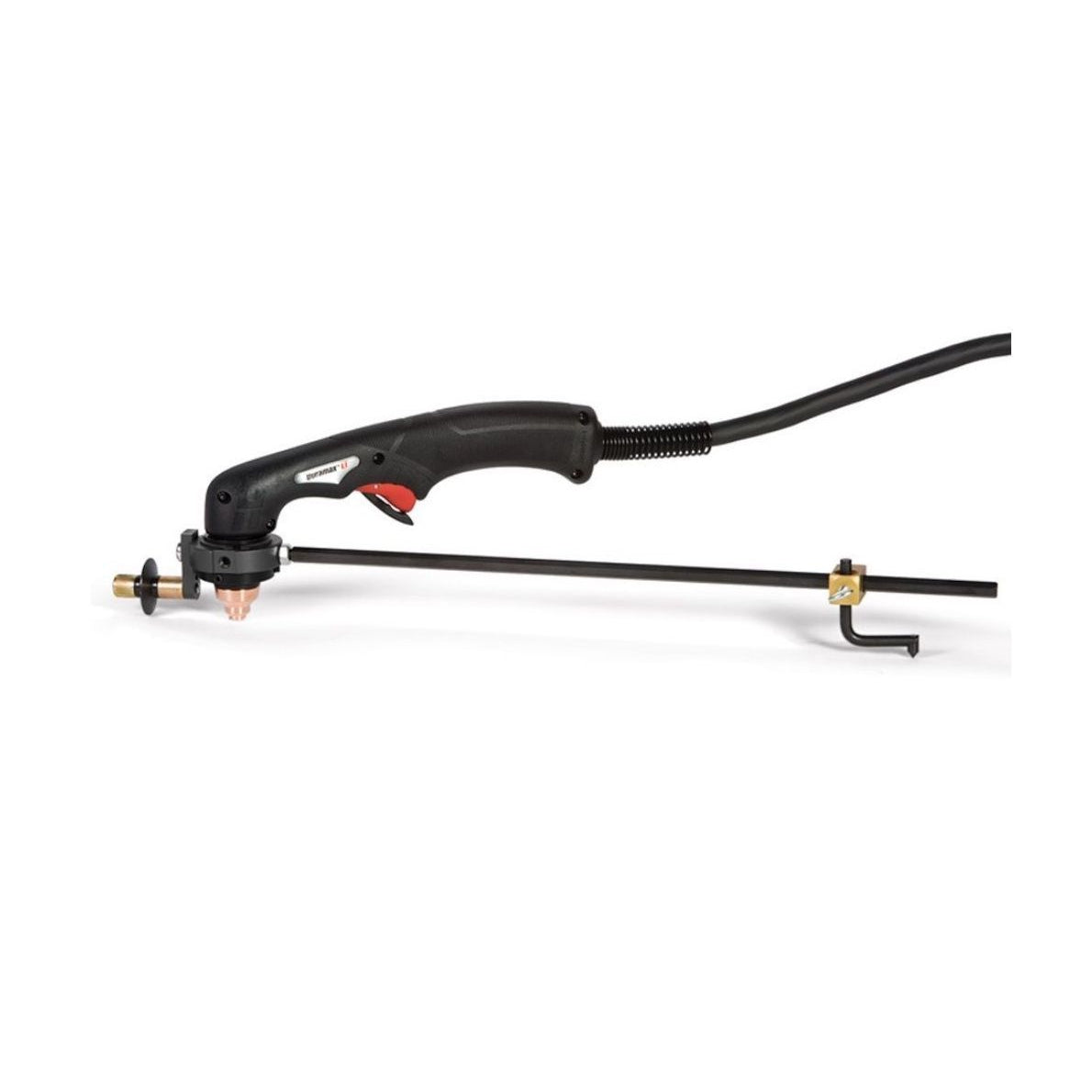

This Hypertherm circle cutting guide is a must - have for Powermax 30, 45, 65, 85, 600, 1000, 1250, and 1650 users. It offers a super - quick and easy setup, allowing you to cut accurate circles up to 28' (70 cm) in diameter. It can also be used as a stand - off guide for straight and bevel cuts. Note that it's not for use with Duramax Hyamp torches. The guide features an adjustable point pivot, stabilizing wheels, and a torch head bushing, ensuring consistent and accurate circles on your workpieces. Key features include: facilitating consistent circle cutting, cutting circles from 4' - 28' in diameter, being useful for stand - off and beveling, requiring a dimple in the circle center (use the Deluxe Kit 027668 for non - dimple centers). Made in the USA. Included with the product are a rotating torch cap holder, 2 metal wheels, adjustable axles, a 15' arm, and a center pin and holder.
Using this Hypertherm circle cutting guide is easy. First, make a dimple in the center of the circle you want to cut. If you don't want a dimple, you can use the Deluxe Kit 027668. Then, set up the guide using the included rotating torch cap holder, 2 metal wheels, adjustable axles, 15' arm, and center pin and holder. Adjust the length according to the diameter of the circle you need, which can range from 4' to 28'. When using it as a stand - off guide for straight and bevel cuts, make sure to position it correctly. Remember, this guide is not for use with Duramax Hyamp torches. For maintenance, keep the guide clean after each use. Check the adjustable point pivot, stabilizing wheels, and torch head bushing regularly to ensure they are in good condition.
