Description
Superior Wire Feeding
The AccuLock consumables system precisely centers and locks the liner at the front and back of the gun. This ensures a perfect wire feed path from the feeder to the contact tip, reducing issues like burnbacks, birdnesting, and unstable arcs.
Efficient Cooling Tail
The contact tip tail is cooled inside the diffuser by shielding gas, enhancing performance.
Tapered Electrical Connection
The tapered connection firmly locks the contact tip to the diffuser, providing excellent electrical conductivity.
Swift Tip Replacement
Coarse threads make replacing the contact tip a quick process.
Secure Fit
The threaded nozzle stays tight during use and cleaning, thanks to the steel retaining ring on the diffuser.
*AccuLock S series consumables are extra durable and strong, perfect for industrial use. Use either all Acculock or all Acculock S consumables; don't mix series.
Included with Product

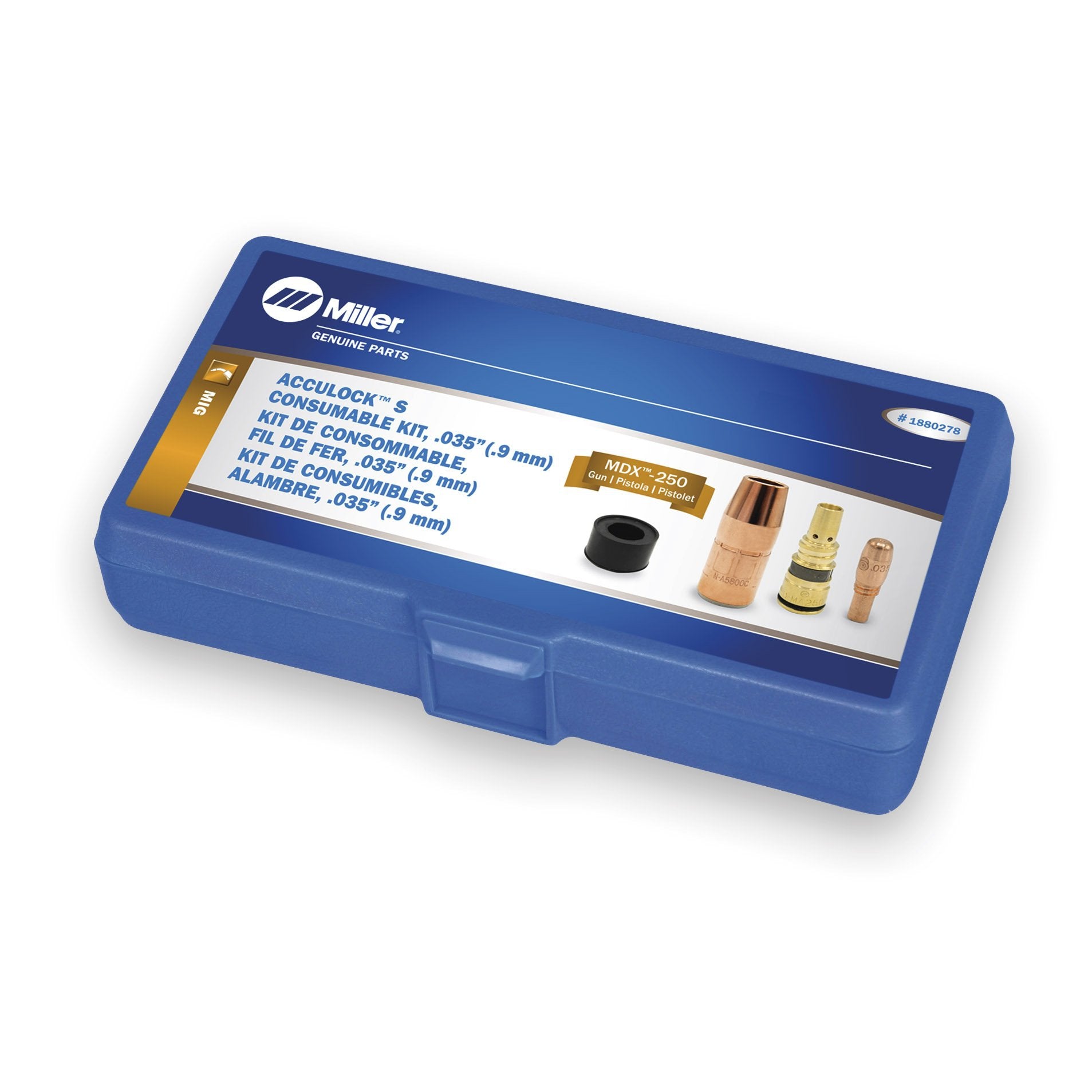

Each standard blue kit has:
- 10 Contact Tips
- 1 Diffuser
- 1 Nozzle
- 1 Nozzle Insulator
- Blue storage case

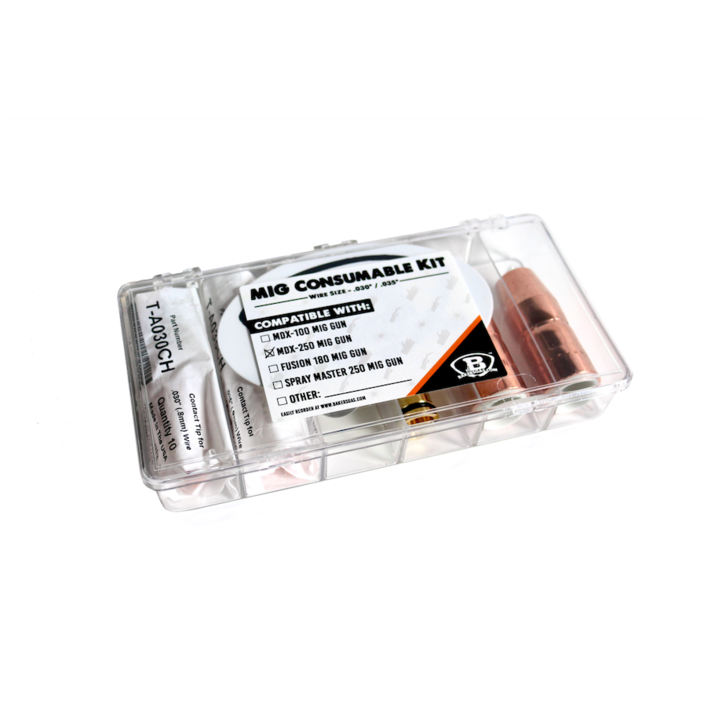

1299MDX250 .030/.035 Kit includes:
- Miller AccuLock S .030' Contact Tips, 10/pk - T - A030CH
- Miller AccuLock S .035' Contact Tips, 10/pk - T - A035CH
- Miller AccuLock S Thread - On Nozzle, 2/pk - N - A5800C
- Miller AccuLock S Diffuser - D - MA250
- Miller Electric Sticker
- Baker's Gas Sticker
- Clear Divided Storage Container
MDX MIG Gun Specifications
Click to view the Spec Sheet.
MDX Consumable Chart
Click to view full chart.
Accessories
Using this Miller AccuLock S MDX - 250 MIG consumable kit is straightforward. First, make sure to select the right contact tip according to your project needs. You can easily replace the contact tip as the coarse threads speed up the process. When using the gun, the AccuLock system ensures a smooth wire feed, so you don't have to worry much about burnbacks or other wire - related issues. The shielding gas cools the contact tip tail, which helps maintain good performance. The tapered connection between the contact tip and the diffuser gives you great electrical conductivity. Just be careful not to mix AccuLock and AccuLock S series consumables as it's not recommended. After use, keep the components in the provided storage case to protect them. When cleaning the nozzle, the steel retaining ring on the diffuser keeps it tight. Regularly check the wire feed path for any blockages and clean the contact tip if it shows signs of wear. That's it! Enjoy your welding projects with this high - quality kit.
