Description
ADVANCED YET USER-FRIENDLY

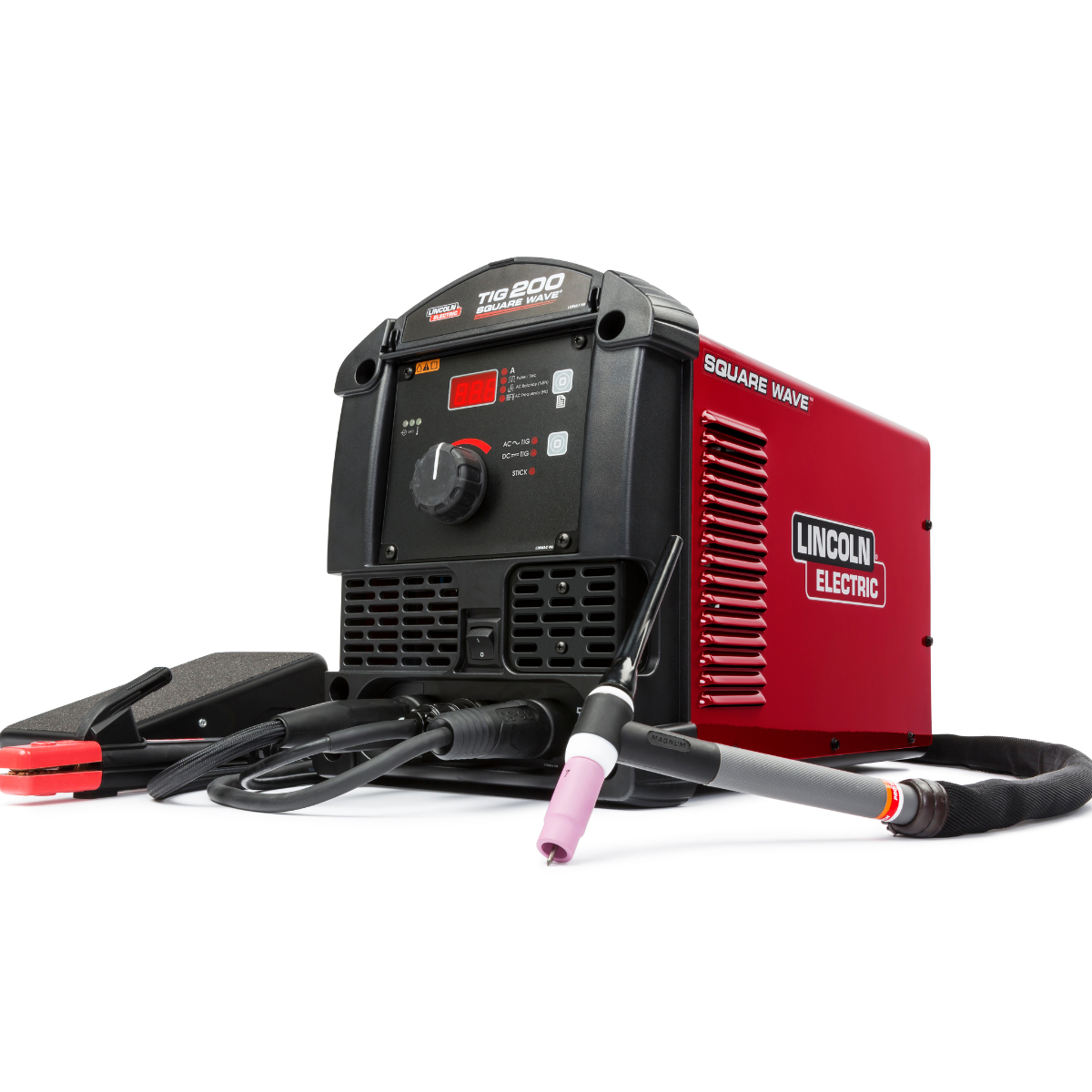

The Square Wave TIG 200 is a handy portable welding machine for hobbyists, makers, small fabricators, and craftsmen. It's a great tool to boost your welding skills. As you get more confident, you can unlock its extra features. It offers smooth AC TIG welding on aluminum and DC TIG welding on steel, stainless steel, and chrome - moly. With its easy - to - use interface, you can set it quickly and start welding right away. This machine combines advanced functions with a simple user interface and a useful pulse feature. It can TIG weld up to 3/16' aluminum or 3/8' steel, so it won't let you down no matter your skill level.
FEATURES
- Easy machine setup with a simple user interface
- Pulse mode helps you become a better TIG welder faster

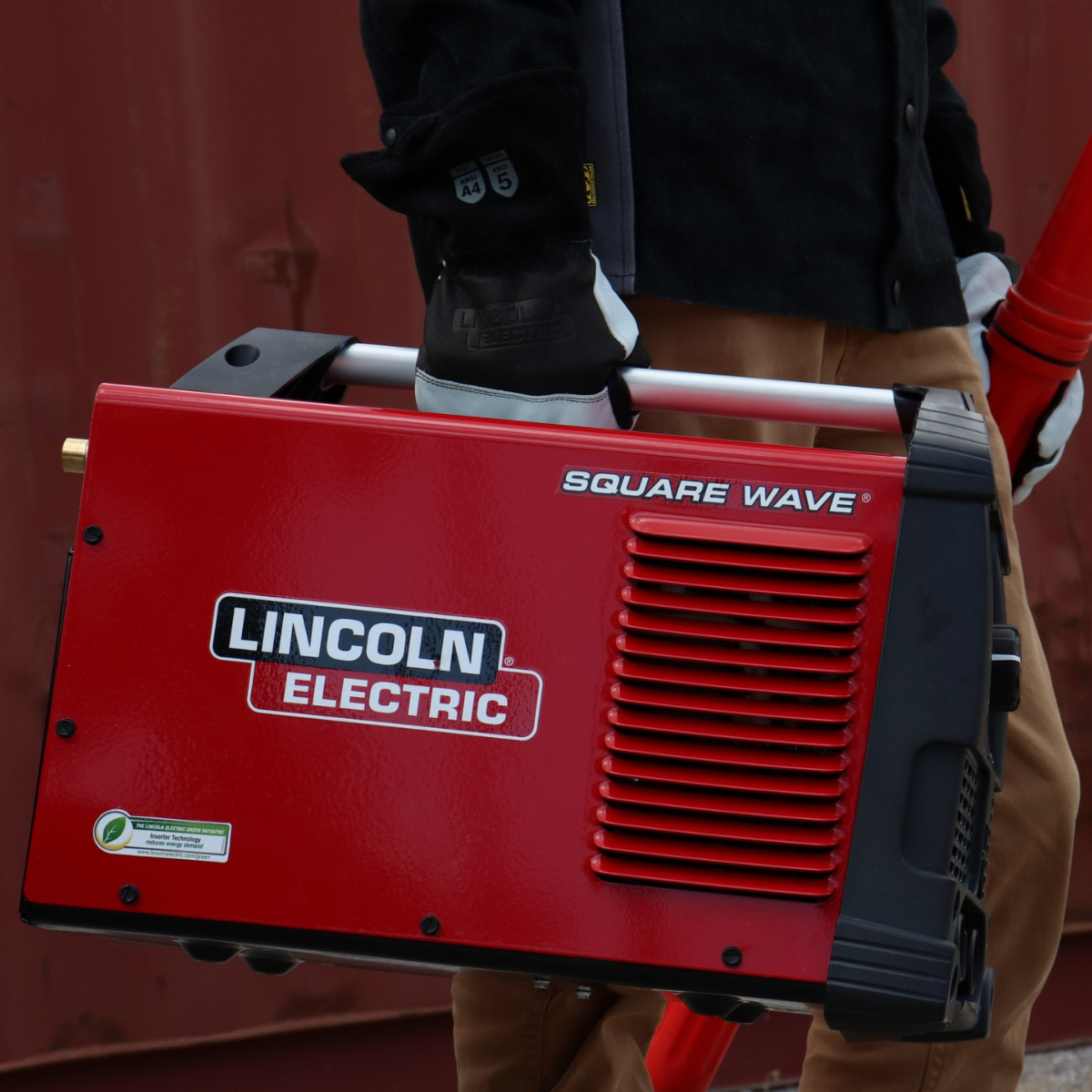

- Lightweight and portable, weighing only 46 lbs.
- Works with standard 120V or 230V circuits

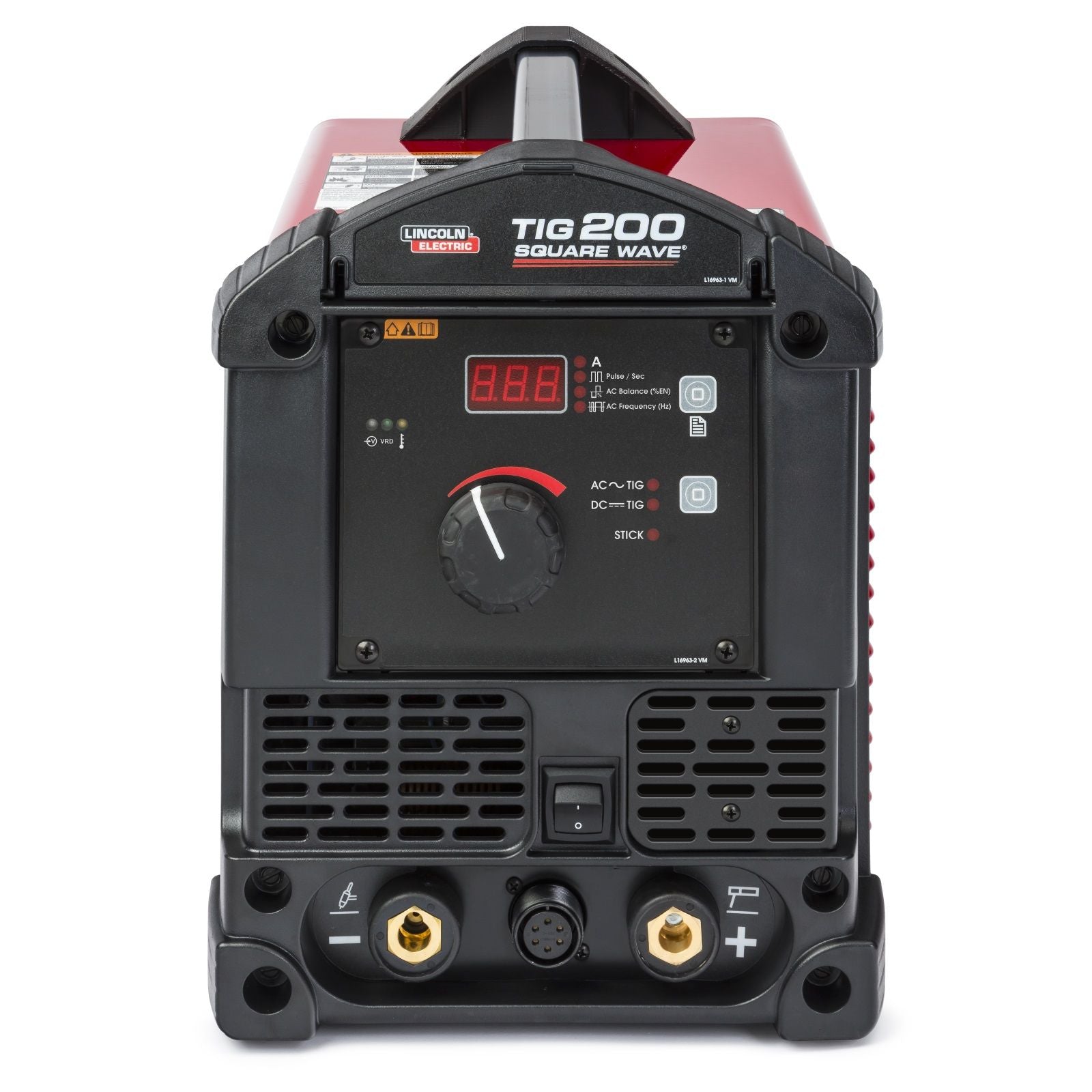

- LED display with indicator lights
- Output Range: 120V Tig (10 - 125A), Stick (10 - 110A)
- Output Range: 230V Tig (10 - 200A), Stick (10 - 170A)
- Rated Output: 230V Tig (200A @ 25%), (130A @ 60%)
- Pulse: 0.1 - 20 (Pulses Per Second)
TIG ALUMINUM
- High - frequency start for excellent aluminum welding
- Adjustable arc configurations for different needs
- Built - in settings for better cleaning action
TIG & STICK - ONE POWERSOURCE
- Perfect for TIG welding when precision and bead appearance matter
- Stick welding option for outdoor jobs or thicker materials
*The Square Wave TIG 200 can weld up to 3/8' steel and 3/16' aluminum.

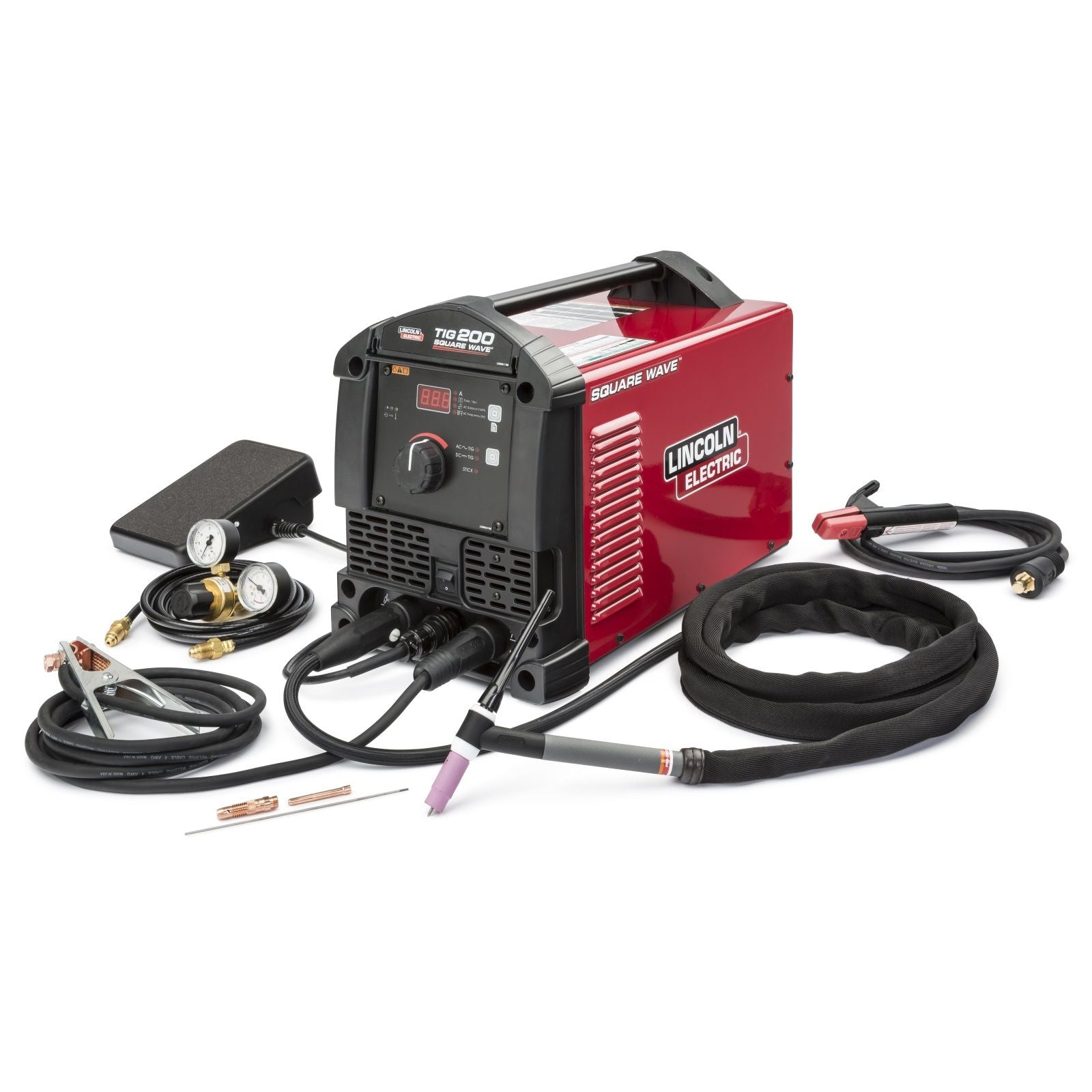

Included with Product
- PTA - 17 Series 150 Amp Air - cooled TIG Torch with flexible head and ultra - flex cable assembly and TIG torch parts
- Foot Amptrol
- Regulator/Flowmeter with gas hose
- Stick electrode holder
- Ground clamp

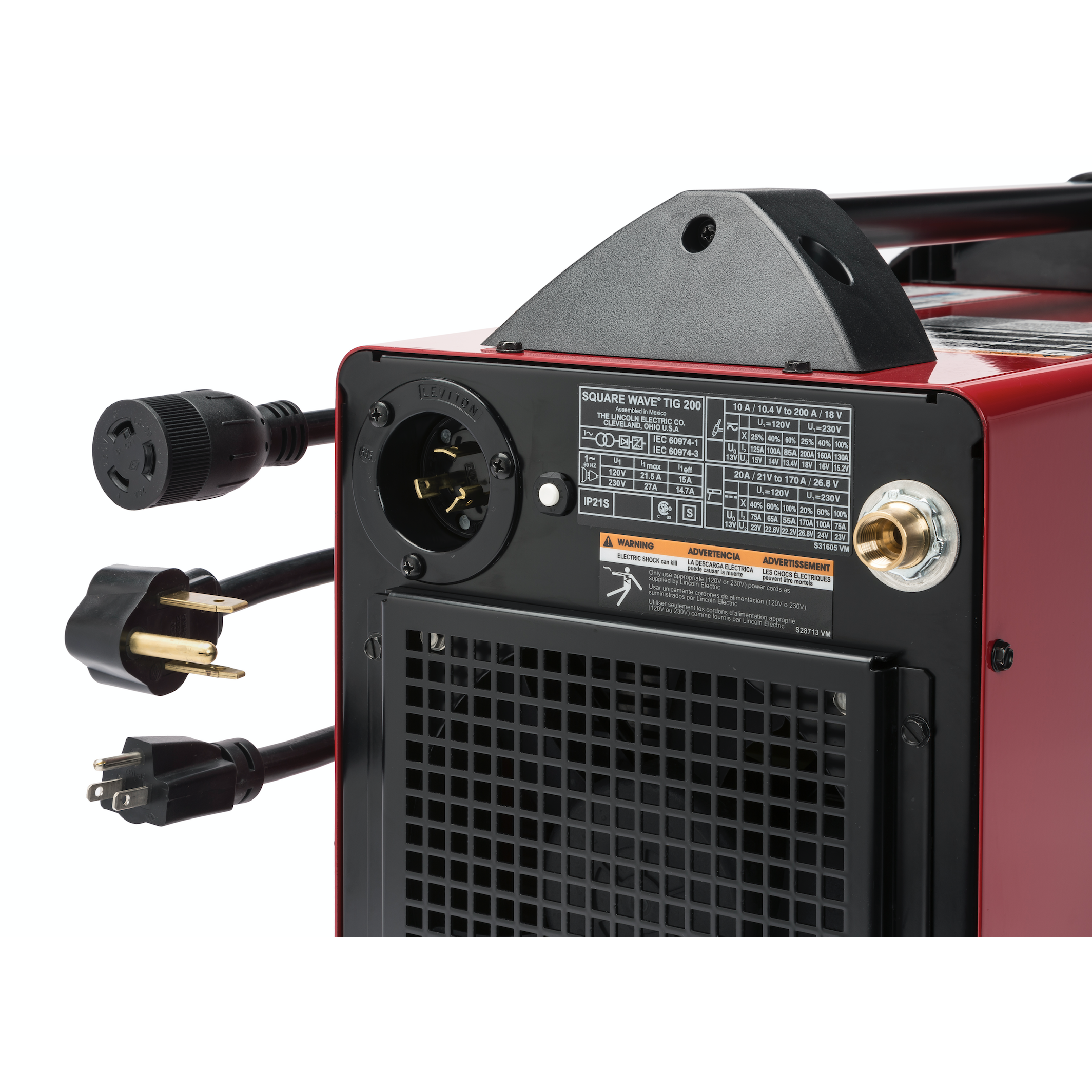

- 120/230V input cords
Specifications
Click the image below to view the full Spec Sheet.
Baker's Bundle Includes
- TIG Gloves size large
- Stainless Steel Brush
- E3 Tungsten Electrodes 3/32' 10 pack
- Sample Pack of Blue Demon Tungsten 3 pack
Review Video
Using the Square Wave TIG 200 is quite straightforward. First, plug it into a standard 120V or 230V circuit. Then, set up the machine according to your welding needs using the simple user interface. For TIG welding, attach the PTA - 17 Series 150 Amp Air - cooled TIG Torch. If you're welding aluminum, use the high - frequency start feature. For stick welding, use the stick electrode holder. When you're done, turn off the machine and unplug it. Make sure to store it in a dry place. Keep the TIG torch and other parts clean to ensure good performance. Also, check the cables regularly for any signs of damage. If you're using the pulse mode, start with a lower pulse rate and adjust it as you get more comfortable. Remember, this machine can weld up to 3/8' steel and 3/16' aluminum, so choose the right materials for your project.
