Description

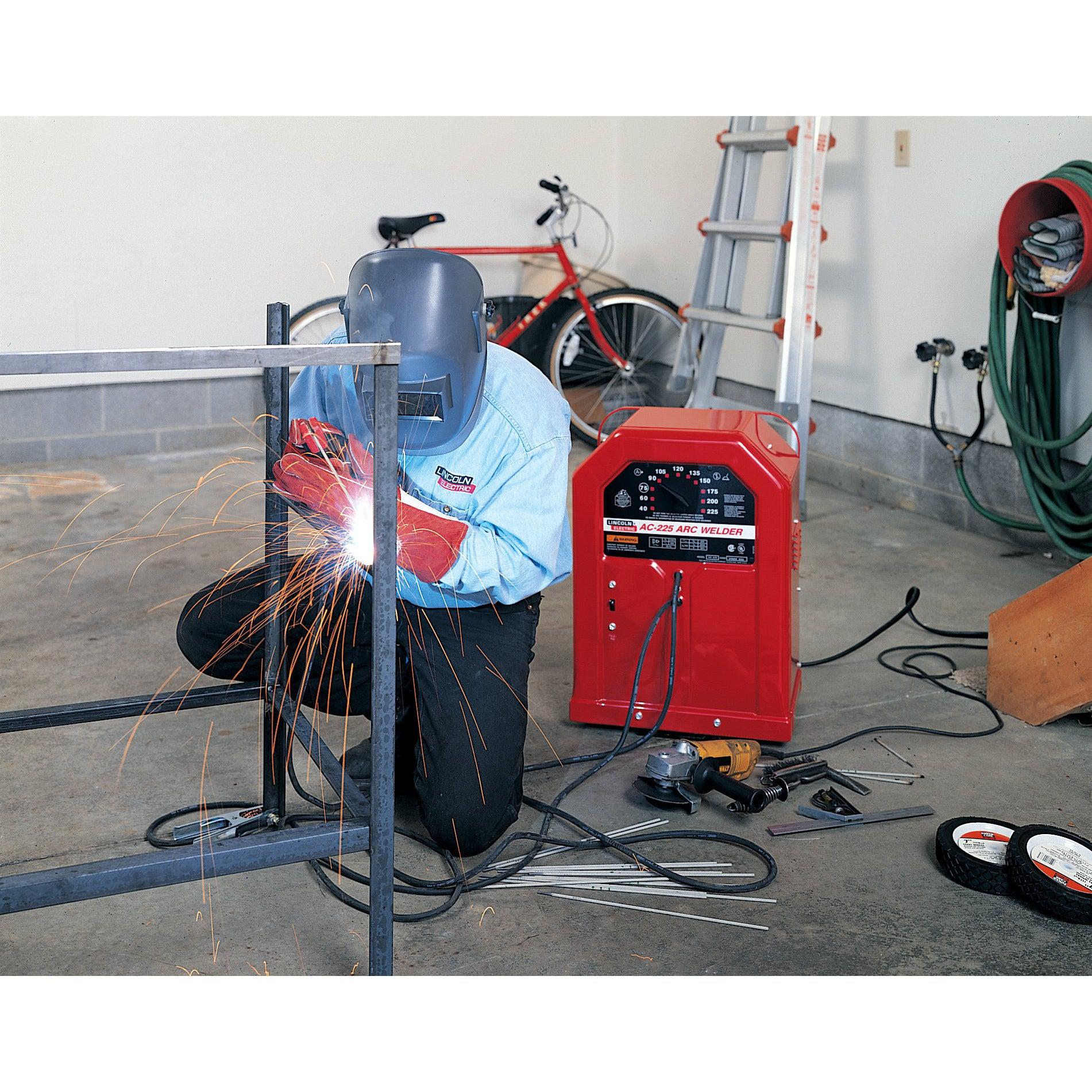

The Lincoln Electric AC225 is a world - famous tombstone stick welder. It creates a super - smooth AC arc, allowing you to weld a wide range of materials such as carbon, low - alloy, and stainless steels, plus cast iron.
Top Features
Simple operation: Use the 40 - 225 amp selector switch to quickly set the welding current.
Smooth arc: Makes the welding process a breeze.
225 amp AC output: Sufficient for 3/16” (4.8 mm) diameter general - purpose mild steel electrodes.
Easy installation: Comes with an attached input power cable.
It's NEMA rated, UL listed, and CSA approved for safety.
Input Power
Included with Product
Insulated electrode holder and cable.
Heavy - duty work clamp and cable.
Input cable with attached plug.
Specifications
Click the image below to view the full spec sheet
Using your Lincoln AC 225 stick welder is straightforward. First, make sure you're in a well - ventilated area. Plug in the input cable with the attached plug to a 230/1/60 power source. Use the 40 - 225 amp selector switch to set the right welding current according to the material and electrode you're using. For instance, when using 3/16” (4.8 mm) diameter general - purpose mild steel electrodes, the 225 amp AC output is sufficient. Hold the insulated electrode holder firmly and start welding. The smooth arc will make the process easier. When you're done, unplug the welder. Keep it in a dry place to avoid damage. Regularly check the cables and holders for any signs of wear. Also, ensure that the work clamp is firmly attached to the workpiece for a good connection. This will help you get the best results from your welder and keep it in good condition for a long time.
