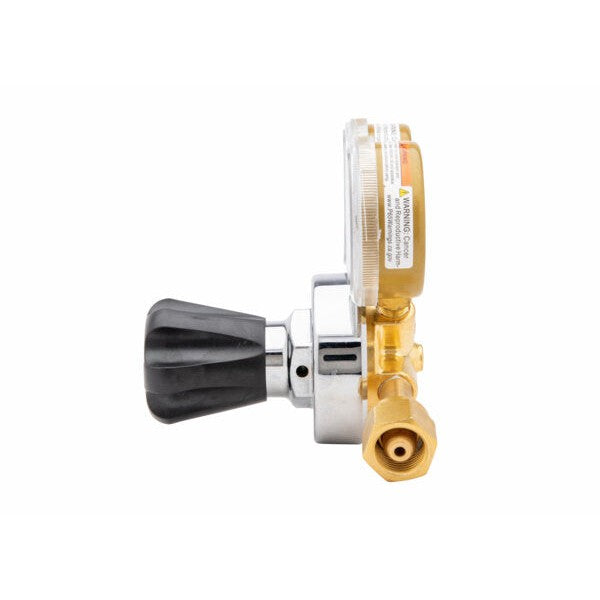

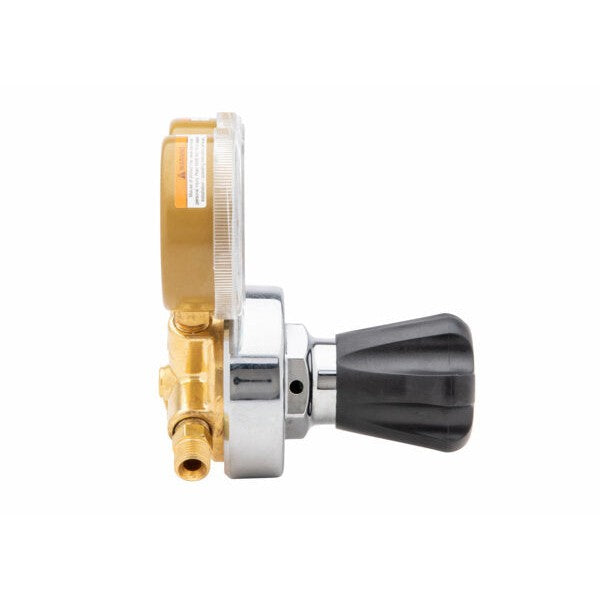

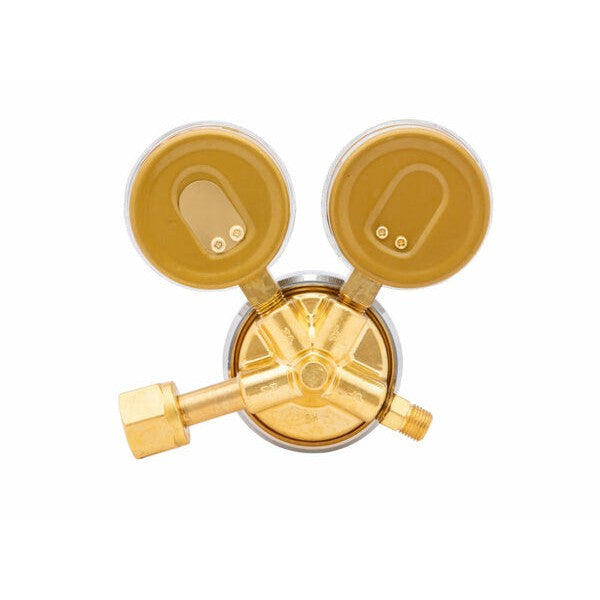

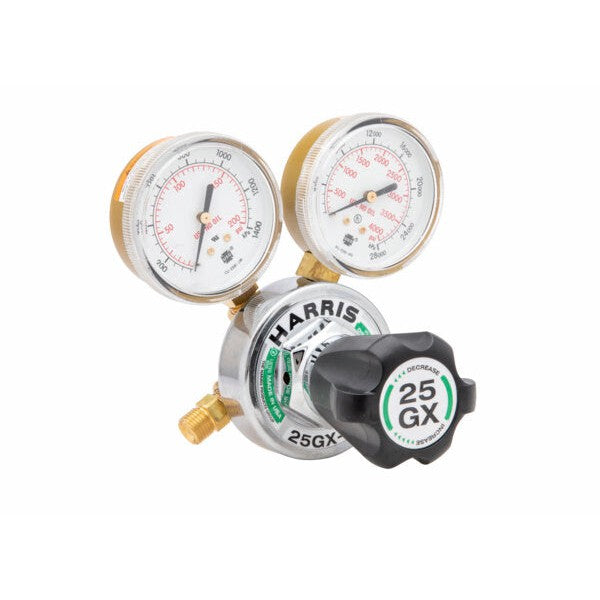

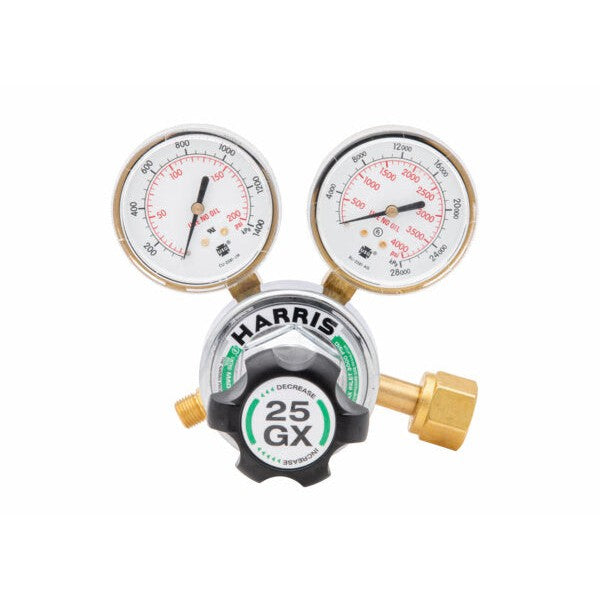

Harris 25GX-145-540 Single-Stage Pressure Regulator - 3000681

The Model 25GX single-stage regulator is the future workhorse of the Harris industrial line. It comes with large, easy-to-read gauges and an ergonomic adjusting knob that protects the mechanism from contaminants. Packaged in a clamshell for great point-of-purchase display. Key features include high-end features at an economical price, an ergonomic ABS plastic knob for easy handling and precise adjustment, a brass body and electroless nickel-plated brass bonnet for long service life, a neoprene diaphragm for better pressure control, 2.5 in. steel dual scale gauges that are easy to read, a one-piece encapsulated seat design with an internal filter to safeguard the PTFE Teflon® seat from particulate contamination, and it's UL® listed.

Using the Harris 25GX-145-540 Single-Stage Pressure Regulator is simple. First, make sure the inlet connection is properly attached to the oxygen source using the CGA 540 connection. Then, adjust the pressure using the ABS black plastic knob. The gauges will show you the supply and delivery pressures. For safety, always follow the CGA E - 4 and UL® guidelines. When not in use, store it in a dry place. To maintain it, clean the exterior regularly. Check the diaphragm and seat for any signs of wear. Consider using the recommended steel gauge guards (red for fuel and green for oxygen) to protect the gauges. If you notice any problems with pressure regulation or other issues, stop using it and get it checked by a professional.
