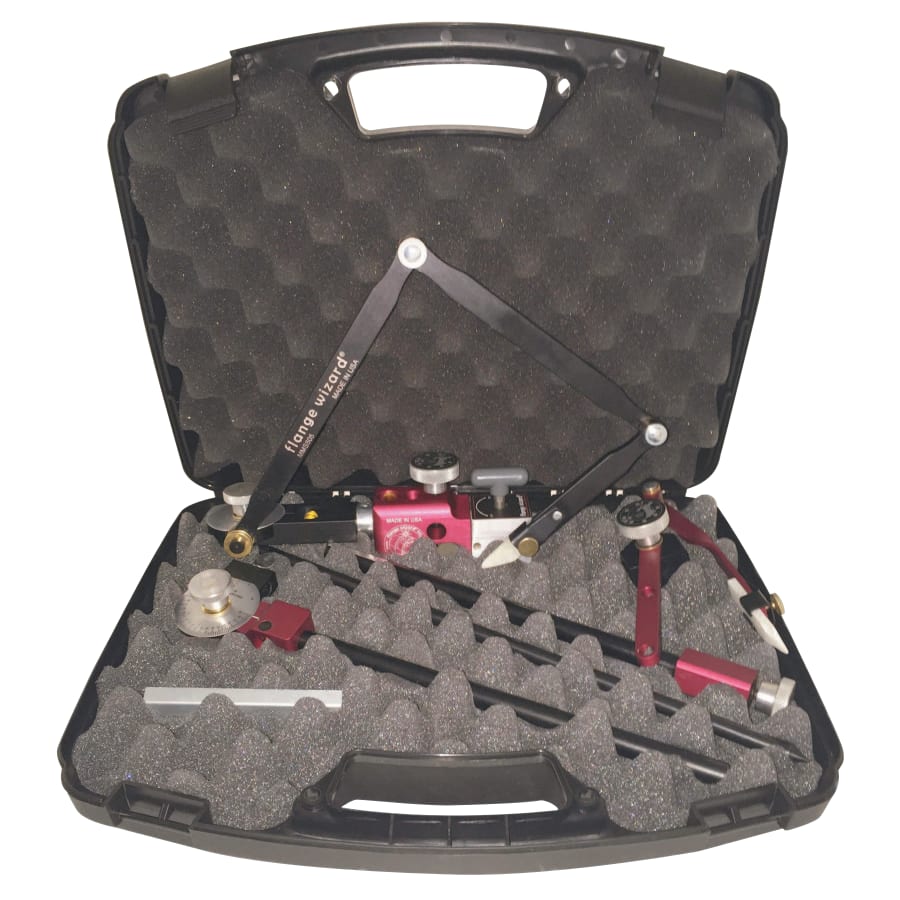

Flange Wizard Miter Marker Arm/MultiHole Image Tower Combo Case, 1.5 - 18 Pipe Cap - MMC505

Description

Product Details:

• One case includes two great tools: Miter Marker Arm Assembly #MSA505 and Multi-Hole Image Tower Assembly #MHA515.
• The Miter Marker Arm Assembly #MSA505 can reach over existing welds. It helps you set out angles or adjust pipe - fitting angles for special requirements.
• The marking arm has its own 360° rotating shaft with a built - in leveling system.
• The Multi - Hole Image Tower Assembly #MHA515 is perfect for laying out elongated holes in bulkheads for pipes at any angle.
• It makes creating odd - angled saddle holes (ellipse) for pipe branches a breeze.
• You can use it on flat materials or pipes to match laterals at compound angles or 90°.

Included with Product

• Miter Marker Arm Assembly - MSA505
• Multi - Hole Image Tower Assembly - MHA515

Using the Flange Wizard Miter Marker Arm & Multi - Hole Image Tower Combo Case is easy. First, take out the Miter Marker Arm Assembly #MSA505 when you need to work on angles. If there are existing welds, just telescope it out. Then, adjust the angles of the pipe - fittings as you like. The built - in leveling system of the 360° rotating shaft will keep it stable. For laying out elongated holes in bulkheads, use the Multi - Hole Image Tower Assembly #MHA515. It can handle pipes at any angle and makes creating saddle holes for pipe branches simple. When using it on flat materials or pipes, make sure to position it correctly to match laterals at the desired angles. As for maintenance, keep the tools clean after each use. Wipe off any dirt or debris. Store them in the provided case in a dry place to prevent rusting. Also, check the parts regularly for any signs of wear or damage. If you find any issues, get them fixed or replaced right away.
