Description

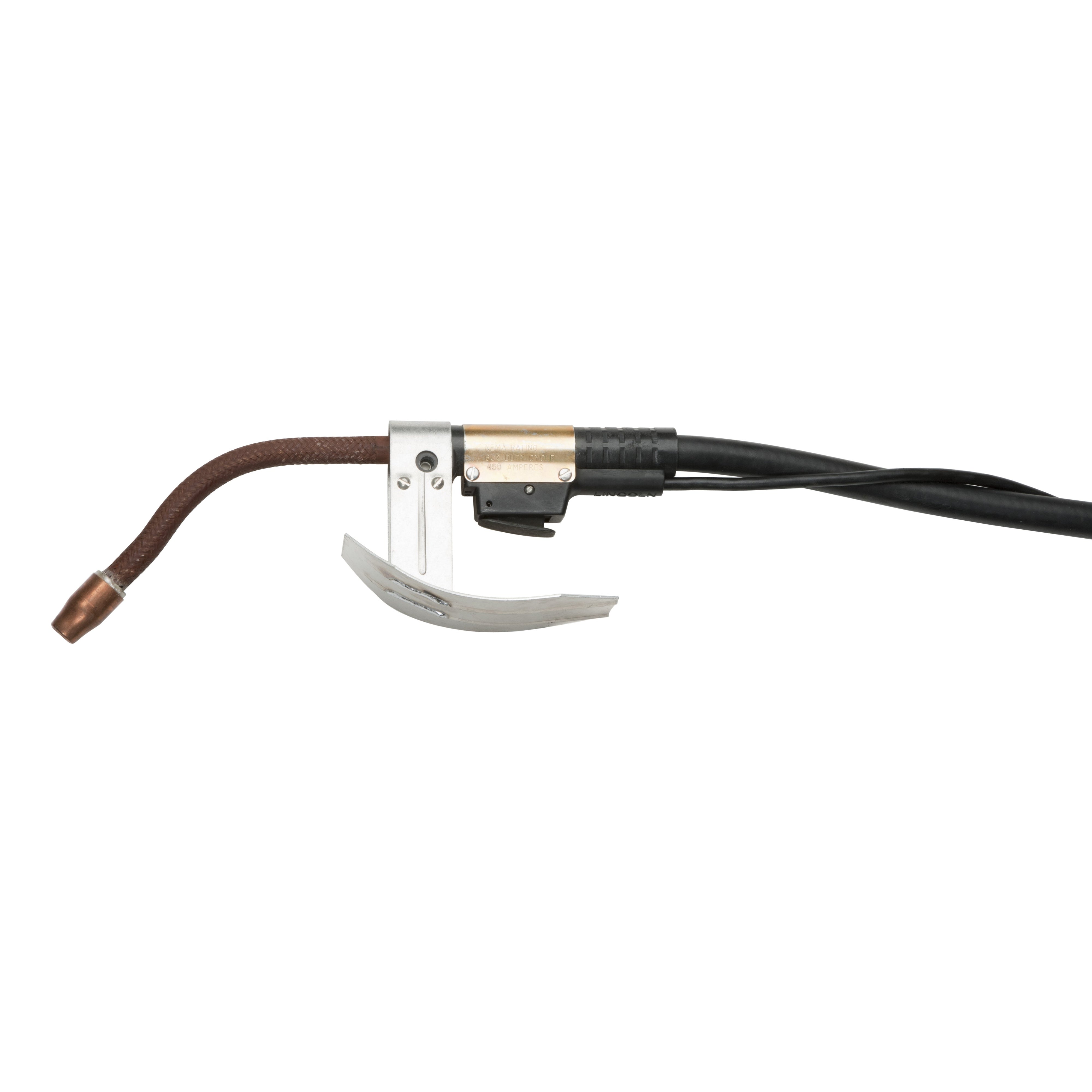

The Lincoln Magnum Classic Self - Shielded Welding Gun K115 - 1 is a top - notch welding tool rated for 450 amps at a 60% duty cycle. It comes with a 10 - foot cable and an 82 - degree gun tube. This gun is the industry standard for flux - cored arc welding. It's a semiautomatic air - cooled flux - cored self - shielded gun. It features a heavy - duty gun trigger switch for great electrical contact and long - lasting use, a reinforced rubber jacket to strengthen the cable, and alternate gun tubes for hard - to - reach welds. It's ready to feed 7/64 and .120 wire.
Features
- Rated 450 amps. Works with 3/32 - .120 in. (2.4 - 3.0 mm) diameter wires. You can choose 10 or 15 ft. (3 or 4.5 m) cable lengths and 82° or 45° gun tubes.
- Heavy - duty gun trigger switch ensures good electrical connection and long life.

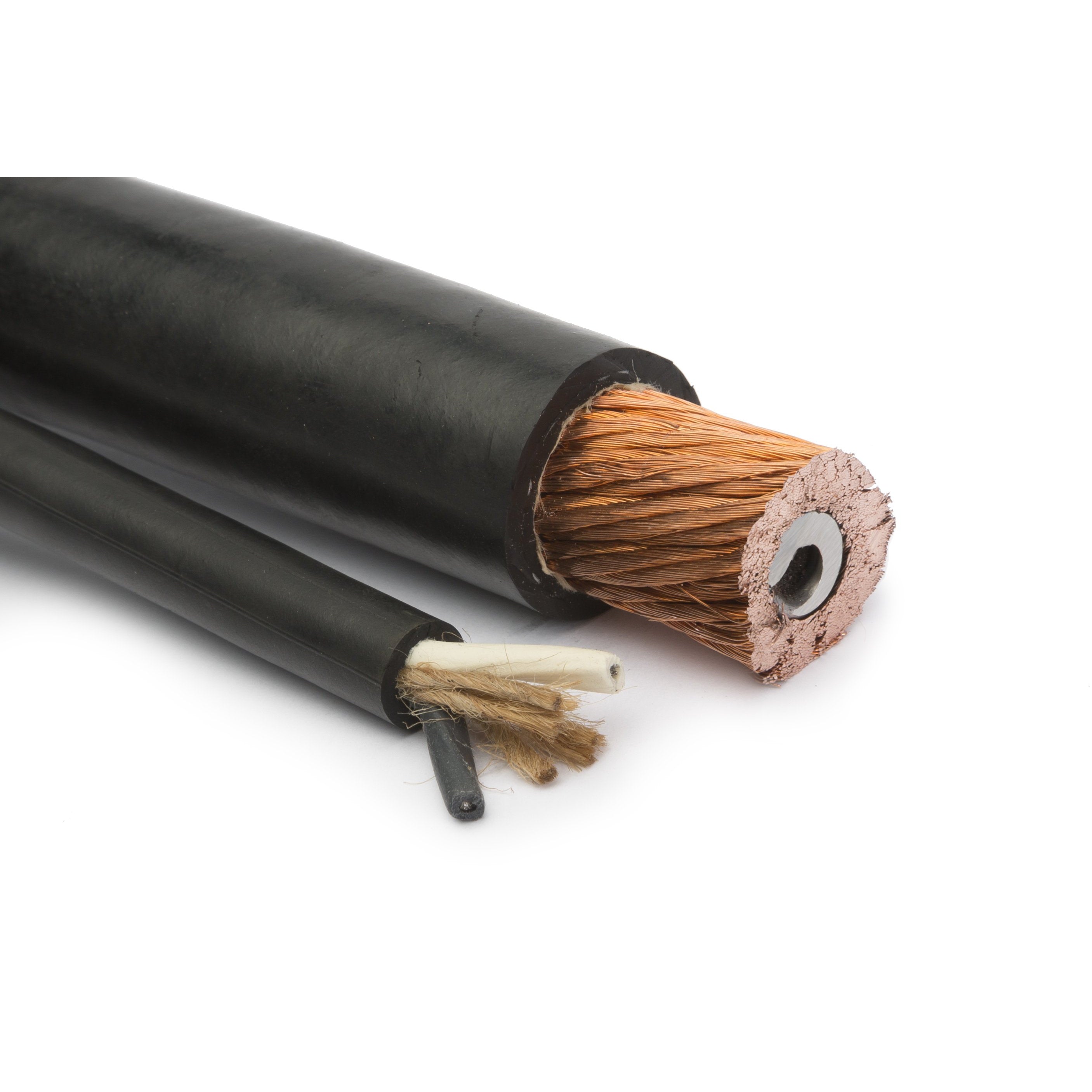

- Reinforced rubber jacket makes the cable stronger and more durable.
- Alternate gun tubes are available for guns to access hard - to - reach welds.
- All guns meet NEMA specification EW3 with a 60% duty cycle.
Specifications
Using this Lincoln Magnum welding gun is quite straightforward. First, make sure you've chosen the right cable length and gun tube angle according to your needs. Select the appropriate wire diameter (3/32 - .120 in. or 2.4 - 3.0 mm) for your welding job. When using the gun, press the heavy - duty trigger switch to start the welding process. The switch is designed to provide a good electrical connection, so just give it a firm press. For hard - to - reach welds, you can use the alternate gun tubes. Now, for the important stuff. Always follow the NEMA specification EW3 since the gun has a 60% duty cycle. This means don't use it continuously for too long; give it breaks to avoid overheating. Also, when handling the cable, be gentle even though it has a reinforced rubber jacket. To maintain the gun, clean it regularly. Wipe off any debris or welding spatter after each use. Check the trigger switch for any signs of wear and tear. If you notice any problems, replace the parts as needed. With proper use and maintenance, this welding gun will serve you well for a long time.
