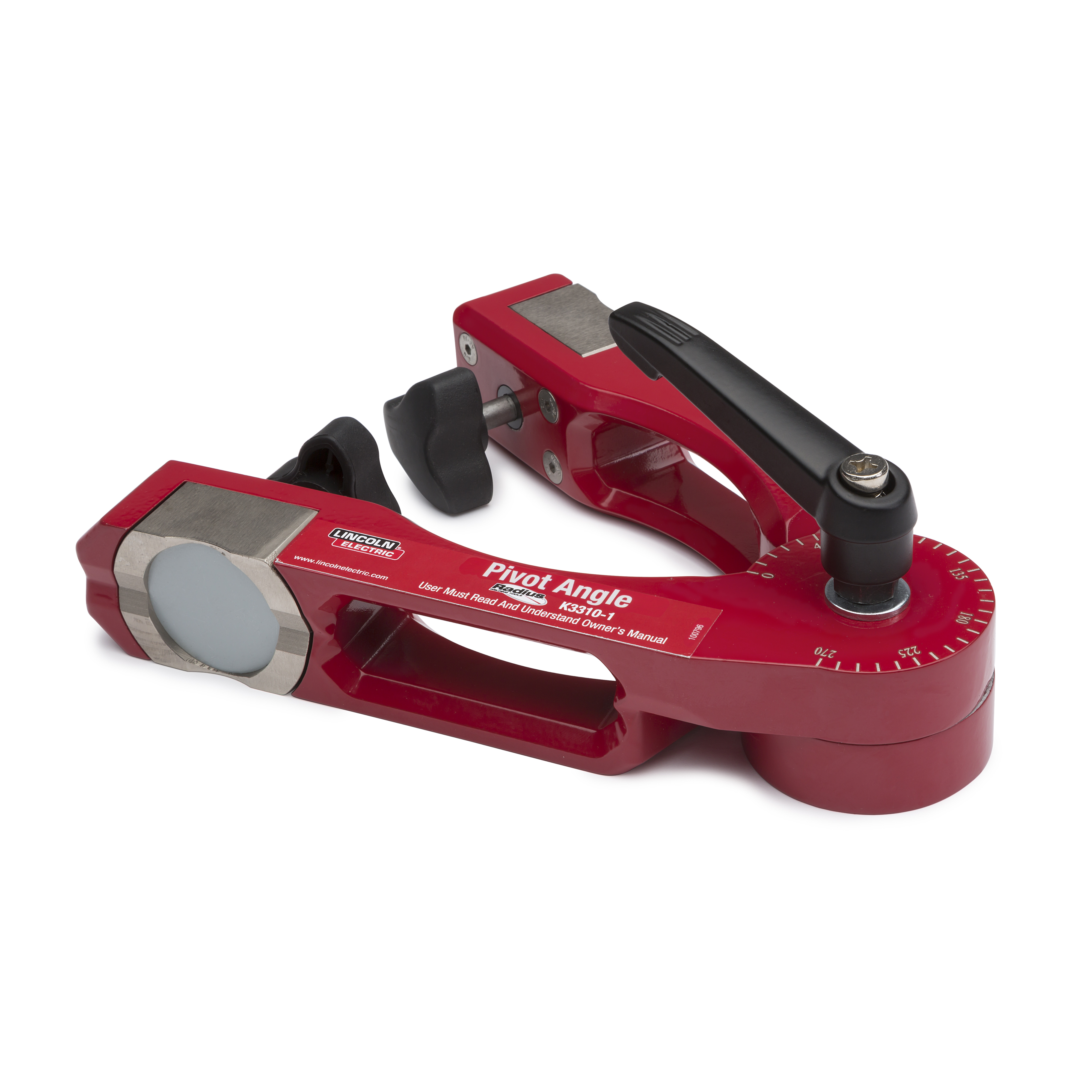

Lincoln Pivot Angle Magnetic Fixture - K3310-1

Description

Metalworking Angle and Lifting Devices with Switchable Magnetic Fields

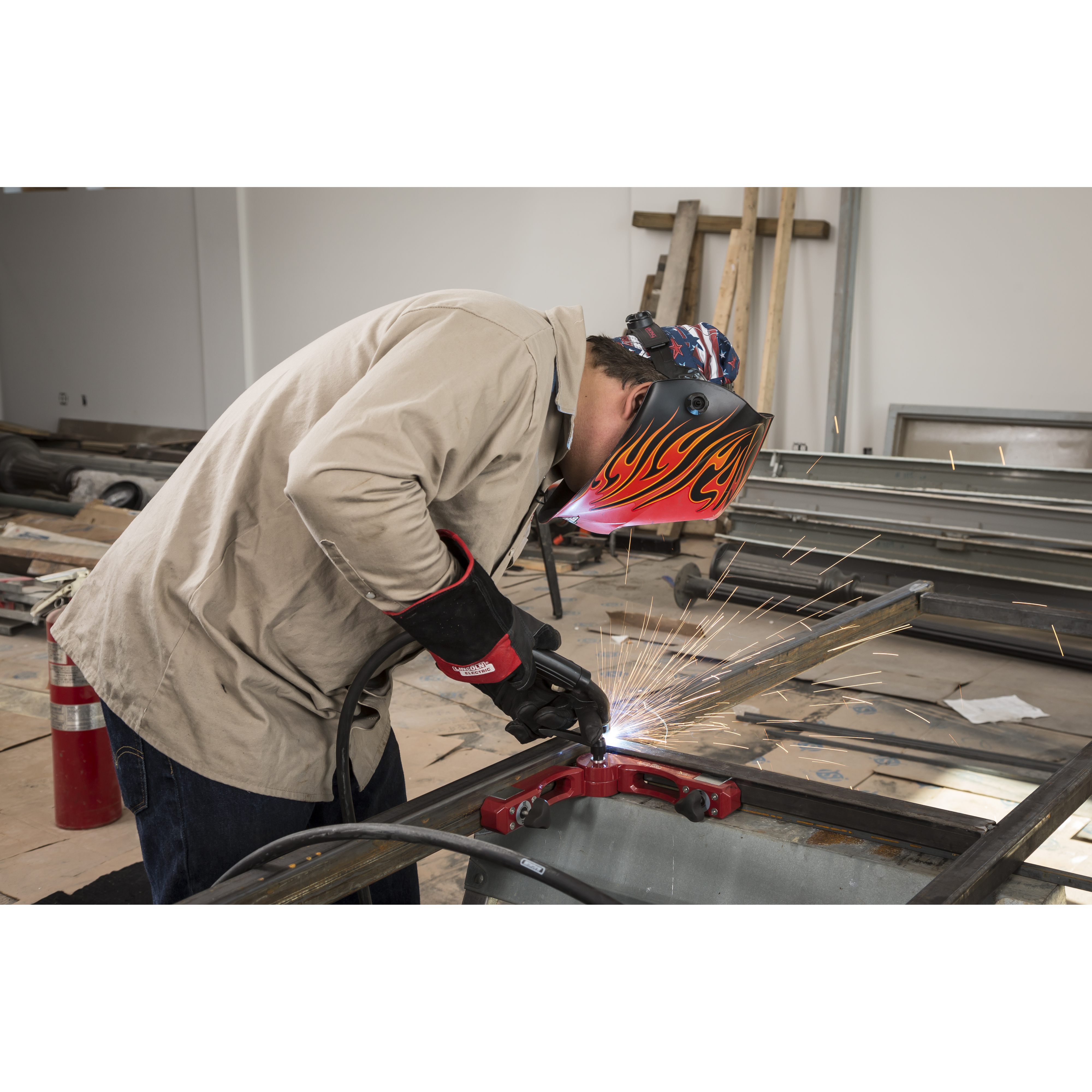

Lincoln Electric's magnetic fixturing tools are perfect for positioning steel for tacking or lifting sheet steel on the work table. They significantly enhance workplace safety by reducing hand contact with hot or sharp-edged steel.

• Multiple fixture models - Tailored for various material thicknesses and applications.
• Simple operation - A half - turn of the knob fully activates or deactivates the magnet, allowing for precise part positioning, removal, and tool cleaning.
• Fast setup - Easy to use and ready in seconds.
• Compact and light - weight - Ideal for confined spaces.
• Multi - angle surface - Facilitates positioning on flat or round stock.

Top Features

• Axis magnets on pivot arms have dual work surfaces, enabling the tool to attach to a table or wall while holding the workpiece.
• Single elbow lock for quick angle securing.
• Designed for repeated work at unusual angles.
• No battery or electricity needed.
• Work angles from 22° - 270° with a 200 - lb (90 - kg) magnetic force.

Specifications

Click to View Spec Sheet

Using this Lincoln magnetic fixture is a breeze. First, choose the right model based on your material thickness and application. Place the fixture on your work surface, whether it's flat or round. Turn the knob a half - turn to activate the magnet and position your steel piece precisely. When you're done with the part or need to clean the tool, just turn the knob again to turn off the magnet. Remember, this tool doesn't require batteries or electricity, so you don't have to worry about power sources. It's designed for repetitive work at uncommon angles, but always make sure the angle is within the 22° - 270° range. For maintenance, keep it clean after each use. Wipe off any metal shavings or debris. Since it's compact and lightweight, it's easy to store in tight spaces when not in use.
