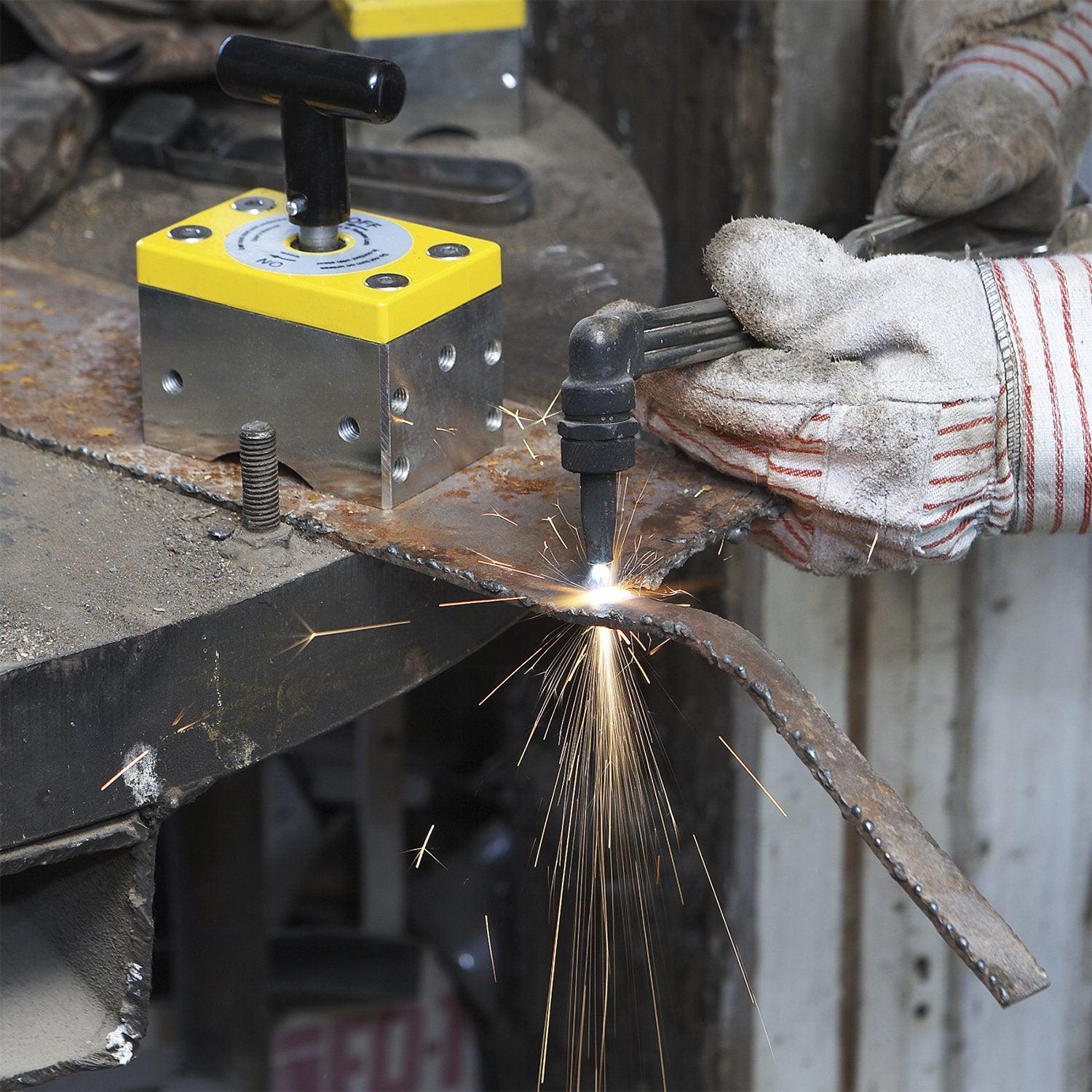

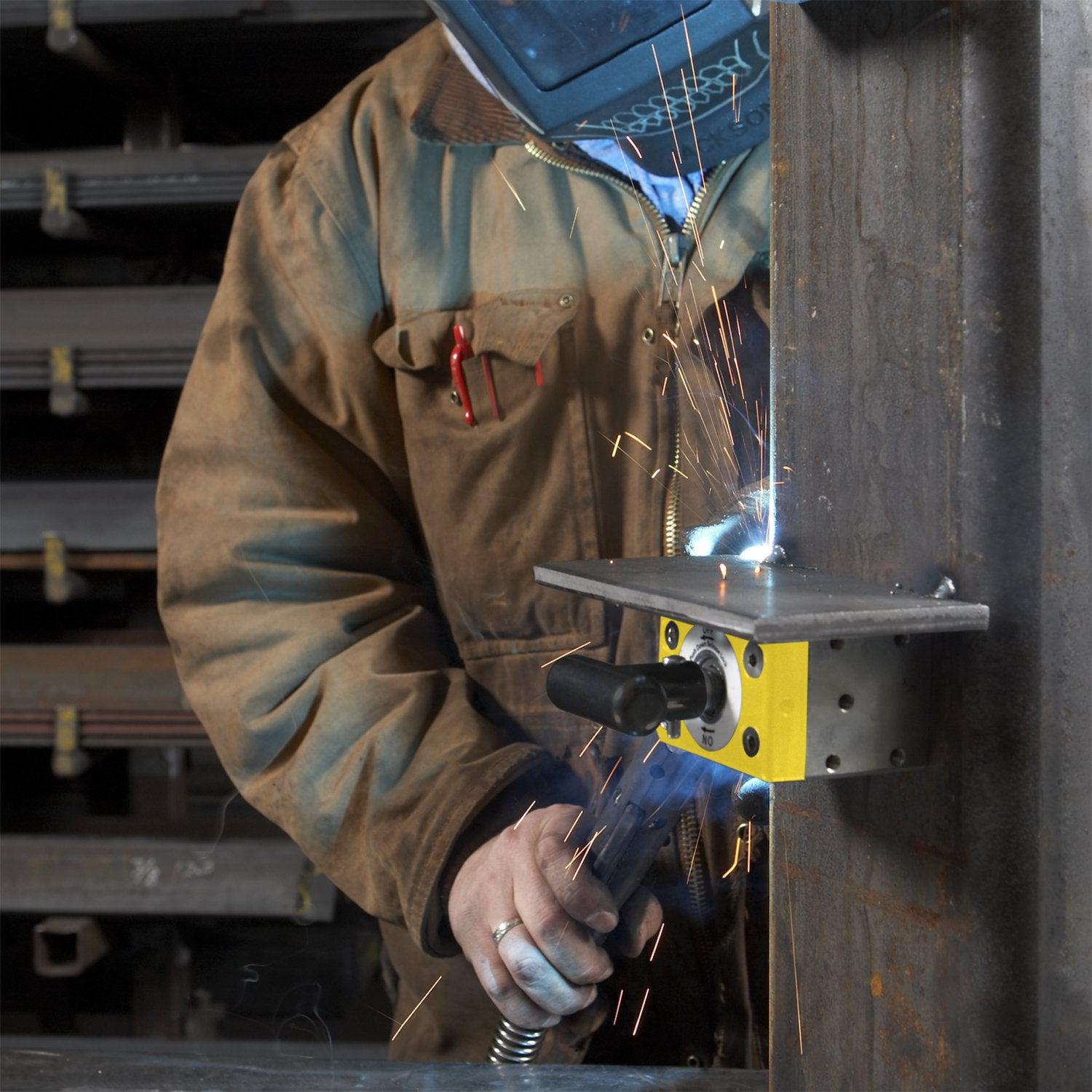

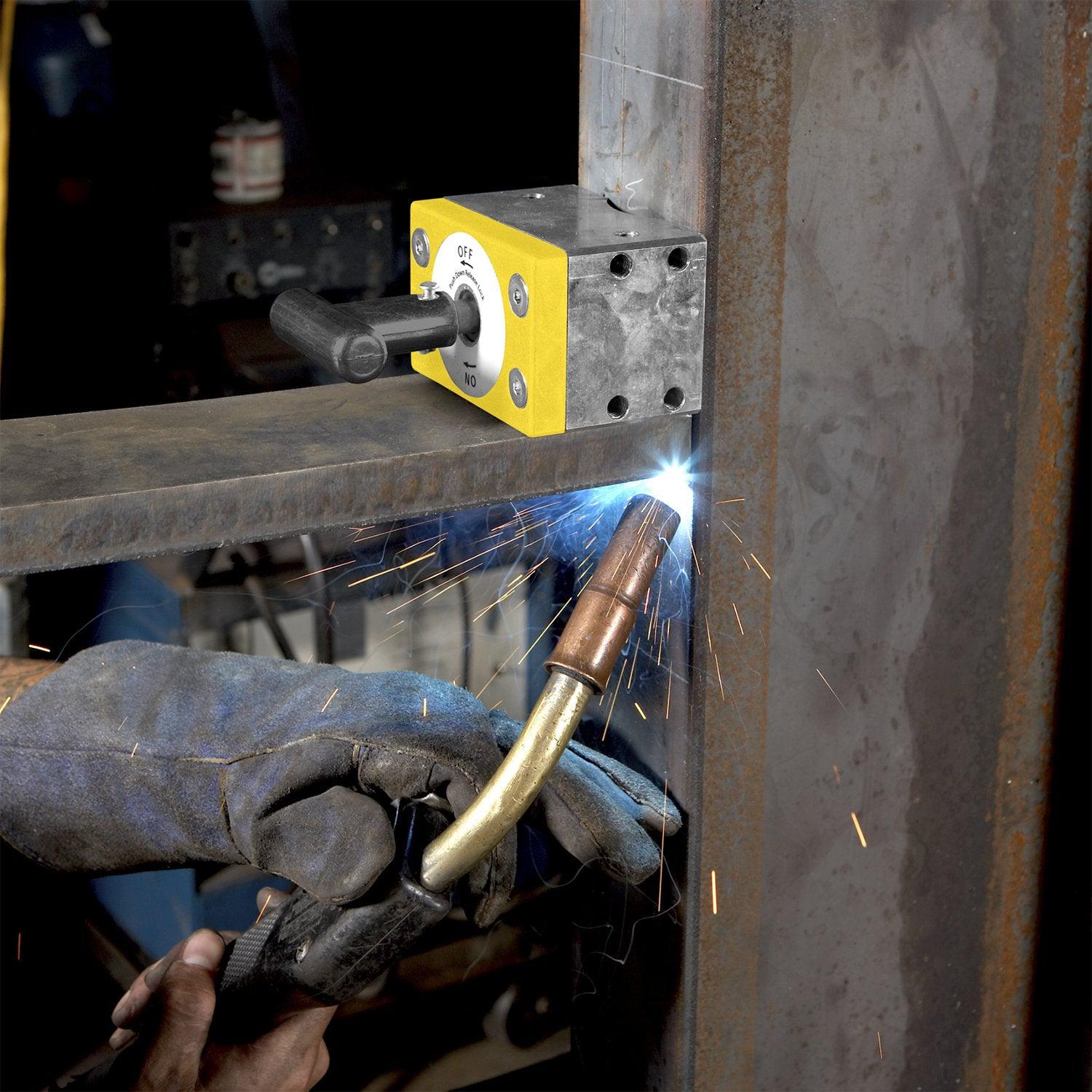

The MagSquare 1000 is an amazing On/Off magnetic workholding square. It can hold almost anything, anywhere. With a powerful 1000 lb (450 kg) hold force, it offers a new and easy way to hold steel in multiple planes. Features include On/Off Magswitch Magnet control for precise placement. It turns off completely, keeping clean. Machined at 90 degrees, it has a magnetic grip on 5 sides (strong on 3). The pipe notch can grip both flat and pipe materials. It allows super - fast set - ups and instant workholding. The on/off control makes precise positioning a breeze. Unlike traditional magnetic squares, it stays clean as debris falls off when off. You can even create your own fabrication jigs by mounting in M6 holes. Specifications: Max Breakaway is 1052 lbs (477.1 kg), Full Saturation Thickness is 0.5” (13 mm), 2:1 Shear Working Load is 148 lbs (67 kg), Product Weight is 7.9 lbs (3.58 kg), Dimensions are 4.3 x 2.8 x 5.8 in (76.2 x 71.1 x 147.3 mm), and Magnetic Pole Footprint is 72 mm x 108 mm.
Using the MagSquare 1000 is quite easy. First, decide where you want to hold your steel object. Turn on the On/Off Magswitch Magnet control to activate the magnetic force. You can then place the object on the square. Thanks to its 5 - side magnetic grip, it can hold various shapes well, especially with the pipe notch for pipes. When you need to re - position the object, simply turn off the magnet. This makes precise placement quick and easy. As for maintenance, since it stays clean when off, just let the debris fall off. If there's any stubborn debris, use a soft brush to clean it. Avoid hitting the square hard as it might affect its 90 - degree machining. And always check the M6 holes if you plan to mount it for creating fabrication jigs. Keep it in a dry place when not in use to maintain its performance.
